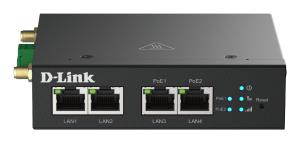

Wireless Router Dwm-550g Wi-Fi 6 M2m Vpn 5g Modern
ITCurry #: 12135342 | Article #: DWM-550-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
5G SA & NSA
Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.
Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Ethernet & 5G Redundancy
Seamless failover between Ethernet WAN and 5G for reliable connectivity.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Wi-Fi 6 AX1800
Drive Wi-Fi 6 to cover various portable and IoT device networking services.
Carrier Diversity and Network Redundancy
The DWM-550-G 5G M2M Router ensures continuous service with Dual SIM (Nano-SIM 4FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and 5G connections, ensuring you always have the best network access.
Secure Your Network with VPN
The DWM-550-G 5G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, GRE and WireGuard. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-550-G ensures that financial transactions and customer information are securely managed and transmitted.
Robust Build Quality
The DWM-550-G is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment.
| Design | |
| Device type | Cellular network router |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Ethernet LAN features | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| DHCP server | Yes |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 574 Mbit/s |
| Mobile network | |
| Data network | 4G, 5G, LTE |
| 4G standard | LTE |
| 5G standard | Sub6 NSA, Sub6 SA |
| Number of SIM cards | 2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Network address translation (NAT) | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| Port forwarding | Yes |
| Performance | |
| Antenna type | External |
| Antenna connector type | SMA |
| Antennas quantity | 6 |
| Power | |
| Power source type | DC |
| Input voltage | 12 - 36 V |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 125 mm |
| Height | 35 mm |
| Warranty | |
| Base Warranty | Non Non |
