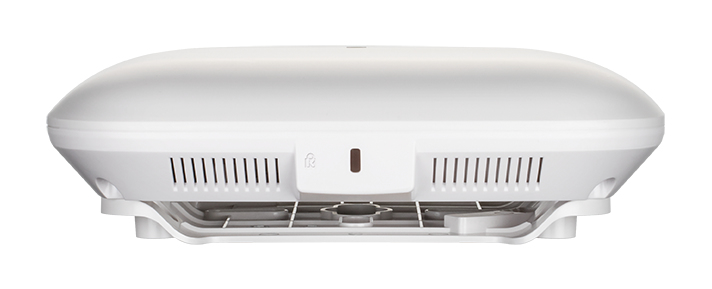

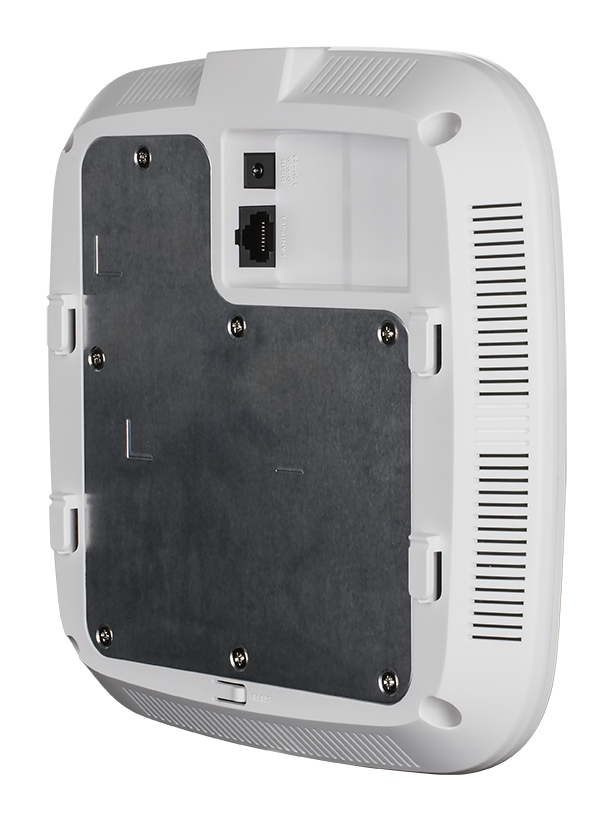

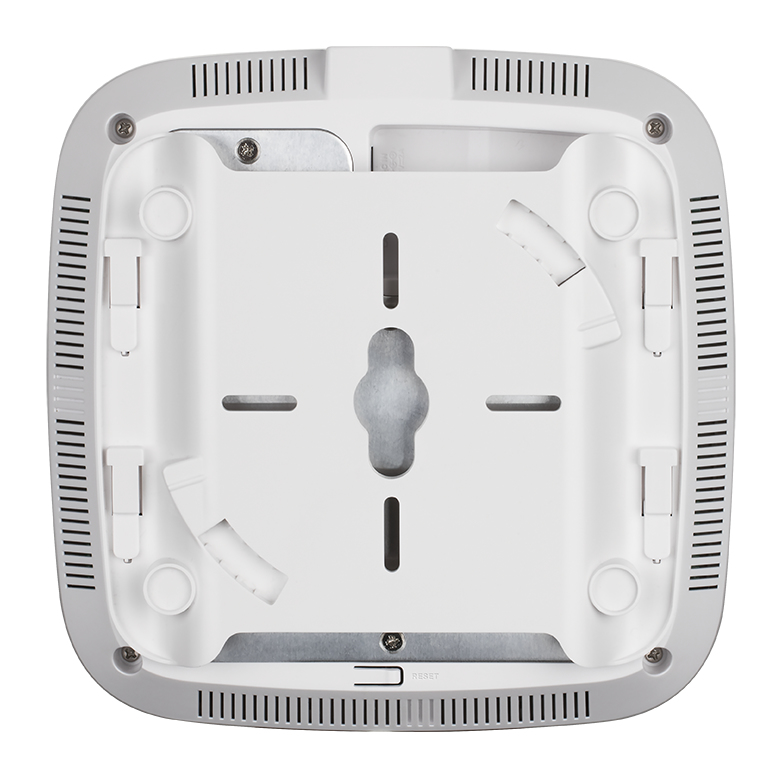

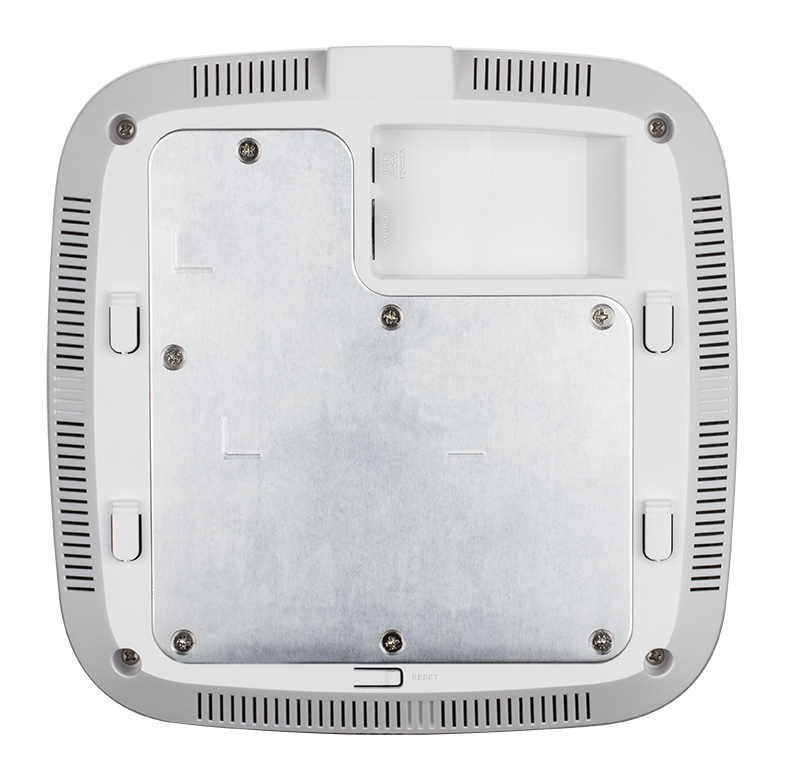

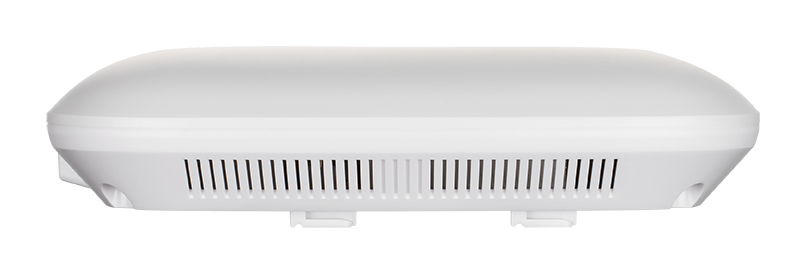

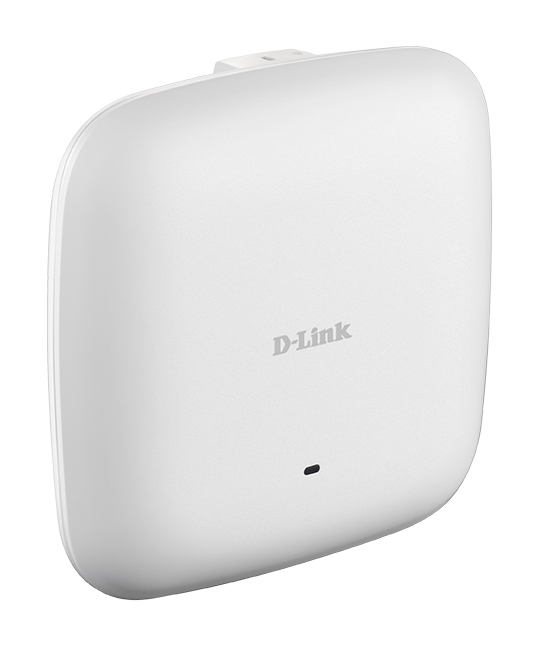

Wireless Access Point Dap-2680 Dual-band Poe Ac1750 Wave 2 White
ITCurry #: 12134669 | Article #: DAP-2680-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DAP-2680 Wireless AC1750 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilising the cutting-edge speed of 802.11ac Wave 2.
The DAP-2680 delivers maximum combined wireless signal rates of up to 1750 Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. To maximise total return on investment, the DAP-2680 can be configured to optimise network performance based on any one of its multiple operation modes.
For centralised network management, administrators can use D-Link’s free Nuclias Connect
software or Nuclias Connect Hub (DNH-100)5 to configure and manage multiple access points.
In addition to streamlining the management process, Nuclias Connect provides network
administrators with the means to verify and conduct regular maintenance checks remotely,
eliminating the need to send personnel out to physically verify proper operation.
Enjoy High-Performance Wireless Connectivity
Harness the power of IEEE 802.11ac Wave 2 wireless and experience wireless speeds of up to 1750 Mbps, perfect for high-demand business applications
MU-MIMO with Beamforming
Dramatically improves the wireless range and performance as well as allowing multiple devices to
connect simultaneously to the wireless network
Scalable, Flexible, Centralised AP Management
Centrally manage up to 1000 APs with Nuclias Connect, complete with a multi-tenant structure that
provides multi-layer management authority
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1750 Mbit/s |
| Frequency band | 2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| Transmitting power | 26.5 dBmW |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, SNMP, SNMPv3, SSH, SSID, SSL/TLS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| MAC address filtering | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 2 A |
| Design | |

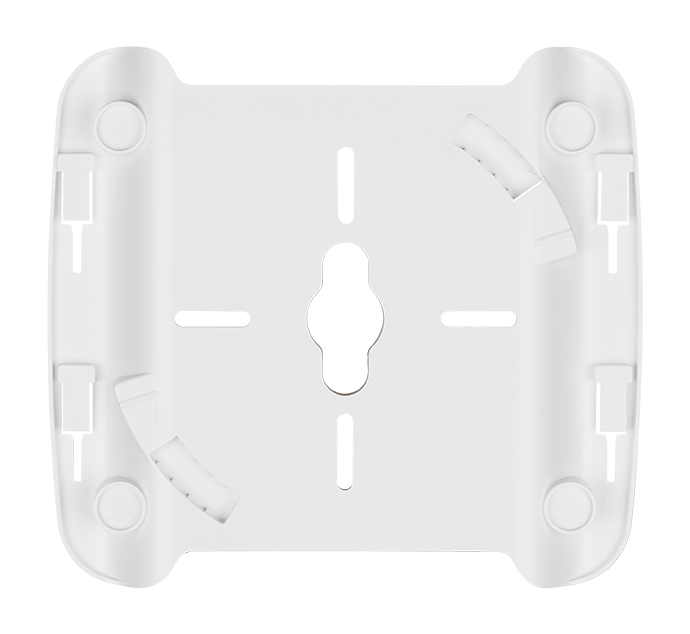

| Placement | Table, Wall |
| Product colour | White |
| LED indicators | Power, Status |
| Certification | FCC, UL, CE, FCC, UL |
| Internal | No |
| Antenna | |
| Antennas quantity | 3 |
| Antenna gain level (max) | 4.2 dBi |
| Technical details | |
| Shipping (inner) case length | 59.9 cm |
| Shipping (inner) case width | 29.3 cm |
| Shipping (inner) case height | 24 cm |
| Shipping (inner) case net weight | 3.44 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 311.4 kg |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Products per pallet (air) | 240 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.06 m |
| Pallet gross weight (sea) | 311.4 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 240 pc(s) |
| Pallet height (sea) | 2.06 m |
| Shipping (inner) case gross weight | 6.05 kg |
| Weight & dimensions | |
| Width | 190 mm |
| Depth | 190 mm |
| Height | 44.8 mm |
| Weight | 580 g |
| Packaging data | |
| Package width | 205 mm |
| Package depth | 270 mm |
| Package height | 112 mm |
| Package weight | 1.08 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 65 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
