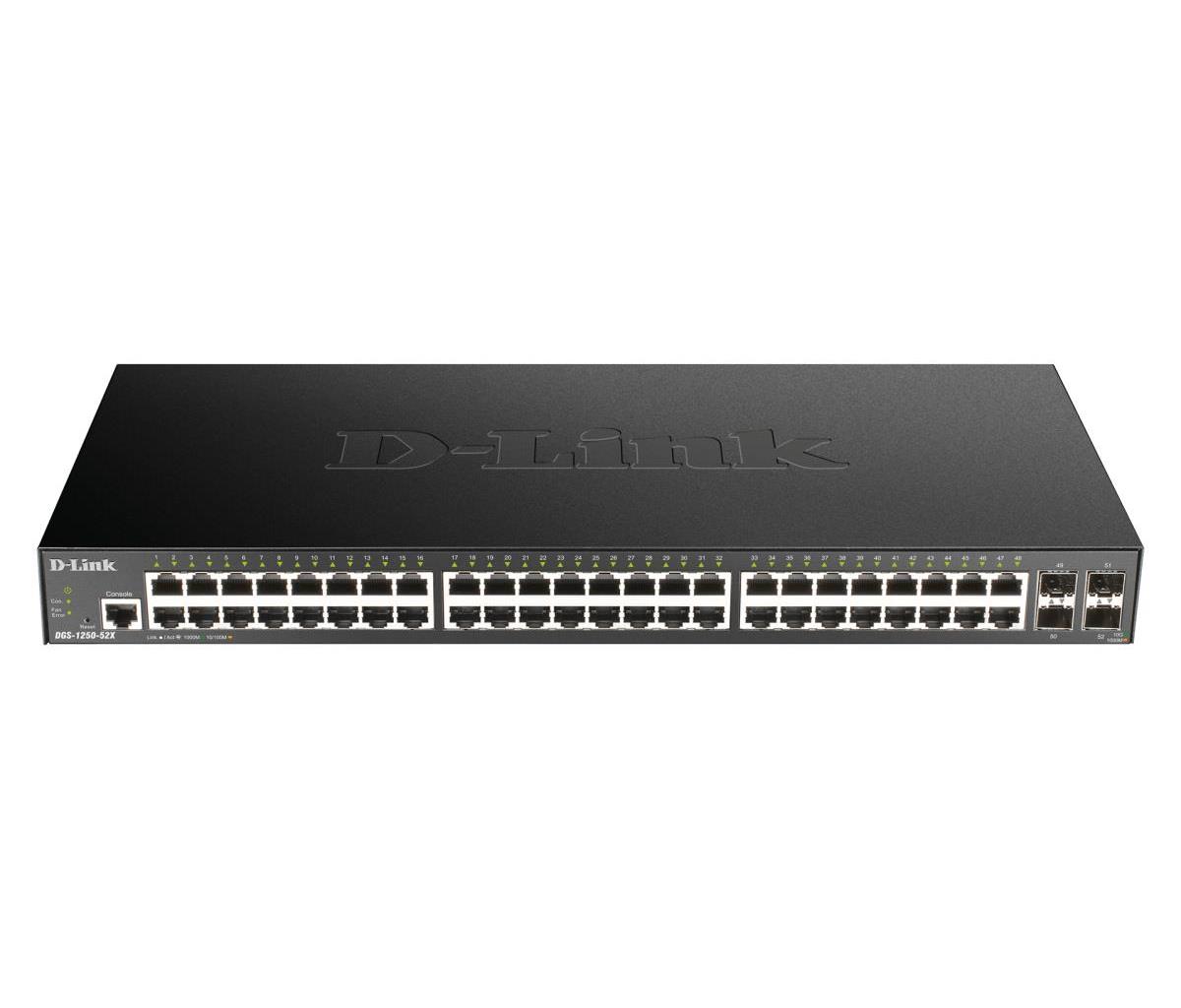

Switch Dgs-125052xe 52-port 10g Giagabit Smart Managed 4x
ITCurry #: 12135098 | Article #: DGS-1250-52X/E-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620, |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4094 |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE-LHX, 1000BASE-X, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX |
| Data transmission | |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| MAC address table | 32000 entries |
| Static route | Yes |
| Number of static routes | 124 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 768 |
| IGMP snooping | Yes |
| Security algorithms | EAP, LEAP, MD5, PEAP, SSH, SSL/TLS, TTLS |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed |
| Electromagnetic compatibility | CE A, VCCI A, FCC A, IC, BSMI |
| Performance | |
| Memory type | DDR3-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 64 MB |
| Noise level | 50.7 dB |
| Mean time between failures (MTBF) | 589984.72 h |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 51.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 174.592 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 3.01 kg |
| Packaging data | |
| Package width | 351 mm |
| Package depth | 565 mm |
| Package height | 91 mm |
| Package weight | 4.28 kg |
| Certificates | |
| Certification | CB, UL, BSMI, CCC |
| Warranty | |
| Base Warranty | Non Non |
