Router Dwp-1010 Kit 5g Ax1500
ITCurry #: 12135236 | Article #: DWP-1010/KT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

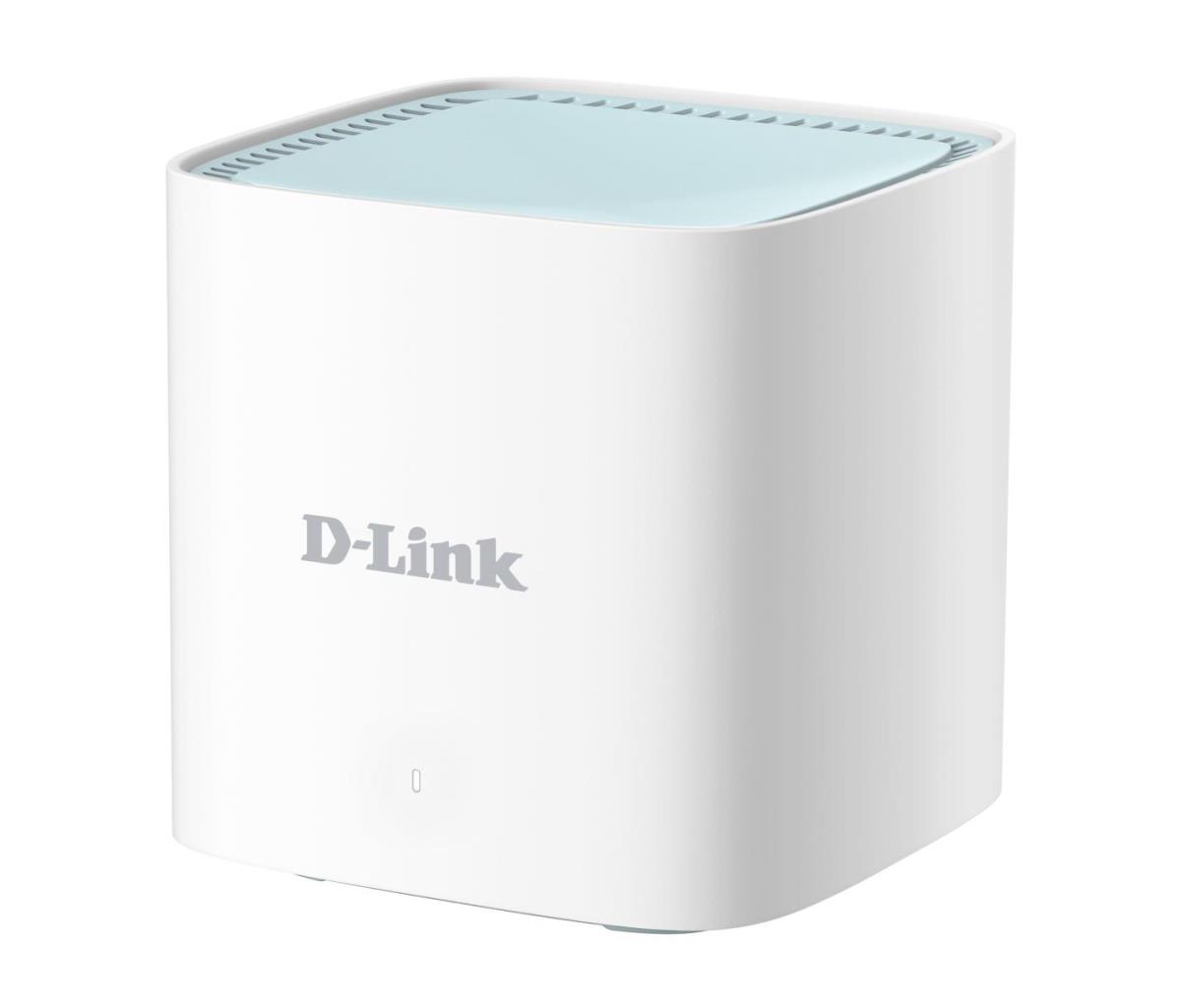

AX1500 Wi-Fi 6
Designed for today’s device-dense homes. Ideal for 4K streaming, VR gaming, video calling, and keeping all your smart home devices connected
Easy Setup
Setup wizard to guide you through the configuration process
High-speed 5G Internet
Connect with next-generation 5G speeds up to 3.4 Gbps and experience lightning-fast downloads, lower latency and reduced congestion.
OFDMA
Small data packets destined for multiple devices are transmitted together and never have to queue up again. Perfect for bandwidth-hungry devices battling for bandwidth.
Parental Controls
Assign devices to family members’ profiles to individually block devices and websites, set schedules for access, and turn off Wi-Fi.
Easy install with PoE
Power your Wi-Fi with 5G
Enjoy next-generation 5G connections at speeds up to 1 Gbps and Wi-Fi on all your connected devices throughout your home, office or holiday home.
Perfect for areas with limited or no access to fixed internet
DWP-1010/KT is a complete solution for areas where the offer of fixed Internet access is technically unsatisfactory or non-existent. Just insert your 5G SIM card into the antenna slot and all your devices will be able to access the Internet via the M15 router placed anywhere in your home.

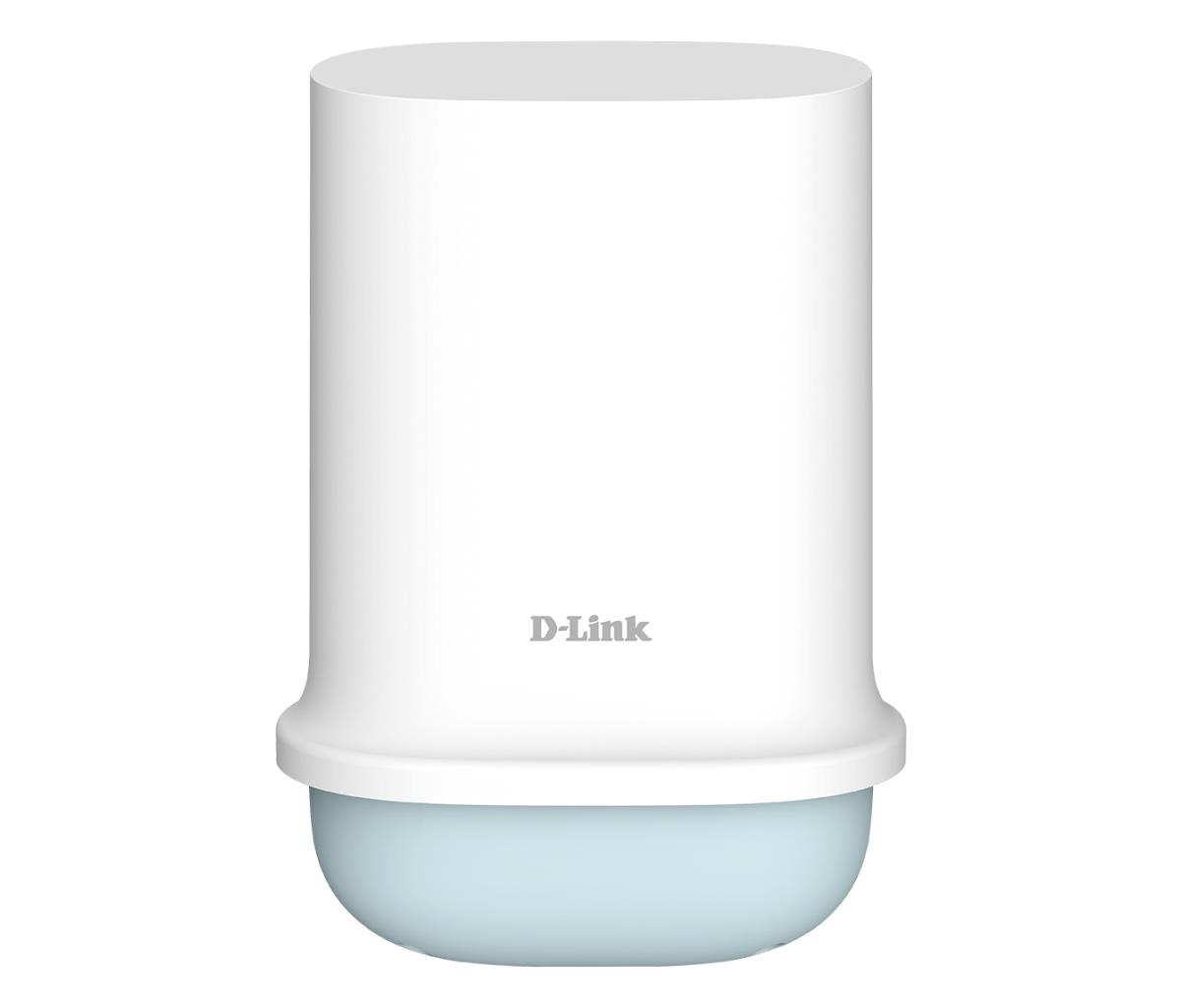

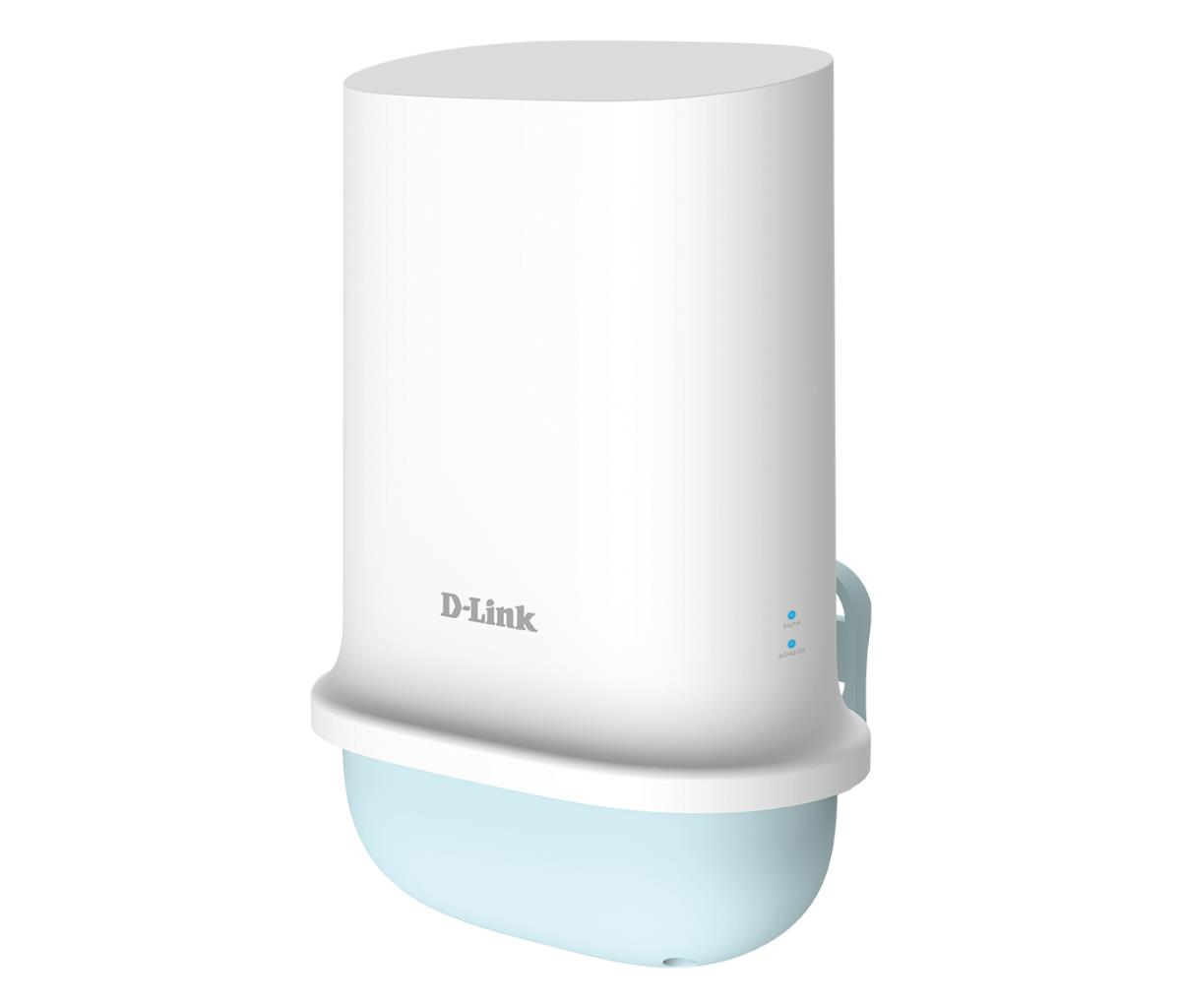

The external 5G modem is an efficient directional antenna with a built-in Qualcomm SDX62 module, which allows you to establish a fast and reliable connection with a bandwidth of up to 1 Gbps. The high-gain antenna is an ideal solution in areas underserved by traditional broadband networks and often at the edge of mobile networks.
Withstands the weather
Built with a rugged IP67 weather-resistant housing to help protect the DWP-1010/KT from extreme weather and provide clear reception, so you can continue to receive the best connectivity possible — come rain or shine.
Simple installation with Power over Ethernet (PoE)
DWP-1010/KT is equipped with a 1 Gbps Ethernet LAN port with PoE support, thanks to which a single cable is used to transmit data and power the device. There is no need to use additional power cables, there is no cable tangle and the configuration is more convenient.
Easy to install, use and manage

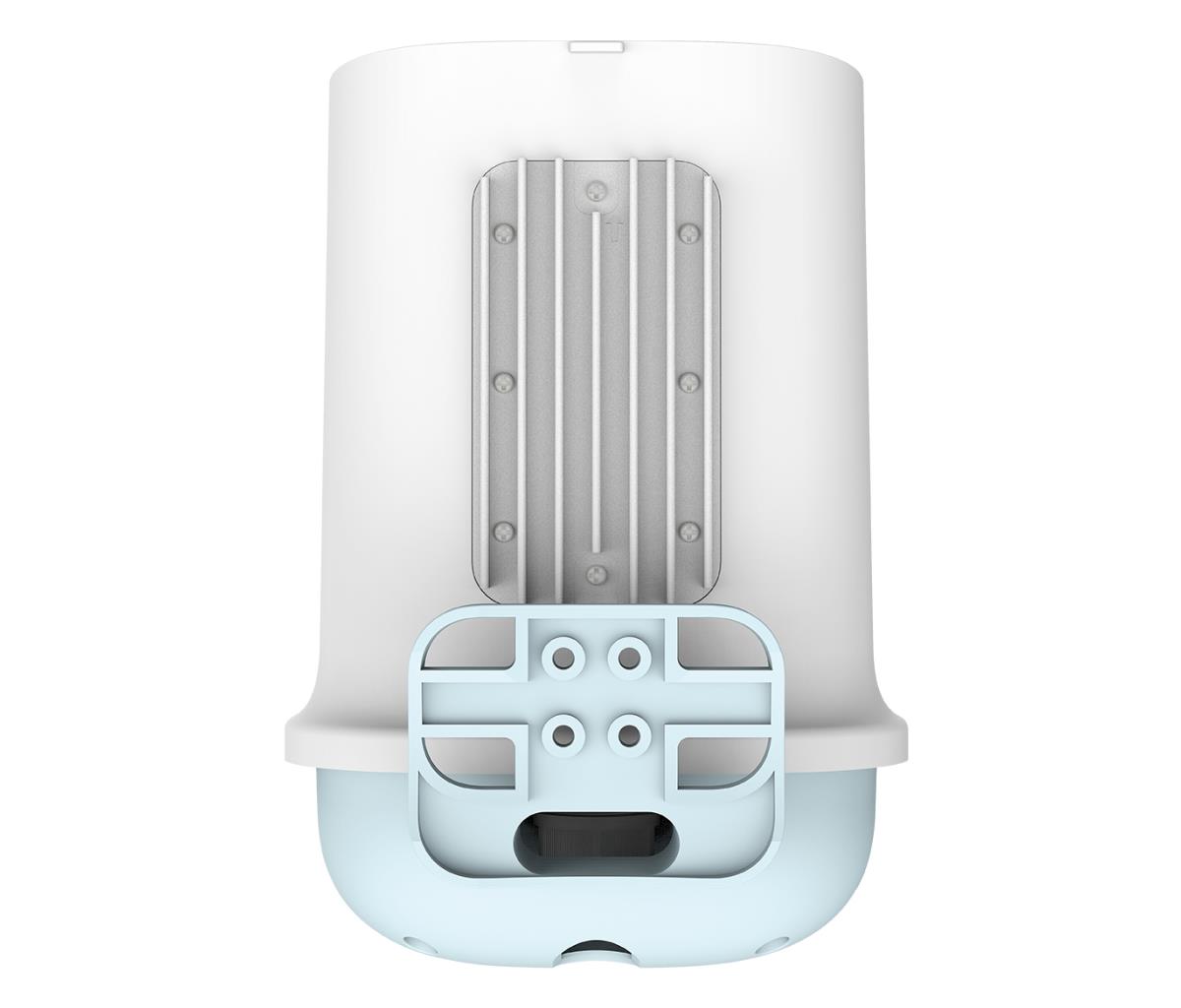

DWP-1010/KT can be mounted on a pole or attached to a wall to obtain the best connection quality. The free D-Link Falcon or EZ Site-Survey mobile app allows you to select the best DWP-1010/KT setting for the strongest 5G signal. This will ensure that users enjoy the best download and upload speeds.
| Design | |
| Product type | Mesh system |
| Product colour | White |
| LED indicators | Power, Status |
| Antenna type | Internal |
| Reset button | Yes |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 600 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Security algorithms | WPA-Personal, WPA2-Personal, WPA3, WPA3-Personal |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Tagged VLAN | Yes |
| Mobile network | |
| Modem chipset | Qualcomm SDX62 |
| Mobile network generation | 5G |
| 4G standard | LTE |
| 5G standard | NR, Sub6 |
| SIM card type | MicroSIM |
| Features | |
| WPS push button | Yes |
| Quality of Service (QoS) support | Yes |
| Firewall security | DoS, Stateful Packet Inspection, Anti-spoofing Checking, IP/MAC Address Filtering, 1 x DMZ |
| MU-MIMO technology | Yes |
| International Protection (IP) code | IP67 |
| Ports & interfaces | |

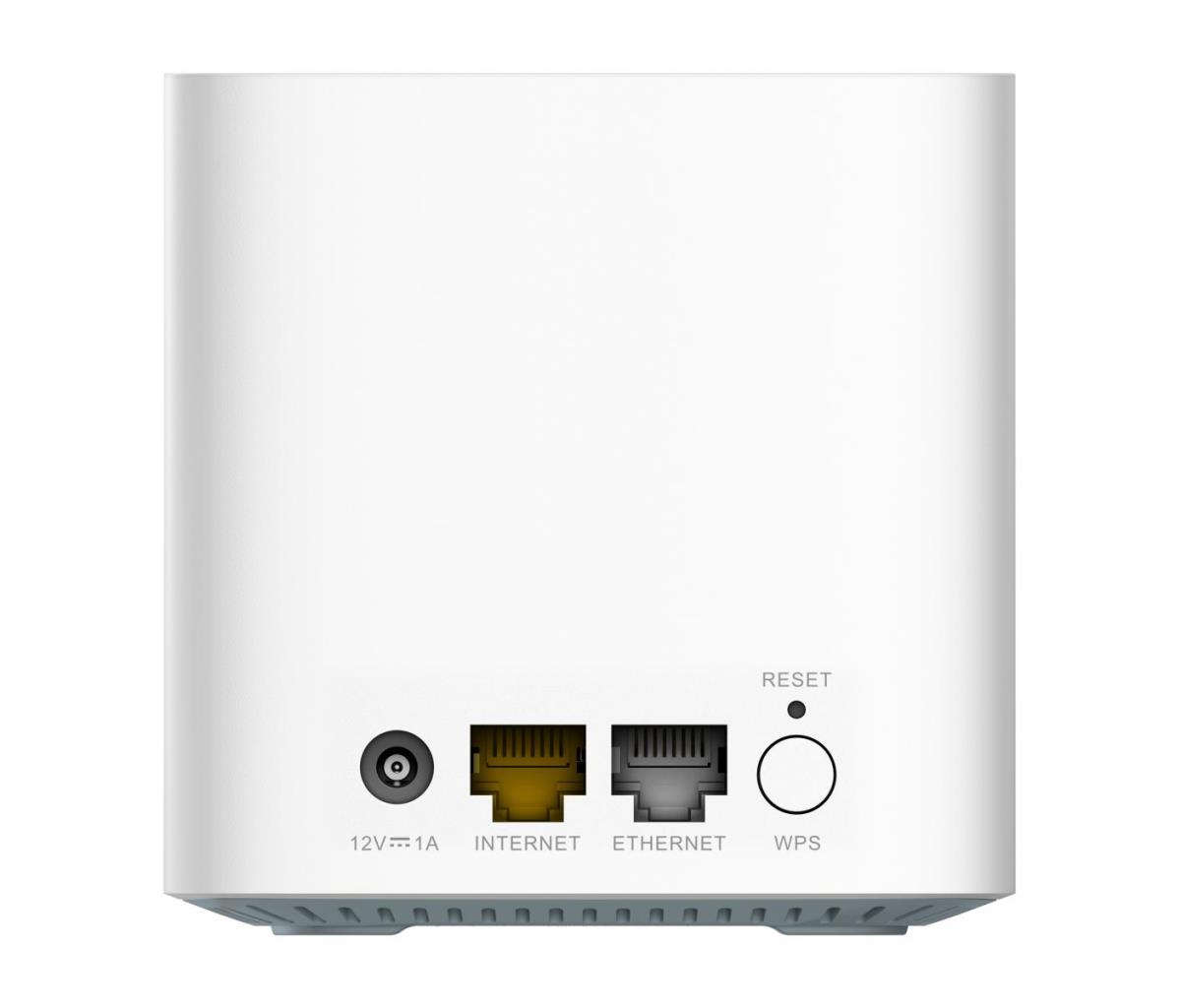

| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) | Yes |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
| Power | |
| Power consumption (typical) | 12 W |
| Power protection features | Surge protection |
| Surge protection voltage | 6 kV |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Indoor unit width | 9.2 cm |
| Indoor unit depth | 9.2 cm |
| Indoor unit height | 9.3 cm |
| Indoor unit weight | 200 g |
| Outdoor unit width | 14.5 cm |
| Outdoor unit depth | 10.5 cm |
| Outdoor unit height | 21 cm |
| Outdoor unit weight | 760 g |
| Packaging content | |
| Number of products included | 2 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
