Flex Tabletop - Small Room Conference System - Zoom Rooms Software (International)
ITCurry #: W4882084 | Article #: UC-MM30-NC-Z-I-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The UC-MM30-NC-Z-I Crestron Flex tabletop conferencing system provides a small room conference solution for use with Zoom Rooms® software. It supports up to three video displays1 (not included) and features a Crestron Flex tabletop conference device, UC bracket assembly, PoE Injector, and cables.
Native Zoom Rooms® Software Experience
The UC-MM30-NC-Z-I system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (UC-2-Z-I) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.
Simplified Deployment

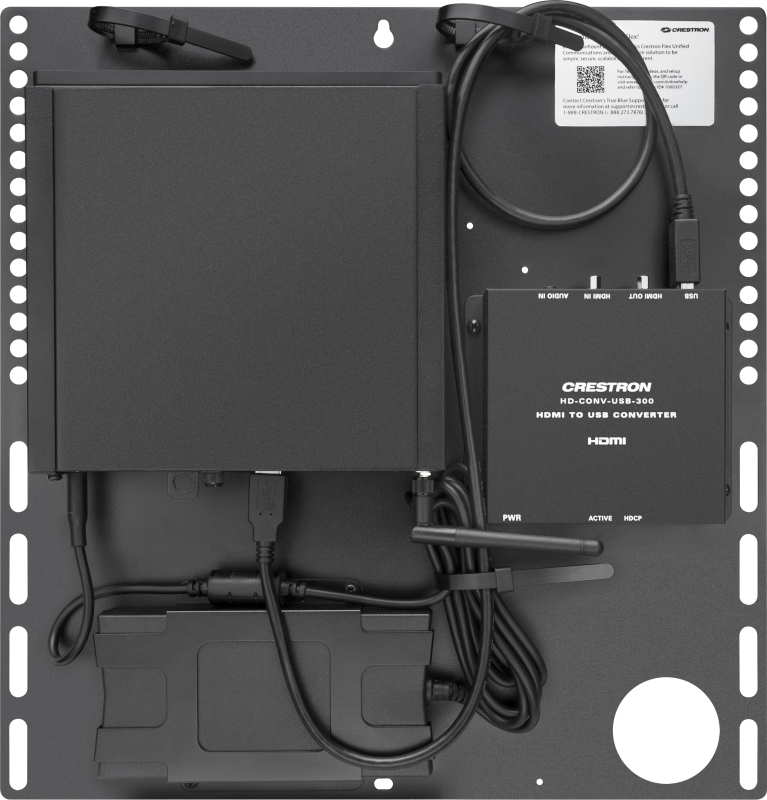

To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The bracket comes supplied with either a HD-CONV-USB 200 or HD-CONV-USB-300 convertor. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High-Definition Video Conferencing
High-definition video conferencing is supported by using the following Crestron 1 Beyond cameras: IV-CAMHK-12-SLVR-1B, IV-CAM-P12 and IV-CAM-P20. Zoom Rooms software certified third-party cameras are also compatible with the system.
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud® service is an IoT cloud-based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Premium-Level Support
Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Performance | |
Number of persons | 1 person(s) |
On Screen Display (OSD) languages | English |
Product colour | Black |
Product type | Personal video conferencing system |
Video | |
HD type | HD |
Maximum video resolution | 1280 x 800 pixels |
Supported video modes | 1080p |
Supported graphics resolutions | 1280 x 800 |
Maximum frame rate | 30 fps |
Audio | |
Built-in speaker(s) | Yes |
Number of speakers | 1 |
Frequency range | 100 - 20000 Hz |
Audio system full duplex | Yes |
Output level | 83/86 dB |
Noise reduction | Yes |
Echo cancellation | Yes |
Automatic gain control | Yes |
Microphone pick-up range | 3 m |
Speaker power | 7 W |
Ports & interfaces | |
USB 2.0 ports quantity | 1 |
Power over Ethernet plus (PoE+) ports quantity | 1 |
Microphone in | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 100 Mbit/s |
Wi-Fi | Yes |
Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
Cable standard | Cat5e |
Security algorithms | SRTP, SSH, SSL/TLS |
Password protection | Yes |
Password protection type | User |
Web-based management | Yes |
Camera | |
Megapixel (approx.) | 12 MP |
Camera type | Dual camera |
Zoom capability | Yes |
Sensor type | CMOS |
Image sensor size | 1/2.3" |
Horizontal field of view | 120ø |
Vertical field of view | 90ø |
Diagonal field of view | 150ø |
Aperture number of steps | 2.8 |
Gain control type | Auto |
Display | |
Built-in display | Yes |
Display | LCD |
Display diagonal | 17.8 cm (7") |
Display resolution | 1280 x 800 pixels |
Touchscreen | Yes |
Touchscreen type | Capacitive |
Microphone | |
Microphone direction type | Omnidirectional |
Microphone mute | Yes |
Computer system | |
Computer system type | Mini PC |
VESA mounting | Yes |
Windows operating systems supported | Windows 11 |
Power | |
Power source type | AC |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
DC output voltage | 48 V |
Power over Ethernet (PoE) voltage | 240 V |
Certificates | |
Certified for Microsoft Teams | Yes |
Weight & dimensions | |
Width | 182 mm |
Depth | 244 mm |
Height | 77 mm |
Weight | 960 g |
Packaging content | |
Cables included | DisplayPort to HDMI, HDMI, LAN (RJ-45), USB Type-A to Micro USB Type-B |
Power cable length | 1.8 m |
HDMI cable length | 1.8 m |
Number of microphones included | 1 |
AC adapter included | Yes |
PoE adapter included | Yes |
Mounting kit | Yes |
Speaker included | Yes |
Microphone included | Yes |
Manual | Yes |
Quick start guide | Yes |
Manual languages | English |
Warranty | |
Base Warranty | Non Non |
