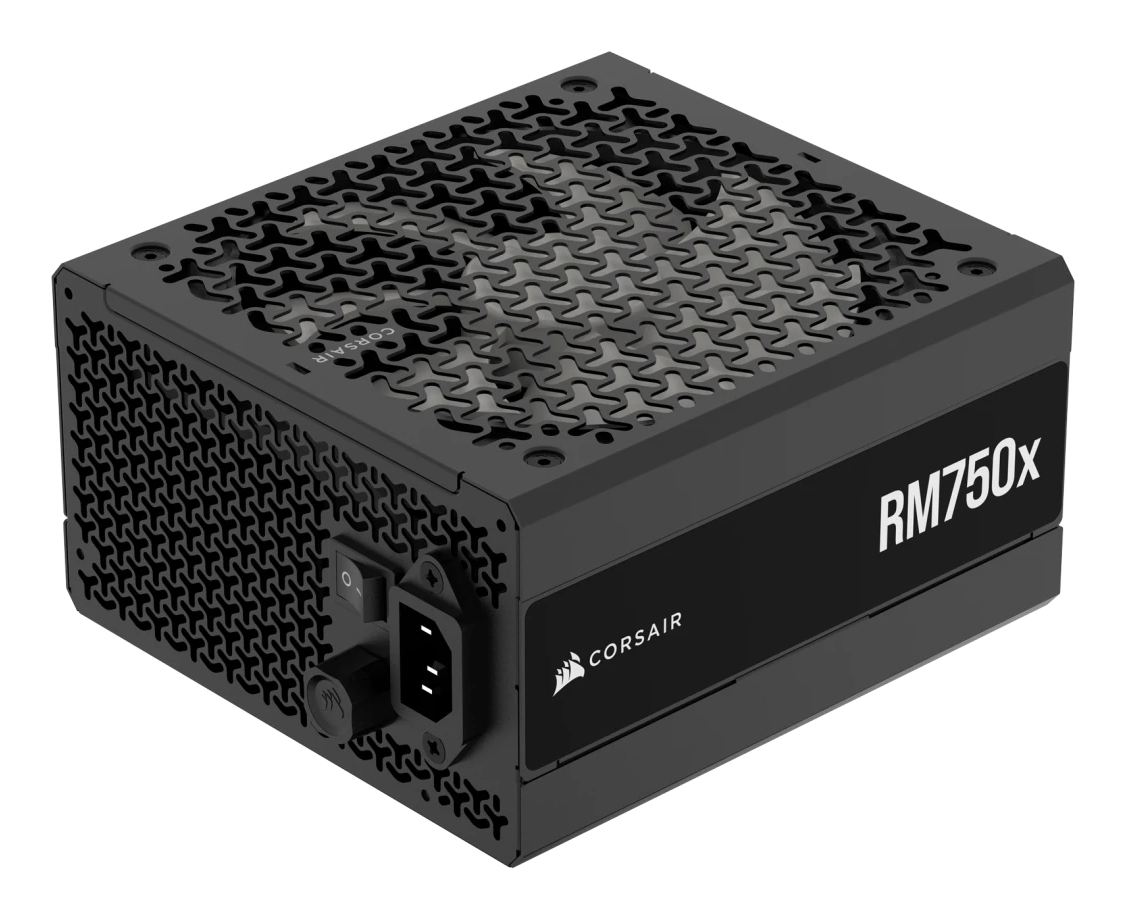

Power Supply - 750w Rm750x 24-pin ATX Black
ITCurry #: 96004914 | Article #: CP-9020285-EU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Power your next build with a CORSAIR RMx Series fully modular PSU for quiet, Cybenetics Gold-certified efficient performance.
RMx SERIES
THE GOLD STANDARD OF POWER SUPPLIES
QUIET, DEPENDABLE, EFFICIENT
Our best-selling PSU, updated. This fully modular, low noise, Cybenetics Gold-certified power supply is ATX 3.1 compliant and ideal for delivering dependable power to today's top-performing PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your PC, even under high-stress conditions.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
Be confident your PSU supports the latest sleep and hibernate modes and modern CPU and GPU requirements. ATX 3.1 compliance ensures full compatibility with modern components and power states.
FULLY MODULAR CONNECTORS
Connect only what you need using sleek embossed cables with low-profile combs to make installations a breeze.
Native 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
THE STRONG, SILENT TYPE
140mm LOW-NOISE FAN
A fluid dynamic bearing fan with magnetic dome structure keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
MANUAL FAN OVERRIDE KNOB
Want to get more air through the PSU or to exhaust some heat from your case? You can override the Zero RPM Mode and low-noise profile of the RMx Series with our manual fan override knob, increasing fan speed and airflow.
| Power | |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| EPS power connector (8-pin) | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.19 kg |
| Packaging data | |
| Package type | Box |
| Logistics data | |
| Warranty period | 10 year(s) |
| Warranty | |
| Base Warranty | Non Non |
