USB Type-c To Triple DisplayPort Mst Hub 4k60hz
ITCurry #: M4192930 | Article #: CSV-1553-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

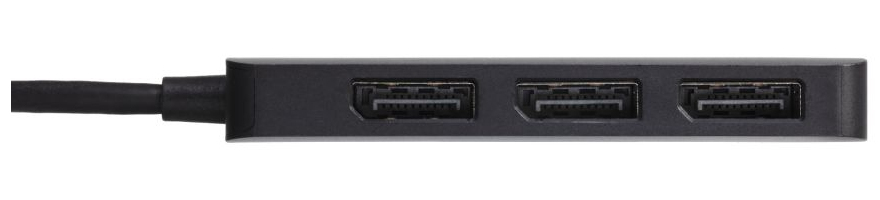

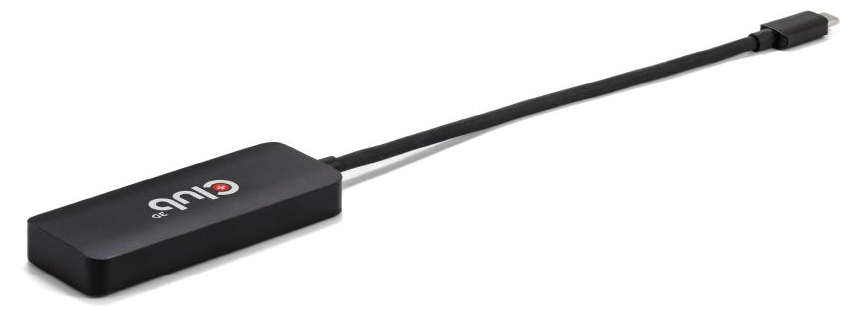

The CSV-1553 is a MST hub to DisplayPort™. This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB Type-C output which supports DP™ Alt-Mode as Host to 3 DisplayPort ports with Ultra High Definition support. It supports DP2.1 AltMode and will allow you to output one Display with max capability of a single 8K30Hz or dual displays of 8K30Hz + 4K144Hz support or triple displays of 4K60Hz Each. It supports on all DisplayPort Alternate Mode supported USB Type-C or Thunderbolt4 compatible devices.
Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB Type-C DisplayPort Supported port available you can now drive up to 3x Displayport™ screen simultaneously . All it needs is a free USB Type-C with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Triple 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.
| Ports & interfaces | |
| Host interface | USB Type-C |
| Hub interfaces | DisplayPort |
| DisplayPorts quantity | 3 |
| Ports quantity | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Features | |
| Maximum refresh rate | 144 Hz |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| High Dynamic Range (HDR) supported | Yes |
| Product colour | Black |
| HDCP | Yes |
| HDCP version | 2.2 |
| HD type | 8K Ultra HD |
| Cable type | Round cable |
| Power | |
| Power supply type | USB |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Weight | 53 g |
| Packaging data | |
| Package width | 60 mm |
| Package depth | 180 mm |
| Package height | 35 mm |
| Package weight | 103 g |
| Package type | Hanging box |
| Warranty | |
| Base Warranty | Non Non |
| Technical details | |
| Compliance certificates | RoHS |
