USB 3.2 Gen1 Type-c 8-in-1 Hub With 2x Hdmi 2x USB-a Rj45 Sd/micro Sd Card Slots And USB Type-c Fem
ITCurry #: M4192841 | Article #: CSV-1593-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

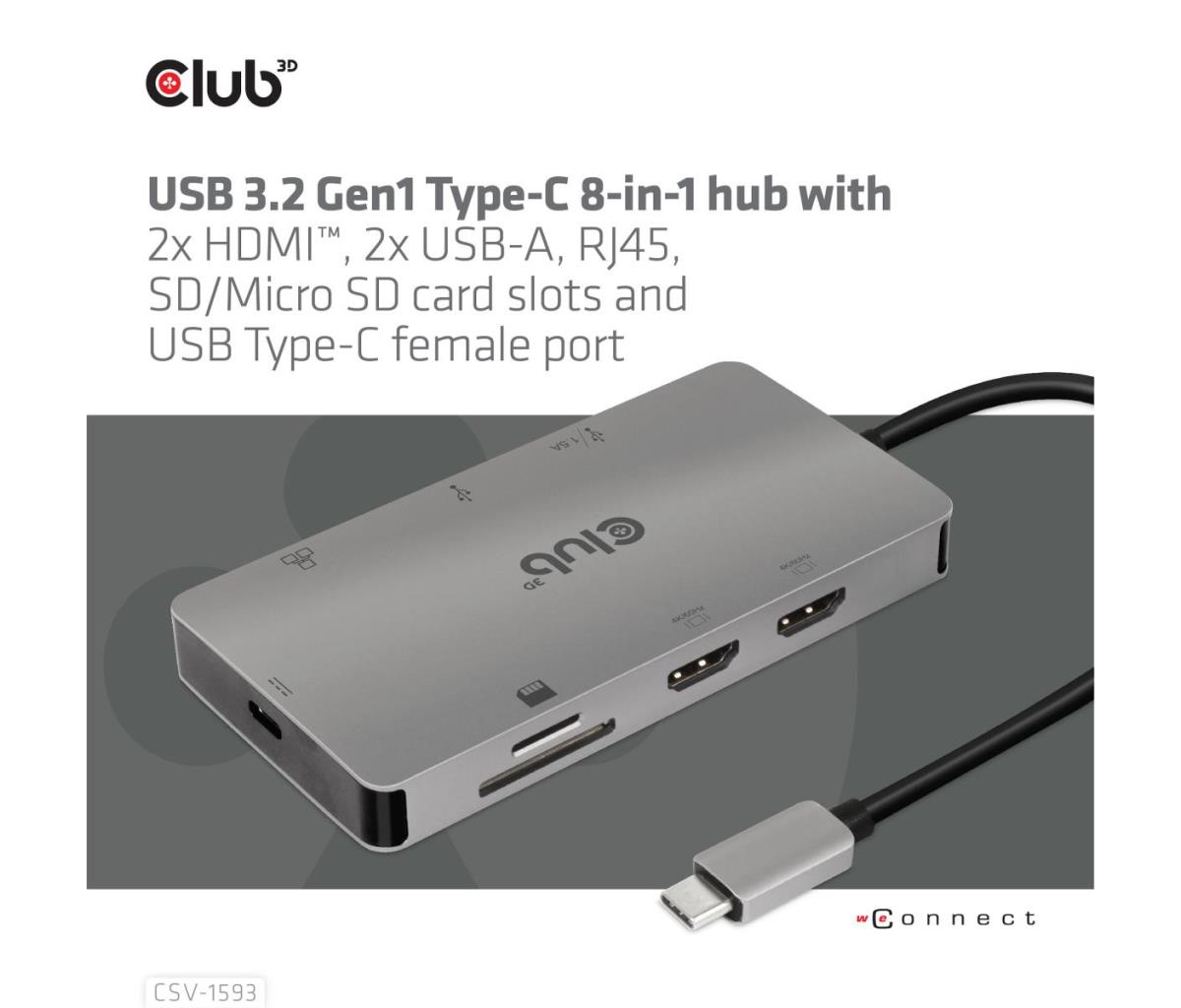

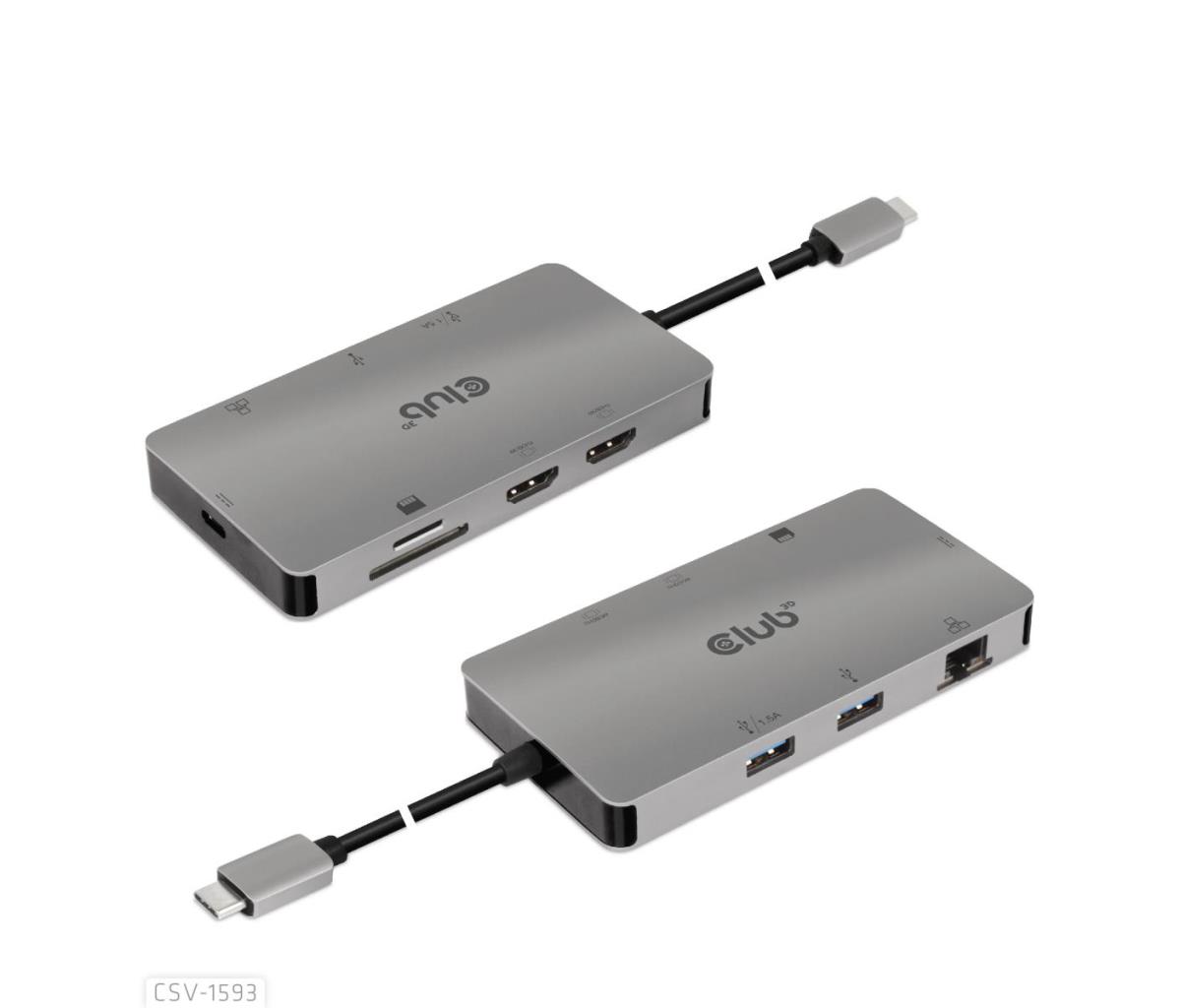

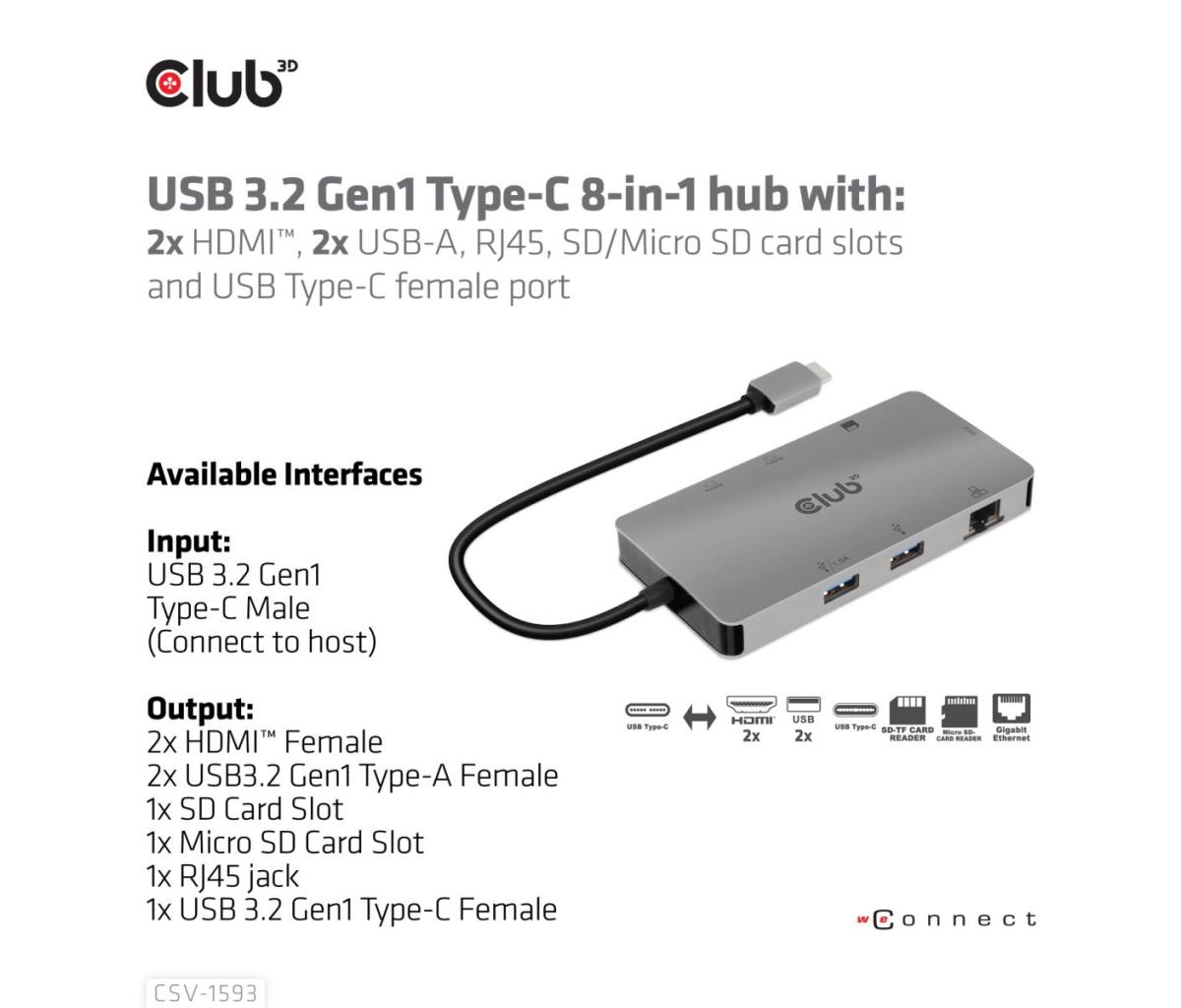

The Club 3D CSV-1593 USB 3.2 Gen1 Type-C 8-in-1 hub with 2 HDMI™, 2 USB-A, RJ45, SD/Micro SD card slots and Type-C female port, providing an ideal solution for extending your USB3.2 Gen1 Type-C or Thunderbolt™3 host port (PC/Laptop/Mobile phone,etc.). Especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode support, enabling to output HDMI™ video with max 4k60Hz or dual max 4K30Hz under MST mode and simultaneously transfer USB 3.2Gen1 data with max 5Gbps. 2x USB Type-A ports allow you to connect 2 USB devices simultaneously. The SD/Micro SD ports allow to insert 2 card into the slots simultaneously for data transmission or for reading/writing information on the host. The RJ45 port allows the host to get access to Gigabit Ethernet. Besides, the USB 3.2 Gen1 Type-C female supports PD 3.0 with max. 100W PD Charging. It can work on all USB3.2 Gen1 Type-C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode). When working on Thunderbolt™3 host, this product transmits DP signal.
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ports quantity | 8 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Features | |
| Data transfer rate | 16200 Mbit/s |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Product colour | Metallic |

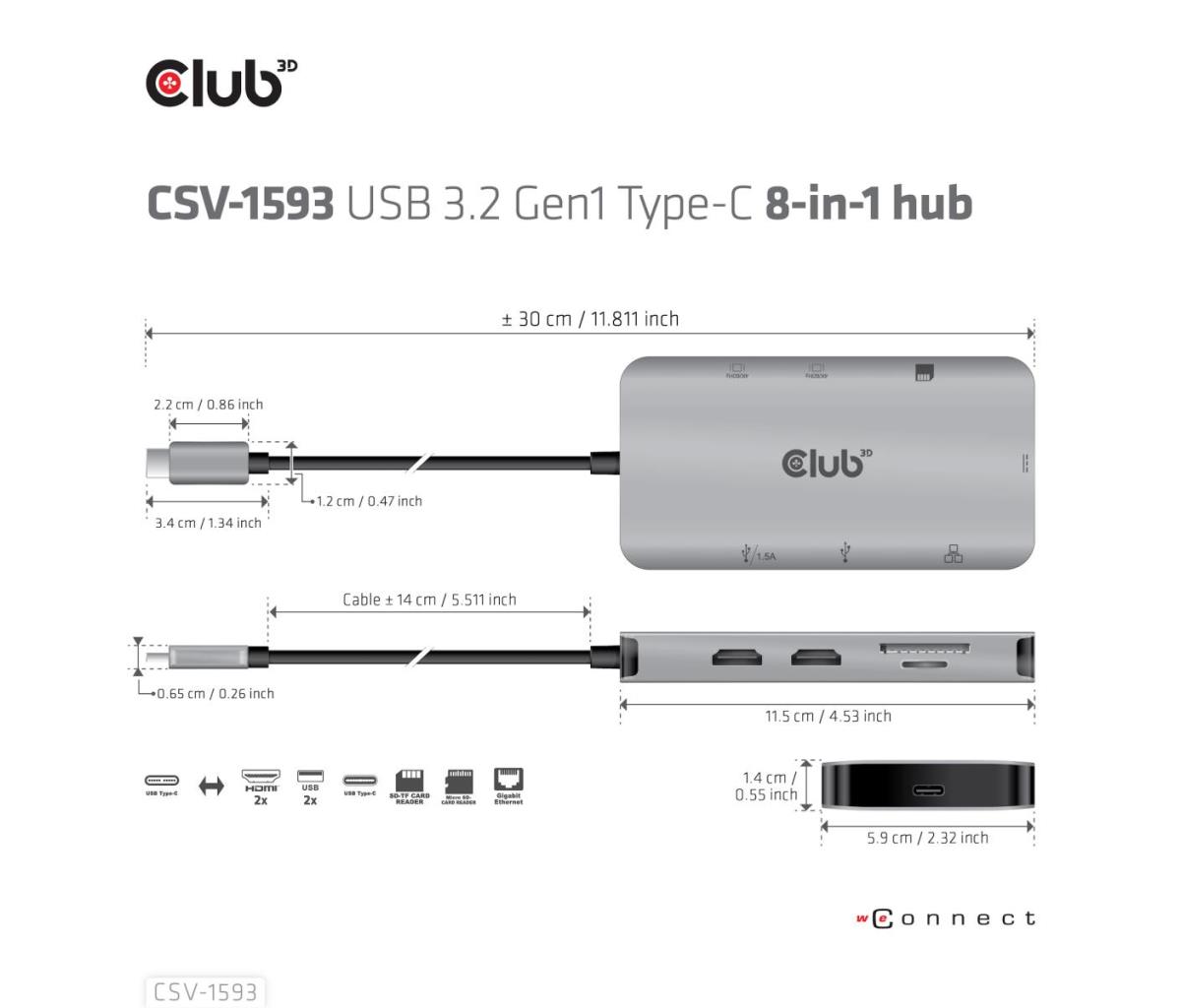

| Cable length | 0.14 m |
| Plug and Play | Y |
| Country of origin | China |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Compatible products | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Warranty | |
| Base Warranty | Non Non |
| Performance | |
| Harmonized System (HS) code | 84719000 |
