Thunderbolt 4 Certified 12-in-1 Dockingstation - With 2xhdmi 1xdp And 2.5GB Ethernet
ITCurry #: M4192959 | Article #: CSV-1582-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

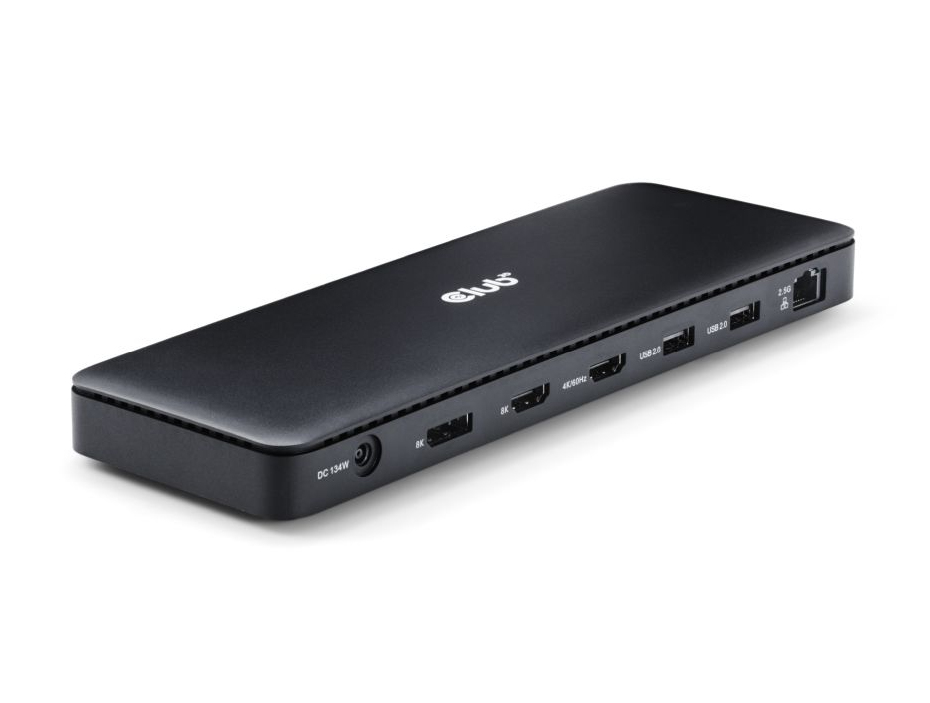

The Club 3D CSV- 1582 is a Certified Thunderbolt™ 4 12-in-1 Docking Station which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Combining the TB4 features with the ease of an integrated dock, allowing you to output 3 Streams to 3 displays simultaneously with extended desktop displays on a TB4/USB4 Windows PC. Ethernet RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. The dock supports the smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs utilizing MacOS 11 and later versions
| Performance | |
| Basic device type | Universal |
| Product colour | Black |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ports & interfaces | |
| Docking connector type | USB Type-C |
| USB hub | Yes |
| USB 2.0 ports quantity | 2 |
| USB Type-C ports quantity | 3 |
| Audio output | No |
| HDMI | Yes |
| HDMI connector type | Full-size |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 134 W |
| DC input voltage | 21 V |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 85 mm |
| Height | 22 mm |
| Weight | 392 g |
| Cable length | 0.8 m |
| Packaging data | |
| Quantity | 1 |
| Package type | Box |
| Package width | 275 mm |
| Package depth | 125 mm |
| Package height | 77 mm |
| Package weight | 1.17 kg |
| Paper/cardboard packaging weight | 147 g |
| Plastic packaging weight | 4 g |
| Packaging content | |
| Cables included | Thunderbolt |
| Adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Warranty | |
| Base Warranty | Non Non |
