Smart Switch - Cbs250 48-port Ge 4x10g Sfp+

ITCurry #: 0918V522 | Article #: CBS250-48T-4X-UK
Price:
726.23 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

Product Information

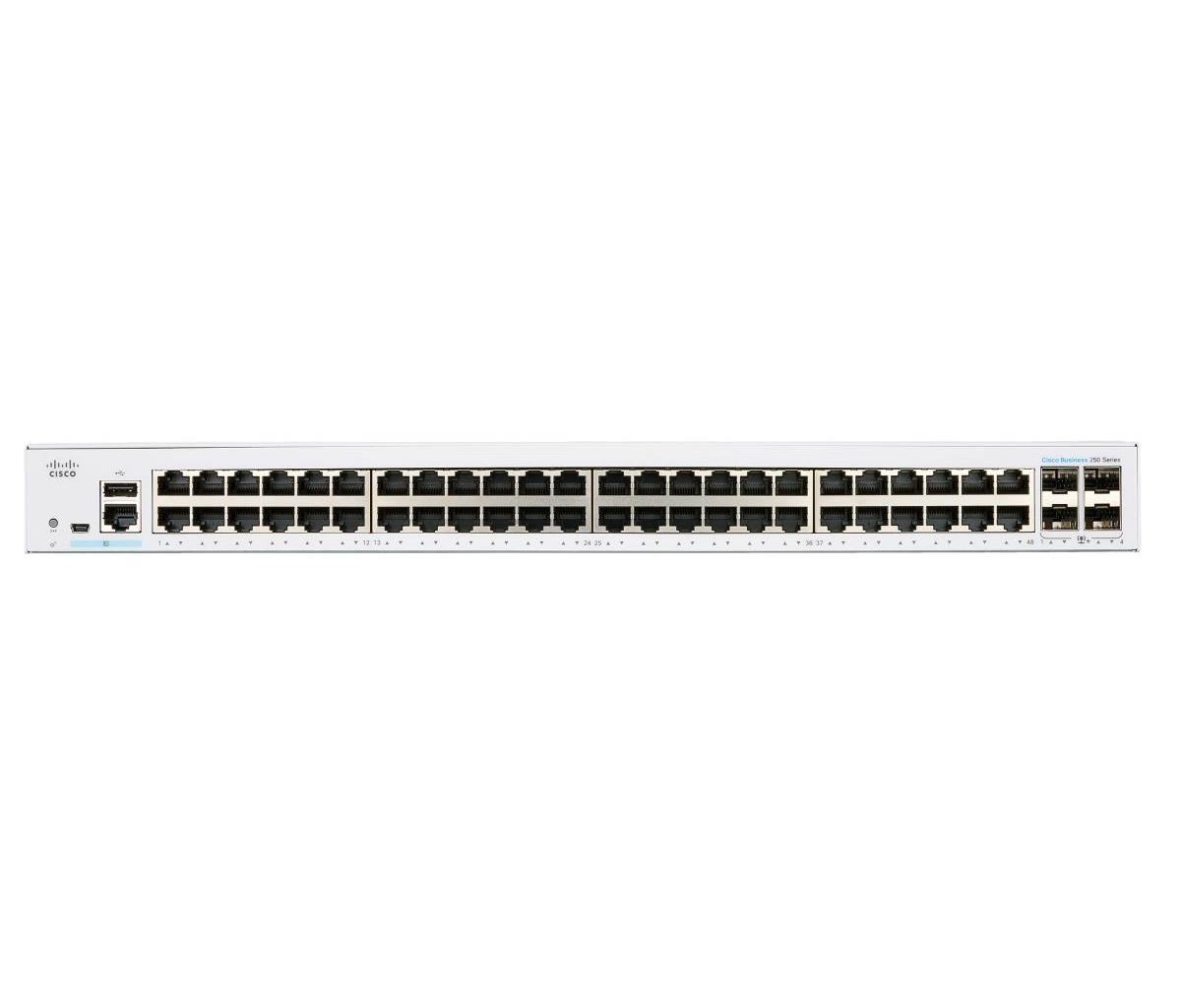

The Cisco Business CBS250-48T-4X switch is the next generation of affordable, smart switch that combines powerful network performance, security, and reliability with a comprehensive suite of network features you need for a solid small business network.

Warranty
Base Warranty Non Non
Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 48
Combo SFP ports quantity 4
SFP+ module slots quantity 4
Console port RJ-45/Mini-USB
USB 2.0 ports quantity 1
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported Cat5e
Port mirroring Yes
IP routing Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Active link detection Yes
Cable length detection Yes
VLAN support Yes
Virtual LAN features Voice VLAN
Data transmission
Switching capacity 176 Gbit/s
Forwarding rate 130.94 Mpps
MAC address table 8000 entries
Number of queues 8
Static route Yes
Number of static routes 32
Number of IP interfaces 16
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 3 MB
Security
DHCP features DHCP client, DHCP relay
Access Control List (ACL) Yes
Access Control List (ACL) rules 512
IGMP snooping Yes
Security algorithms 802.1x RADIUS, SSH, SSL/TLS
SSH/SSL support Yes
Loop protection Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
Authentication Guest VLAN, Port-based authentication
Password protection Yes
Authentication type IEEE 802.1x, RADIUS
Queue scheduling algorithms SP, Weighted Round Robin (WRR)
Multicast features
Multicast support Yes
Multicast Listener Discovery (MLD) snooping MLD v1/2
Protocols
Management protocols SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
GARP VLAN Registration Protocol (GVRP) Yes
IPv4 & IPv6 features Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL)
Design
Rack mounting Yes
Stackable No
Form factor 1U
Product colour Grey
Reset button Yes
LED indicators Yes
Market segment Business
Country of origin China
Certification UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A
Performance
Built-in processor Yes
Processor frequency 800 MHz
Memory type DRAM
Internal memory 512 MB
Flash memory 256 MB
Firmware upgradeable Yes
Technical details
Products per shipping (inner) case 1 pc(s)
Compliance certificates CE, WEEE
Power
Power supply included Yes
Power supply location Internal
Number of power supply units 1
AC input voltage 100 - 240 V
AC input frequency 50 Hz
Power saving mode (EEE) Yes
Power plug type Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 50 øC
Storage temperature (T-T) -25 - 70 øC
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 174.06 BTU/h
Weight & dimensions
Width 287.8 mm
Depth 439.9 mm
Height 43.9 mm
Weight 3.95 kg
Packaging data
Cables included AC
Quick start guide Yes
Rack mount kit Yes
Package width 418.8 mm
Package depth 571.8 mm
Package height 95 mm
Package weight 5.73 kg
Sustainability
Sustainability compliance Yes
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
Products per master (outer) case 1 pc(s)
Other features
Packaging content CBS250-48T-4X Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
