Nexus56128p2ruchassis 4810g Sfp+ - Refurb
ITCurry #: 0918AP66 | Article #: N5K-C56128P-RF-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
In today’s data centers, virtualization deployments have become commonplace, and this trend is increasing rapidly with the availability of 10 Gigabit Ethernet servers at attractive prices. The combination of increased adoption of these servers and applications with higher bandwidth requirements is increasing the need for dense 10 and 40 Gigabit Ethernet switching. Moreover, data center architectures are changing as application environments create new demands for IT infrastructure. Application workloads are deployed across a mix of virtualized and nonvirtualized server and storage infrastructure, requiring a network infrastructure that provides consistent connectivity, security, and visibility across a range of bare-metal, virtualized, and cloud computing environments.
The Cisco Nexus® 5600 platform is the third generation of the Cisco Nexus 5000 Series Switches: the industry’s leading data center server access switches. The Cisco Nexus 5600 platform switches can be categorized into 10-Gbps and 40-Gbps switches. This data sheet focuses on the 10-Gbps switches only. Cisco Nexus 5600 platform 10-Gbps switches are the successors to the industry’s widely adopted Cisco Nexus 5500 platform switches. The switches maintain all the existing Cisco Nexus 5500 platform features, including LAN and SAN convergence (unified ports and Fibre Channel over Ethernet [FCoE]), fabric extenders, and Cisco® FabricPath. In addition, the Cisco Nexus 5600 platform 10-Gbps switches bring integrated line-rate Layer 2 and 3 capabilities with true 40 Gigabit Ethernet support (on uplink and network-facing ports), Cisco programmable fabric innovations, Network Virtualization Using Generic Routing Encapsulation (NVGRE), Virtual Extensible LAN (VXLAN) bridging and routing, network programmability and visibility, large buffer capacity, and significantly greater scalability and performance for highly virtualized, automated, and cloud environments.
The Cisco Nexus 5600 platform 10-Gbps switches include both 1-Rack-Unit (1RU) and 2RU switches built to meet the challenges of today’s data centers with a flexible, agile, and energy-efficient design. These 10-Gbps switches are an important component of the Cisco Unified Data Center architecture, complementing existing Cisco Nexus switches. These energy-efficient switches offer 10 and 40 Gigabit Ethernet and FCoE, providing integrated Layer 2 and 3 features at wire speed and low latency of approximately 1 microsecond for any packet size. With a choice of port-side intake and fan-side intake airflow options to align with cold-aisle and hot-aisle placement in the data center, the 10-Gbps switches are designed for a broad range of traditional data center and large-scale virtualized cloud deployments.
The 10-Gbps switches together with the Cisco NX-OS Software operating system provides customers with features and capabilities that are widely deployed in data centers around the world. NX-OS is a purpose-built data center operating system designed for performance, resiliency, scalability, manageability, and programmability. It meets Ethernet and storage networking requirements, providing a robust and comprehensive feature set that can meet the demanding requirements of virtualization and automation in present and future data centers.
The Cisco Nexus 5600 platform 10-Gbps switches are designed for Top-of-Rack (ToR) and Middle-of-Row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments.

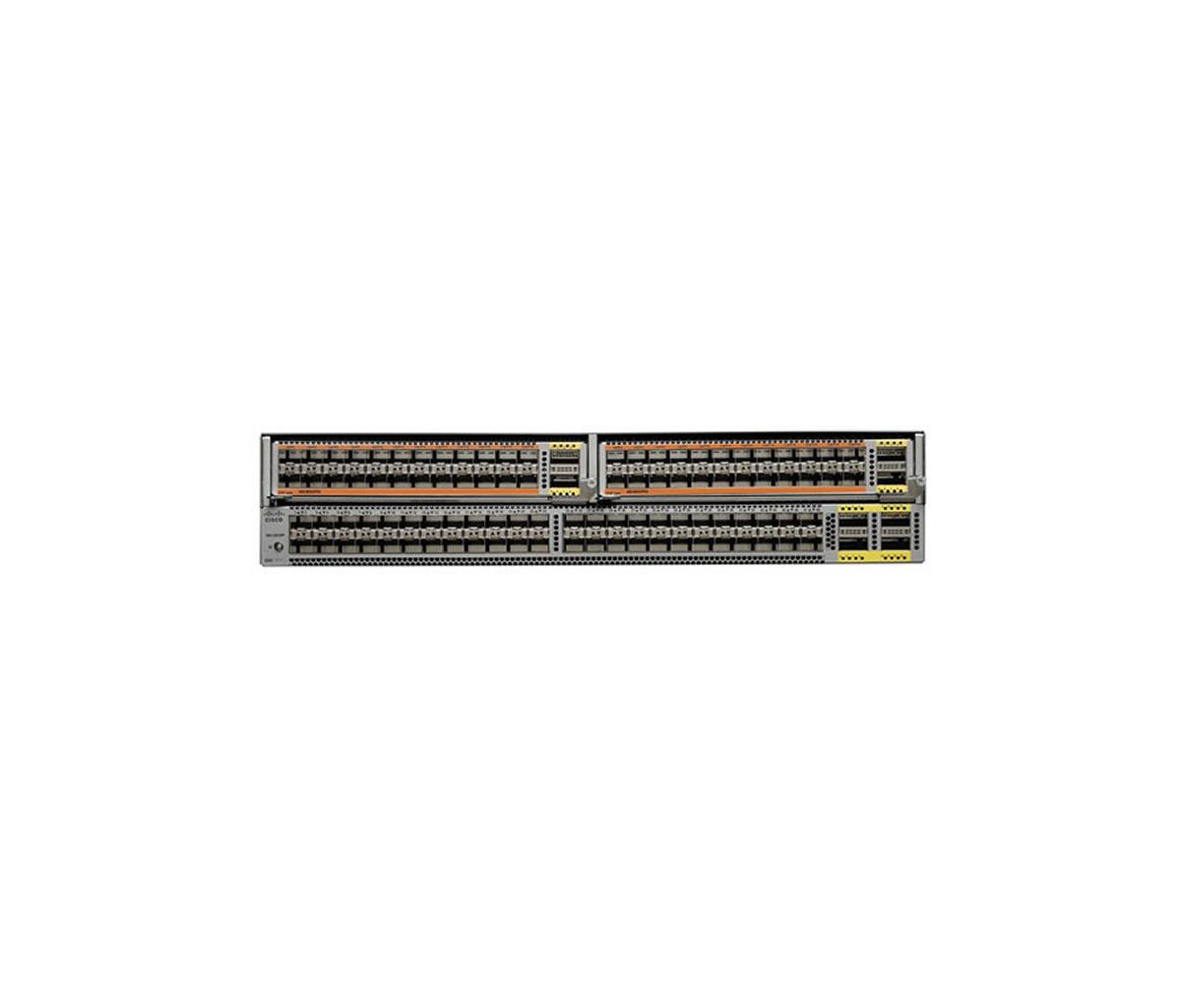

The Cisco Nexus 56128P Switch is a 2RU switch that supports 2.56 Tbps of bandwidth across 48 fixed 1 and 10 Gigabit Ethernet SFP+ ports and four 40-Gbps QSFP+ ports. The 48 ports on the base chassis support 10 Gigabit Ethernet and FCoE. The 4 QSFP ports support 40 Gigabit Ethernet and FCoE.
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 6 |
| Fiber optic connector | QSFP+, SFP+ |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x |
| 10G support | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, VLAN mapping |
| Number of VLANs | 4096 |
| Optical fiber | |
| Switching optical modules type | 40 Gigabit Ethernet |
| Data transmission | |
| Switching capacity | 2560 Gbit/s |
| Forwarding rate | 1904 Mpps |
| MAC address table | 256000 entries |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 25 MB |
| Security | |
| DHCP features | DHCP snooping, DHCP relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | AES, SSH-2 |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Root protection | Yes |
| Authentication type | AAA |
| Queue scheduling algorithms | Deficit weighted round robin (DWRR) |
| Multicast features | |
| Multicast support | Yes |
| IPv4 multicast entries | 8000 |
| Protocols | |
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | BGP, EIGRP, HSRP, IS-IS, OSPF, RIP-2 |
| Design | |
| Rack mounting | Yes |
| Form factor | 2U |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
| Performance | |
| Telnet | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 94 - 264 V |
| AC input frequency | 47/63 Hz |
| DC input voltage | 72 V |
| Power consumption (typical) | 650 W |
| Power consumption (max) | 1100 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 439 mm |
| Depth | 762 mm |
| Height | 88 mm |
| Weight | 27.2 kg |
| Certificates | |
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 |
| Warranty | |
| Base Warranty | Non Non |
