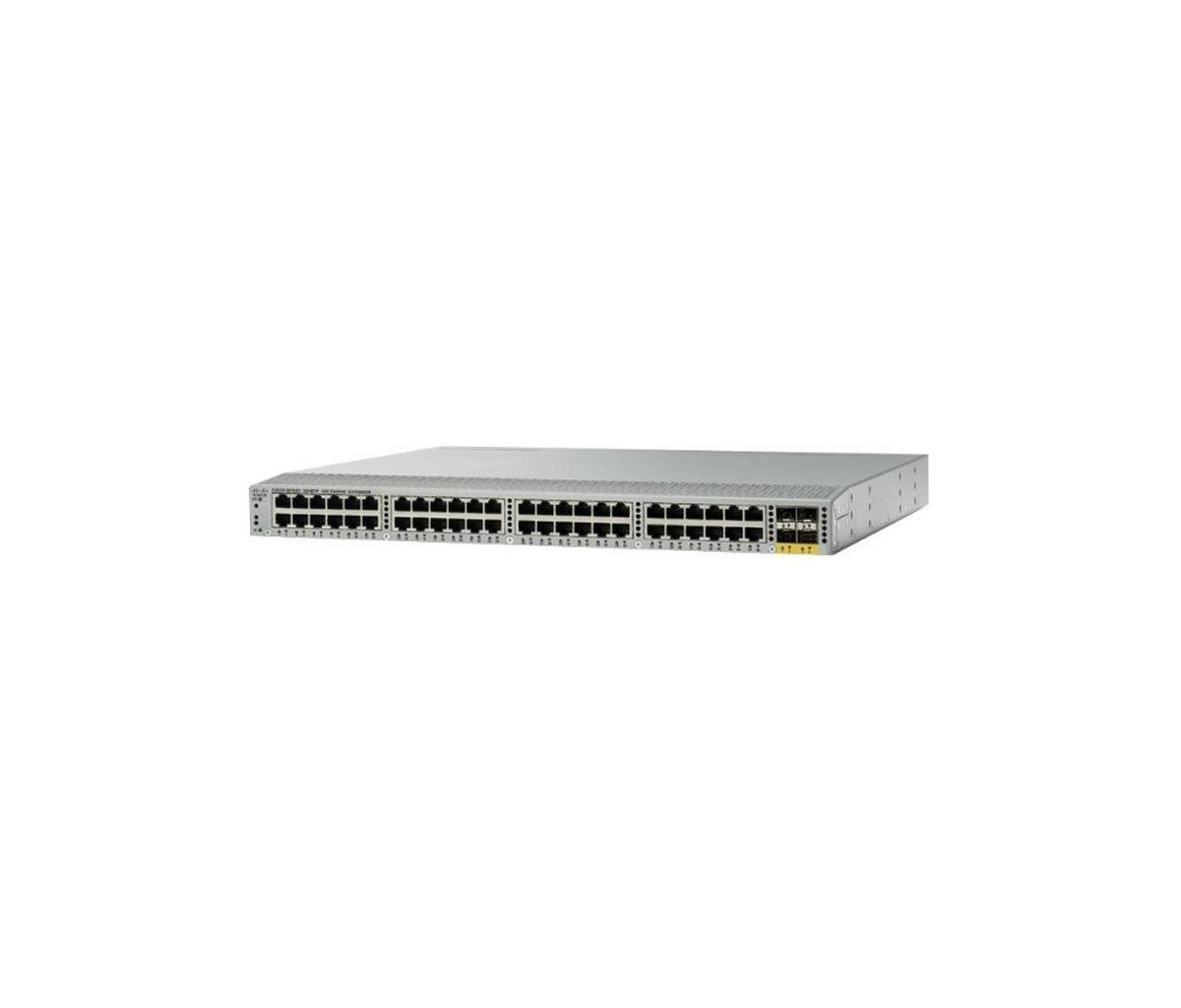

Nexus 2000 Series 10ge Fabric Ext - Refurb
ITCurry #: 0918AP27 | Article #: N2K-C2232PP10GE-RF-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
- 32 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE) server access ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
- 8 10 Gigabit Ethernet and FCoE uplink ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
- Low-latency, cut-through switching, ideal for 10 Gigabit Ethernet server and pass-through blade server connectivity
- Unified fabric environments
- IEEE Data Center Bridging (DCB)
- Host PortChannel and vPC (up to 8 PortChannel members per PortChannel, with no restriction on the number of PortChannels)
- ISSU
- Highly scalable virtual modular system with up to 384 10 Gigabit Ethernet and FCoE ports
- Compact 1RU form factor
- Front-to-back cooling compatible with data center hot-aisle and cold-aisle designs, with all switch ports at the rear of the unit in close proximity to server ports
- Hardware capable of back-to-front cooling (requires new power supply and fan tray)
- Dual-redundant power supplies included in default configuration
- Hot-swappable fan trays
- All user-serviceable components accessible from the front panel
- Hardware capable of Gigabit Ethernet on all ports (requires new software)
- Operates as a remote I/O module, extending the switch fabric for Cisco Nexus 5010 and 5020 Switches
- Can be mixed and matched with different types of Cisco Nexus 2000 Series Fabric Extenders to the same parent switch to support various types of connectivity
- Zero-touch provisioning, including configuration and upgrade
| Performance | |
| Maximum transfer distance | 10000 m |
| Data transfer rate | 10000 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| VLAN tagging | Yes |
| Duplex system | Full |
| Flow control support | Yes |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 32 |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 8 |
| DC-in jack | Yes |
| Design | |
| Product colour | Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Certification | UL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 EC 60950-1AS/NZS 60950-1GB4943 |
| Power | |
| AC input voltage | 90-264 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power consumption (typical) | 210 W |
| Power consumption (max) | 270 W |
| Output current | 20 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 439.4 mm |
| Depth | 449.6 mm |
| Height | 43.7 mm |
| Weight | 8.3 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Other features | |
| Operating temperature (T-T) | 32 - 104 øF |
| Warranty | |
| Base Warranty | Non Non |
