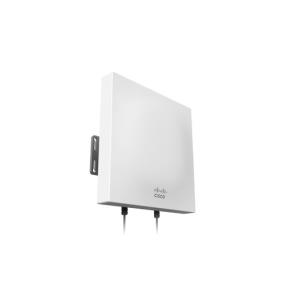

Mg21e Patch Antenna
ITCurry #: 0918T273 | Article #: MA-ANT-C1-B
slide 1 of 1
Related products
slide 7 to 11 of 14
Product Information
The Cellular Patch Antenna (MA-ANT-C1-B) is ideal for situations that require higher directional gain towards a cellular tower.
When mounted high up on a pole for a clearer line of site toward a cellular tower, the MG cellular gateway will have higher
signal quality and power.
| Performance | |
| Frequency band | 0.7/2.69 GHz |
| Gain | 4 / 7 dBi |
| Horizontal beam width | 60ø |
| Vertical beam width | 60ø |
| Antenna gain level (max) | 2690 dBi |
| Features | |
| Antenna connector type | RP-SMA |
| Cable length | 1 m |
| Mounting | Wall/Pole |
| Compatible products | MG21E |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 46 mm |
| Height | 220 mm |
| Weight | 550 g |
| Warranty | |
| Base Warranty | Non Non |
Mg21e Patch Antenna
353.19
