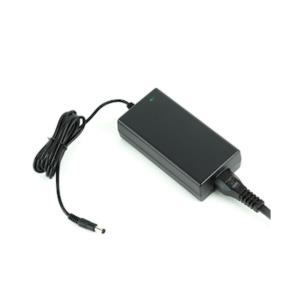

Meraki Mgig 802.3bt Poe Injector (power Cord Not Included)
ITCurry #: 0918W077 | Article #: MA-INJ-6
slide 1 of 1
Related products
slide 7 to 11 of 14
Product Information
Provides power and connectivity
Allows delivery of both data and power for the Meraki MV smart camera over a single Ethernet cable allowing for simple installation.
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Duplex system | Full |
| Features | |
| Product colour | Black |
| Wall mountable | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| Power protection features | Short circuit |
| Certification | USA: FCC 15 B EU: EN55022 B cUL/US |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 / 60 Hz |
| Input current | 0.8 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 52.5 mm |
| Height | 35.5 mm |
| Weight | 210 g |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
| Warranty | |
| Base Warranty | Non Non |
Meraki Mgig 802.3bt Poe Injector (power Cord Not Included)
262.44
