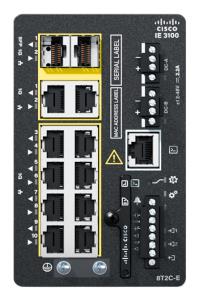

Ie3105 W/8ge Copper 2ge Combo Adv Feat Fixed Sys Net Essent
ITCurry #: 0918Y117 | Article #: IE-3105-8T2C-E-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Fast, secure network connectivity, even in tight spaces?
Extend fast, secure, and fully managed connectivity to devices in harsh operating conditions and space-constrained environments.
Easily place in confined spaces. Integrate within connected industrial solutions that are custom-built and turnkey.?
Incorporate within turnkey industrial solutions?
Deliver fully managed, secure, and reliable custom-built machinery by connecting individual devices within your industrial solution.
Join the circular economy
Invest in products that are designed, built, and delivered with sustainability in mind. The Catalyst IE3100 Rugged Series eliminates the use of paint with anodization and uses 100% recyclable packaging.
??Bring the best of IT networking into your operations
Gain enterprise-grade networking capabilities with the modern Cisco IOS-XE operating software, management by Cisco DNA Center, and fast recovery for resilient operations.
??Protect your operations with best-in-class security?
??Reduce risk and defend your operations against cyberthreats with device authentication, access control, and network segmentation.?
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RS-232/Micro-USB |
| Compatible memory cards | SD |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| IPv4 routes | 2000 |
| Number of VLANs | 256 |
| Data transmission | |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Security | |
| DHCP features | DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| IGMP entries | 512 |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| DIN rail mounting | Yes |
| Performance | |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Mean time between failures (MTBF) | 774680 h |
| Technical details | |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), ICES, KCC |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 4.2 - 1.3 A |
| Input voltage | 12 - 48 V |
| Power consumption (typical) | 28 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 12192 m |
| Weight & dimensions | |
| Width | 76.2 mm |
| Depth | 129 mm |
| Height | 127 mm |
| Weight | 1.04 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Warranty | |
| Base Warranty | Non Non |
