Product Information

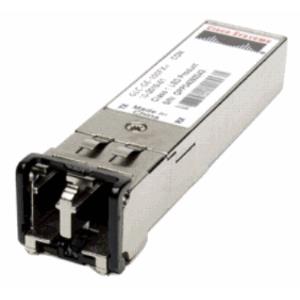

The Cisco SFP-10G-BXD-I and SFP-10G-BXU-I SFPs operate on a single strand of standard SMF.
A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. The presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1270-nm and 1330-nm light paths.
Performance | |
SFP transceiver type | Fiber optic |
Maximum data transfer rate | 10000 Mbit/s |
Interface type | SFP+ |
Single-mode fiber (SMF) supported | Yes |
Fiber optic connector | LC |
Fiber cable diameters supported (core/cladding) | 9/125 æm |
SFP transceiver standard | BX |
Maximum transfer distance | 10000 m |
Wavelength | 1270 nm |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
Cabling technology | 10GBASE-BXU |
Auto MDI/MDI-X | Yes |
Features | |
Hot-Plug support | Yes |
Certificates | |
Certification | MSA |
Operational conditions | |
Operating temperature (T-T) | -40 - 85 øC |
Storage temperature (T-T) | -40 - 85 øC |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Width | 13.4 mm |
Depth | 56.5 mm |
Height | 8.5 mm |
Packaging content | |
Quantity per pack | 1 pc(s) |
Logistics data | |
Harmonized System (HS) code | 85369010 |
Warranty | |
Base Warranty | Non Non |
