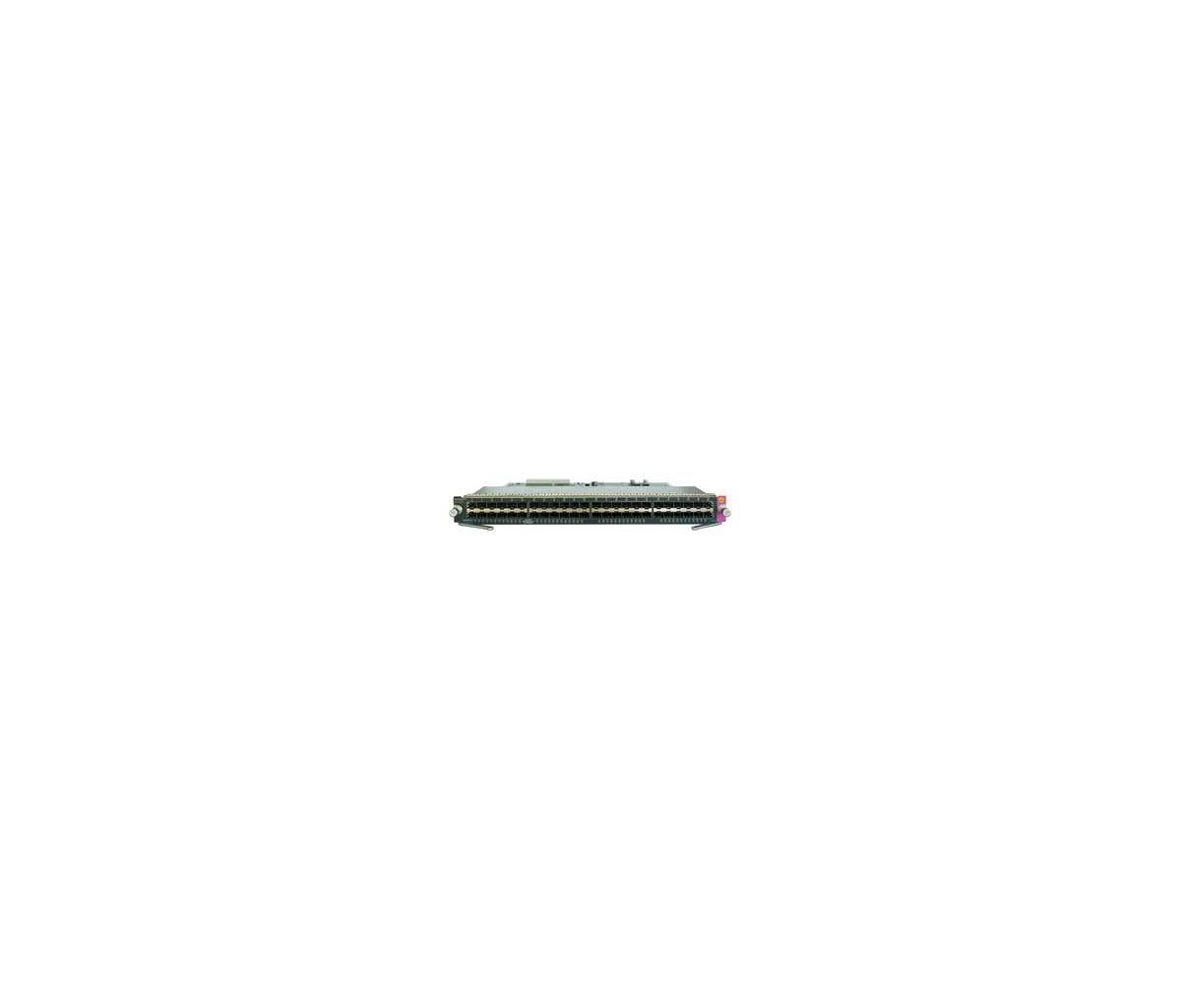

Cisco Catalyst 4500e Series Line Card 48x Gigabit Sfp Remanufactured
ITCurry #: 0918V171 | Article #: WS-X4748-SFP-E-RF-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Cisco Catalyst 4500 Series offers two classes of line cards: classic and E-Series. Classic line cards provide 6 gigabits of switching capacity per slot. E-Series line cards provide increased switching capacity per slot. This increase in per-slot switching capacity with the E-Series line cards requires the Cisco Catalyst 4500E Series chassis and the Cisco Catalyst 4500E Series Supervisor. Two types of E-Series line cards are available based on the per-slot switching capacity. E-Series line cards numbered 47xx operate at 48 gigabits per slot, while E-Series line cards numbered 46xx operate at 24 gigabits per slot. Classic line cards may be deployed in both classic and E-Series chassis with either classic Cisco Catalyst 4500 Series supervisor engines or with the Cisco Catalyst 4500E Series Supervisor Engine. With the E-Series supervisor engine, the per-slot switching capacity for classic line cards remains at 6 gigabits per slot. However, because of the centralized switching architecture of the Cisco Catalyst 4500, the classic line cards will adopt all of the new E-Series supervisor engine features such as eight queues per port, dynamic QoS, and hardware-based IPv6 routing. For more feature details, refer to the E-Series supervisor engine data sheet. Classic line cards and E-Series line cards may be mixed and matched within a Cisco Catalyst 4500E Series chassis with no performance degradation: classic line cards will operate at 6 gigabits per slot, and E-Series line cards operate at either 48 gigabits per slot or 24 gigabits per slot based on whether they belong to the 47xx or 46xx family of line cards.
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Optical fiber | |
| Fiber optic connector | SFP |
| Ports & interfaces | |
| SFP module slots quantity | 48 |
| Performance | |
| Mean time between failures (MTBF) | 876100 h |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Power | |
| Power consumption (typical) | 92 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 75 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | -60 - 3000 m |
| Operating temperature (T-T) | 32 - 104 øF |
| Certificates | |
| Certification | RoHS5 |
| Safety | UL 1950, EN 60950, CSA-C22.2 no 950, IEC 950, IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11 |
| Electromagnetic compatibility | FCC 15J Class A, VCCI Class A, CE Marking, EN 55022 Class A, EN 55024 Class A, CISPR 22 Class A, AS/NZ 3548, NEBS Level 3 (GR-1089-CORE, GR-63-CORE), ETSI ETS-300386-2, EN 50121-4 |
| Weight & dimensions | |
| Dimensions (WxDxH) | 362 x 273 x 30 mm |
| Warranty | |
| Base Warranty | Non Non |
