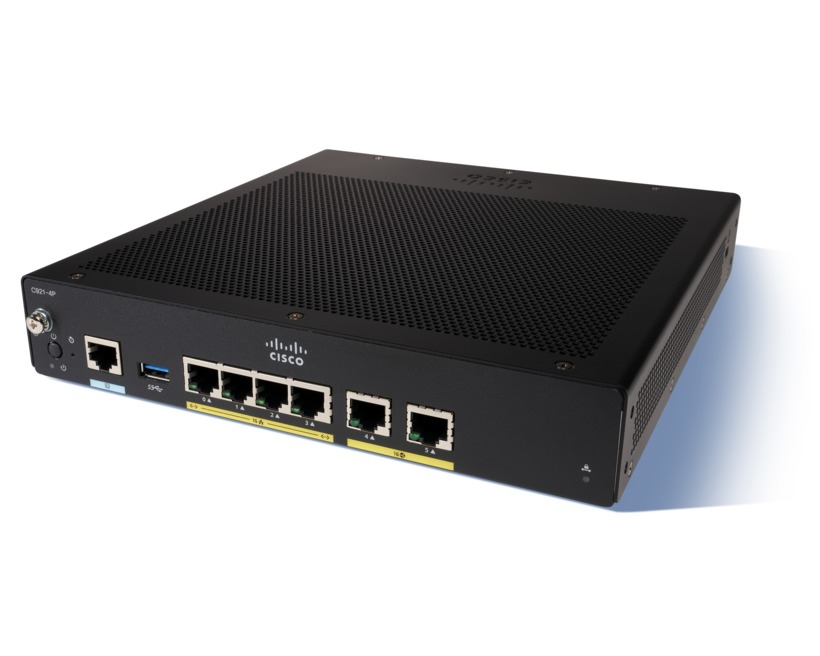

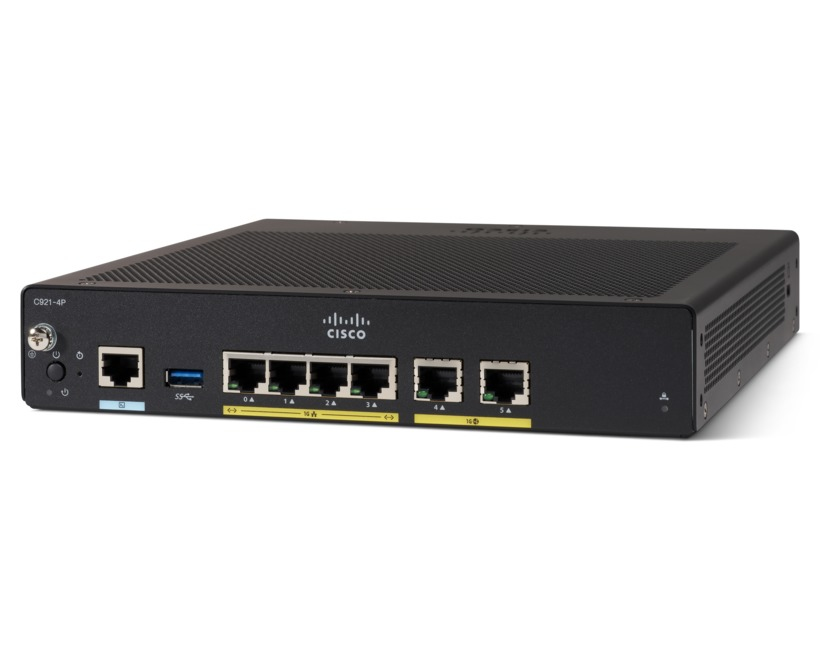

Cisco 927 Vdsl2/adsl2+ Over Pots And 1ge/sfp Sec Router
ITCurry #: 0918Q366 | Article #: C927-4P-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Cisco 900 Series ISRs deliver integrated security and threat defense, protecting networks from both known and new Internet vulnerabilities and attacks. These powerful, fixed-configuration routers provide secure broadband and Metro Ethernet and wireless LTE WAN connectivity. Service providers offering both managed Ethernet and wireless LTE WAN services can deploy them in customer locations as CPE. Centralized and remote management capabilities are available through web-based tools and Cisco IOS® Software for full visibility and control of network configurations at the remote site.
The 900 Series ISRs simplify the deployment of Ethernet WAN services, with end-to-end Operations, Administration, and Maintenance (OA&M), Service-Level Agreement (SLA) monitoring and verification, and configuration management.
The Cisco 900 Series ISRs come with a 4-port managed switch, providing LAN ports to connect multiple devices.
| WAN connection | |
| Ethernet WAN | Y |
| DSL WAN | Y |
| SIM card slot | N |
| 3G/4G USB modem compatibility | N |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Y |
| Multicast support | Y |
| Traffic control | Y |
| Auto MDI/MDI-X | Y |
| Policy-based routing | Y |
| Number of users | 50 user(s) |
| Differentiated services (DiffServ) supported | Y |
| DSL features | |
| ADSL2+ | Y |
| VDSL2 | Y |
| Management features | |
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Protocols | |
| Routing protocols | BGP, EIGRP, OSPF |
| DHCP client | Y |
| DHCP server | Y |
| Security | |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SSL/TLS |
| Firewall | Y |
| MAC address filtering | Y |
| Access Control List (ACL) | Y |
| Network address translation (NAT) | Y |
| Features | |
| Flash memory | 2048 MB |
| Internal memory | 1024 MB |
| Internal memory type | DRAM |
| Plug and Play | Y |
| Safety | IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1 |
| Design | |
| Product colour | Black |
| LED indicators | Y |
| Power | |
| Power consumption (typical) | 30 W |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4570 m |
| Weight & dimensions | |
| Width | 259.1 mm |
| Depth | 177.8 mm |
| Height | 28 mm |
| Weight | 1.2 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
