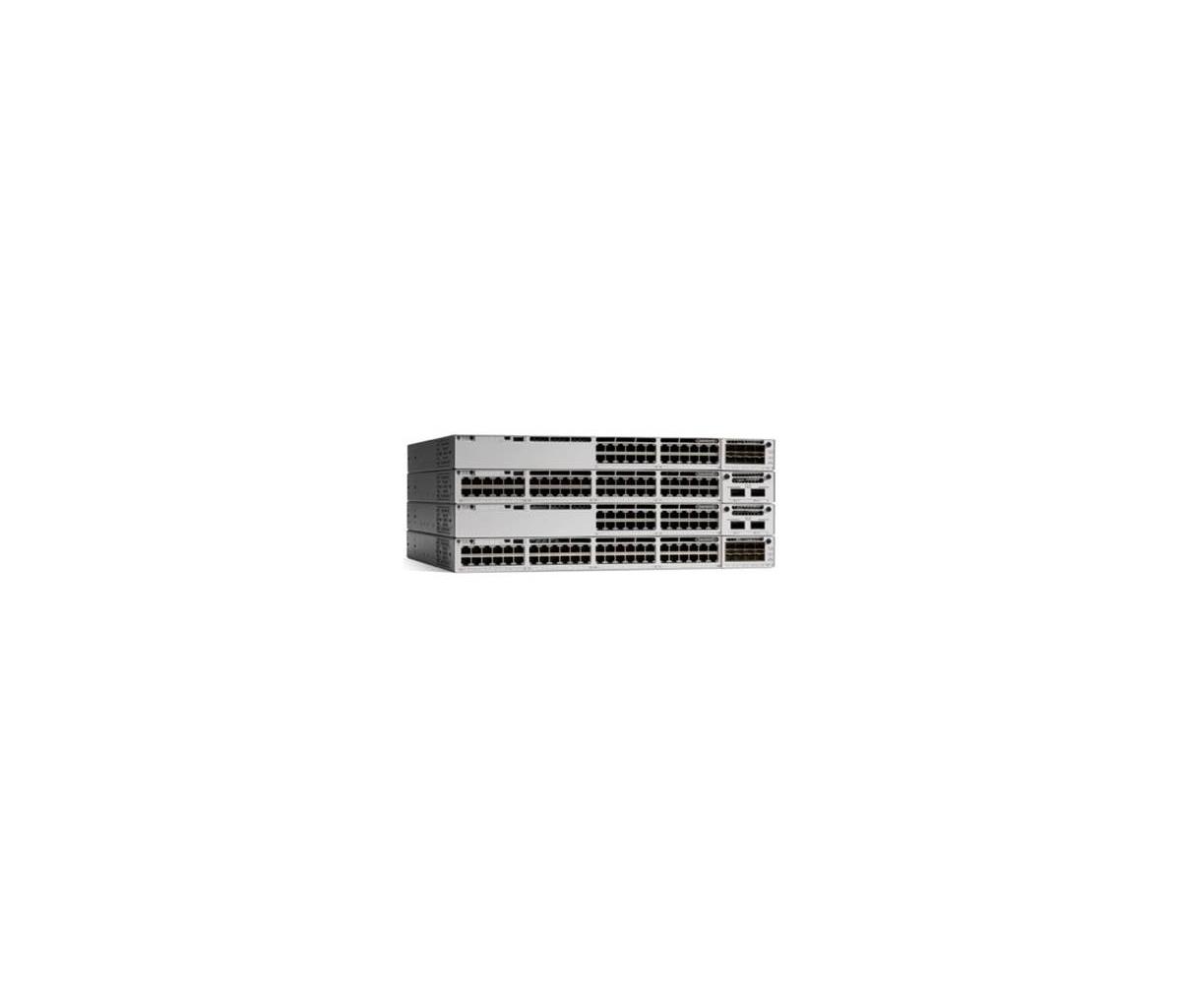

Catalyst C9300l 24-port Poe 4x10g Uplink 715wac Ps W/meraki

ITCurry #: 0918Y669 | Article #: C9300L-24P-4X-M
Price:
2287.09 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
MIB support Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity 1
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Full duplex Yes
Spanning tree protocol Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
IPv6 routes 16000
VLAN support Yes
Number of VLANs 4094
Data transmission
Switching capacity 128 Gbit/s
Forwarding rate 95.23 Mpps
MAC address table 32000 entries
Jumbo frames support Yes
Jumbo frames 9198
Security
DHCP features DHCP snooping
Access Control List (ACL) Yes
Access Control List (ACL) rules 5120
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Product colour Grey
LED indicators Yes
Performance
Internal memory 8000 MB
Flash memory 16000 MB
Mean time between failures (MTBF) 340.71 h
Power
Power source AC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) -5 - 40 øC
Storage temperature (T-T) -40 - 70 øC
Operating relative humidity (H-H) 5 - 90%
Operating altitude 0 - 3000 m
Weight & dimensions
Width 175 mm
Depth 192 mm
Height 17.3 mm
Weight 6.81 kg
Warranty
Base Warranty Non Non
