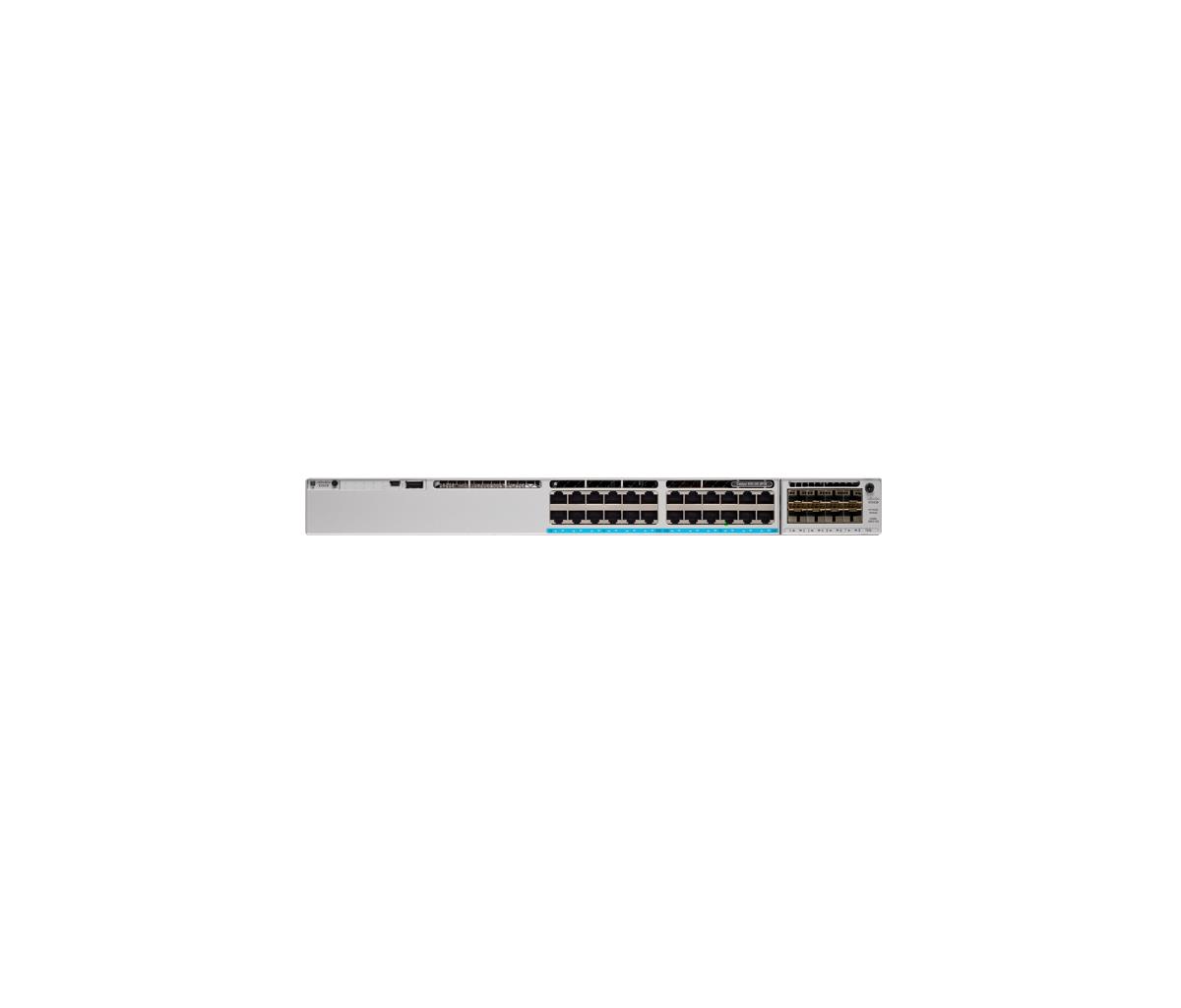

Catalyst 9300 Deep Buffer 24p Mgig Upoe Network Ad
ITCurry #: 0918T627 | Article #: C9300-24UXB-A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
| General | |
| Model | Catalyst 9300L |
| Type | Fixed Port |
| Technical Features | |
| Port Count | 24 |
| Management | Fully Managed |
| Routing/Switching | Layer 3 |
| Uplink Speed/Media | 10/100/1000 Copper |
| High Availability | Stacking |
| Routing/Switching Capacity | MAC Address Table Size : 32000 entries Jumbo Frame Support : 9198 bytes |
| Ports/Interfaces | RJ-45,sfp+ |
| Form Factor | |
| Mounting | Rack |
| Dimensions and Weight | |
| Width | 17.5 in (44.45 cm) |
| Height | 16.1 in (40.89 cm) |
| Depth | 1.7 in (43.18 mm) |
| Weight | 14.95 lb (6.78 kg) |
| Warranty | |
| Base Warranty | Non Non |
