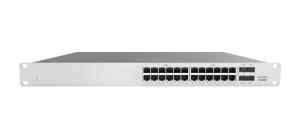

Apl-ms210-24 1g L2 Cld-mngd 24x Gige Switch
ITCurry #: 0918U221 | Article #: MS210-24-HW-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.
Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Throughput | 41.67 Mpps |
| MAC address table | 16000 entries |
| Number of trunks | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9578 |
| Security | |
| DHCP features | DHCP snooping, DHCP relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SNMP |
| BPDU filtering/protection | Yes |
| Root protection | Yes |
| Password protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Silver |
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
| Performance | |
| Physical stacking (units) | 8 |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 590165 h |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 15 W |
| Power consumption (max) | 24 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 484.6 mm |
| Depth | 250 mm |
| Height | 43.8 mm |
| Weight | 2.73 kg |
| Packaging data | |
| Screws included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
