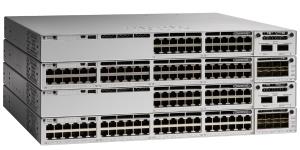

Apl - Meraki Ms390 24mgig L3 Upoe Switch

ITCurry #: 0918U227 | Article #: MS390-24UX-HW
Price:
5149.68 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

Overview

The Meraki MS390 addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The MS390 delivers resiliency with fast stack convergence and StackPower. The MS390 provides Adaptive Policy using an overthe-wire tag which segments traffic into security groups to deliver scalable security. The MS390 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes. By pooling & distributing power across MS390s using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.11ax, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ad
10G support Yes
Port mirroring Yes
IP routing Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Auto-negotiation Yes
VLAN support Yes
Number of VLANs 4094
Data transmission
Switching capacity 640 Gbit/s
Forwarding rate 476.19 Mpps
MAC address table 32000 entries
Static route Yes
Jumbo frames support Yes
Security
DHCP features DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
IGMP snooping Yes
Security algorithms 802.1x RADIUS, SNMP
Loop protection Yes
BPDU filtering/protection Yes
Authentication type RADIUS
Multicast features
Multicast support Yes
Protocols
Routing protocols OSPFv2, VRRP
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour White
Number of fans 3 fan(s)
Certification FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN, 61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317, CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, RoHS
Performance
Physical stacking (units) 8
Mean time between failures (MTBF) 214760 h
Power
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 162.7 W
Power consumption (max) 809.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Total Power over Ethernet (PoE) budget 560 W
Operational conditions
Operating temperature (T-T) -5 - 45 øC
Operating relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 445 mm
Depth 513 mm
Height 44 mm
Weight 8.25 kg
Packaging data
Quick start guide Yes
Rack mount kit Yes
Logistics data
Harmonized System (HS) code 85176990
Warranty
Base Warranty Non Non
