Product Information

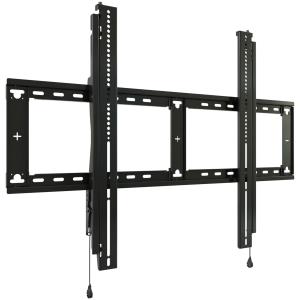

The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
Mounting | |
Minimum screen size | 109.2 cm (43") |
Maximum weight capacity | 90.7 kg |
Maximum screen size | 2.18 m (86") |
Maximum VESA mount | 915 x 450 mm |
Number of displays supported | 1 |
Mounting type | Wall |
Ergonomics | |
Height adjustment | Y |
Height adjustment type | Manual |
Tilt adjustment | Y |
Tilt angle range | -12 - 0ø |
Design | |
Product colour | Black |
Certification | TUV, UL Listed |
Weight & dimensions | |
Width | 965 mm |
Depth (min) | 5.1 cm |
Depth (max) | 5.1 cm |
Height | 487 mm |
Packaging data | |
Quantity per pack | 1 pair(s) |
Package weight | 8.2 kg |
Warranty | |
Base Warranty | Non Non |
