Product Information

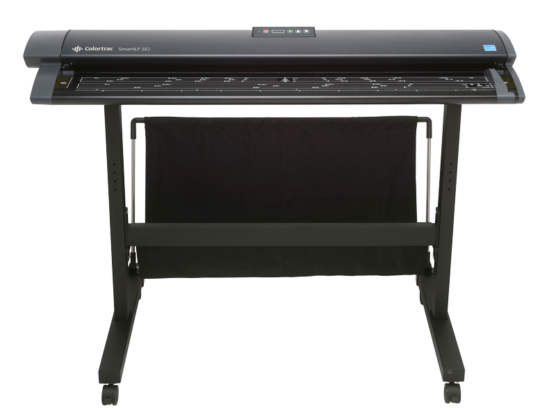

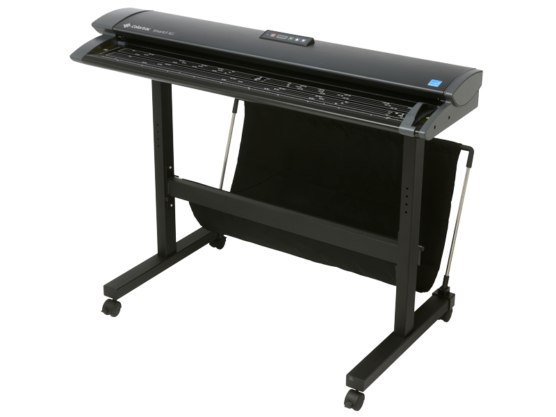

The SmartLF I Series – great scanners made even better
The Colortrac SmartLF SCi series scanners are perfect for everyday scanning tasks. An A0 / E size document can be scanned in full color at 12 inches per second, only 1 inch per second slower than its black and white scan speed. Connection to the host computer is straightforward and uses a standard USB 3.0 cable which is supplied with the scanner.
SingleSensor Technology
Colortrac SmartLF SCi series scanners feature one-piece scanning sensors spanning the full scan width of the device. Only from Colortrac, the appropriately named SingleSensor combines sensors and illumination in a single scan line for unbeatable ‘all-over’ scan accuracy and best-possible document illumination. Simple and reliable, SCi series scanners deliver high-quality scanning at an affordable cost.
NEW SmartWorks Imaging
Optimized all the way through, SmartWorks Imaging is clearer and easier to navigate than SmartWorks Pro. With a faster performance, revised preset control, better printer drivers and a new multi-page thumbnail pop-out feature, SmartWorks Imaging is the perfect productivity partner for SmartLF SCi and SmartLF SGi large format scanners.

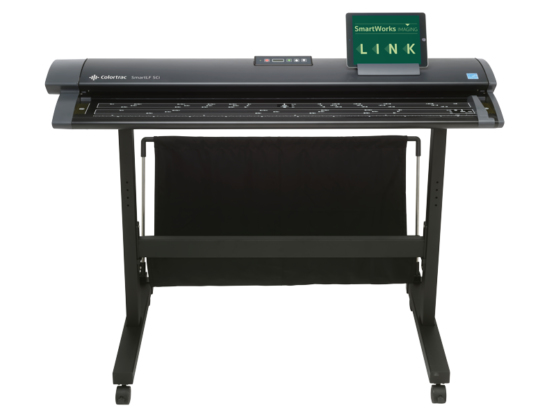

LINK Remote Control
Work smarter with LINK. This portable tablet app works with any computer already connected to the scanner and running SmartWorks Imaging to bring effortless control of the scanner to your fingertips. Use LINK to reduce body movement and to improve operator comfort while scanning.
Large Document Staging Area
SmartLF SCi scanners have a large, easy-to use staging platform that accepts documents for scanning face-upwards. Specifically designed to auto-detect the size of documents placed in the center of the scanner, documents can be loaded and prepared for scanning in just a few seconds. Documents conforming to standard drawing sheet sizes (manual mode) can be placed in the center or to the side depending on the choice of software. Magnetic paper guides are also provided ot make positioning easier. SCi 36 scanners have a maximum media width of 38” (965mm) and are able to scan documents and maps up to a thickness of 0.08? (2 mm).
Dynamic Document Feed
Unlike scanners using staggered sensors SmartLF SCi benefits from a simplified pressure roller arrangement to ensure that the document always stays in contact with the optics. The rollers either side of the scan line and the active soft pressure roller running the length of the SingleSensor are all motor driven allowing the scanner to dynamically respond and actively work against optical disturbances caused by creases and uneven documents. This unique technology ensures that delicate or fragile media such as newspaper and old blueprints can be safely and accurately scanned without problem.
SuperSpeed PC Interface
SmartLF SCi 36 uses a SuperSpeed USB 3.0 digital interface that allows the scanner to work at full speed on full width documents or to scan smaller documents at higher resolutions more quickly. Improved productivity is easy to achieve with the time-saving innovations built into every Colortrac I series scanner.
| Scanning | |
| Optical scanning resolution | 1200 x 1200 DPI |
| Enhanced scan resolution | 9600 x 9600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Film scanning | No |
| Design | |
| Scanner type | Sheet-fed scanner |
| Product colour | Black, Grey |
| Built-in display | No |
| Performance | |
| Sensor type | SingleSensor |
| Scan file formats | BMP, JPEG, JPG, PDF, PNG |
| Paper handling | |
| Maximum ISO A-series paper size | A0 |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Maximum scan width | 91.4 cm |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 53 W |
| Power consumption (standby) | 1.35 W |
| Power consumption (off) | 0.16 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 1280 mm |
| Package depth | 520 mm |
| Package height | 240 mm |
| Package weight | 27.5 kg |
| Weight & dimensions | |
| Width | 115 mm |
| Depth | 381 mm |
| Height | 152 mm |
| Weight | 24 kg |
| Packaging content | |
| Bundled software | SmartWorks Touch, SmartConnect (drivers, TWAIN, maintenance) |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Warranty | |
| Base Warranty | Non Non |
