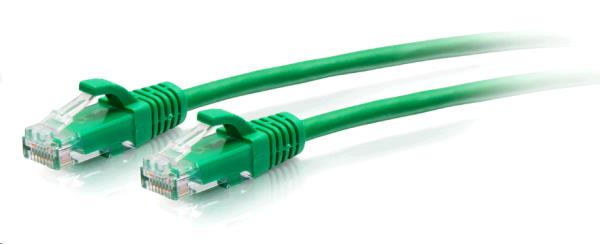

Patch cable Slim - CAT6a - UTP - Snagless - 90cm - Green
ITCurry #: 1842A200 | Article #: C2G30154-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Cat6a Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density cabling applications such as large conference rooms and datacenters. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
This network cable supports ethernet speeds up to 10Gbps at distances up to 328ft which is ideal for large conference rooms that may be leveraging HDBaseT technology. Cat6a technology doubles the minimum bandwidth of previous Cat6 cables and is five times more powerful than Cat5e. This increase in data speeds and bandwidth makes it the perfect Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) situations.
The use of 28AWG conductors allows for greater flexibility in those tight space installations where space is always crucial. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. And lastly, these cables are backed by a lifetime warranty to provide peace of mind.
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| Product colour | Green |
| Cable length | 0.9 m |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Round |
| AWG wire size | 28 |
| Data transfer rate | 10000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Snagless cable boot | Yes |
| Weight & dimensions | |
| Outer diameter | 4.8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Compliance certificates | CE, REACH, RoHS |
