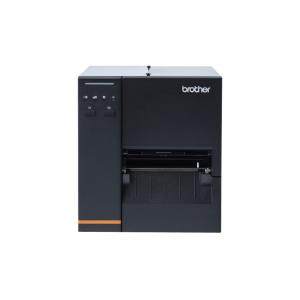

Tj-4522tn - Industrial Label Printer - Thermal Transfer - 104mm - USB / Serial / Lan
ITCurry #: 0735A035 | Article #: TJ-4522TN-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4522TN industrial label printer.
With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity and an internal rewinder - this durable industrial printer has been built with you in mind.
Experience efficient labelling solutions and performance you can rely on with the TJ-4522TN industrial label printer.
Rewind and collect
Automatically wind labels onto a roll during the printing process so you don't have to collect the labels when printed.
The Brother TJ-4522TN enables you to print as many labels as needed, for use whenever required.
Integrate with ease
With the Brother TJ label printers, there is no need to worry about integration.
Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
High quality thermal printing
The TJ-4522TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time.
With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.
First-class user experience
Offering a touch panel display for instant feedback, the TJ-4522TN has been designed with the user in mind. Make life easy for your workers by troubleshooting issues in just a couple of taps.
Connectivity as standard
USB, USB Host, Serial and Ethernet are included as standard for the TJ industrial label printers.
An optional WiFi and Bluetooth module is also available as an accessory to meet your connectivity needs.
In-built durability
Brother industrial printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing.
The high volume industrial printers feature a metal frame and cover as well as other durable design features to ensure they perform at their best, even in the toughest production environments.
| Printing | |
| Print technology | Direct thermal / Thermal transfer |
| Colour | No |
| Maximum resolution | 300 x 300 DPI |
| Print speed | 305 mm/sec |
| Maximum printing width | 10.4 cm |
| Minimum print length | 5 mm |
| Maximum print length | 11.43 m |
| Paper handling | |
| Ribbon width | 11.4 cm |
| Ribbon length | 600 m |
| Maximum label width | 11.4 cm |
| Maximum roll diameter | 20.3 cm |
| Core diameter | 7.62 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| USB port | Yes |
| RS-232 ports | 1 |
| Optional connectivity | Bluetooth, Wireless LAN |
| Performance | |
| Page description languages | DPL, EPL2, ZPL II |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-E |
| Number of fonts | 8 |
| Design | |
| Product colour | Black |
| Colour display | Yes |
| Control type | Buttons, Touch |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 25 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 60 øC |
| Weight & dimensions | |
| Width | 276 mm |
| Depth | 502 mm |
| Height | 412 mm |
| Weight | 18.9 kg |
| Packaging content | |
| Cables included | AC |
| Software development kit (SDK) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| LED indicators | Error, Power, Status |
| Languages support | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
| Warranty | |
| Base Warranty | Non Non |
