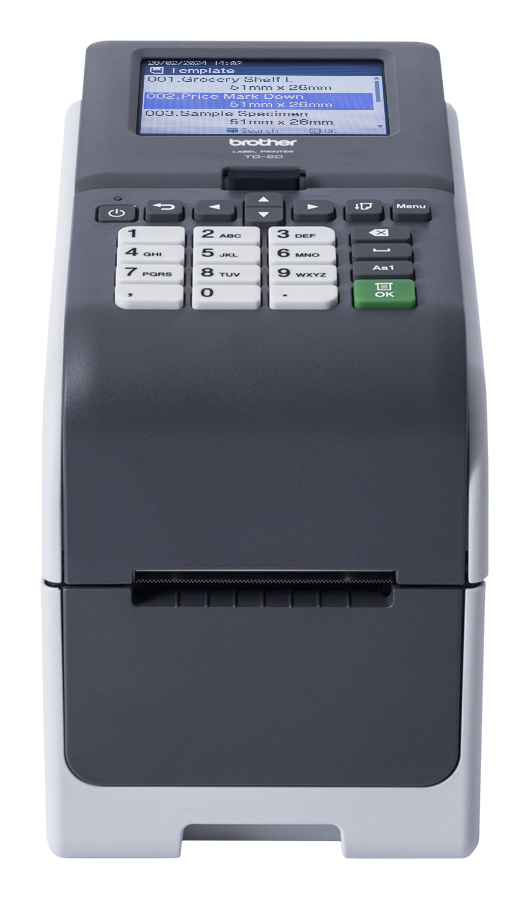

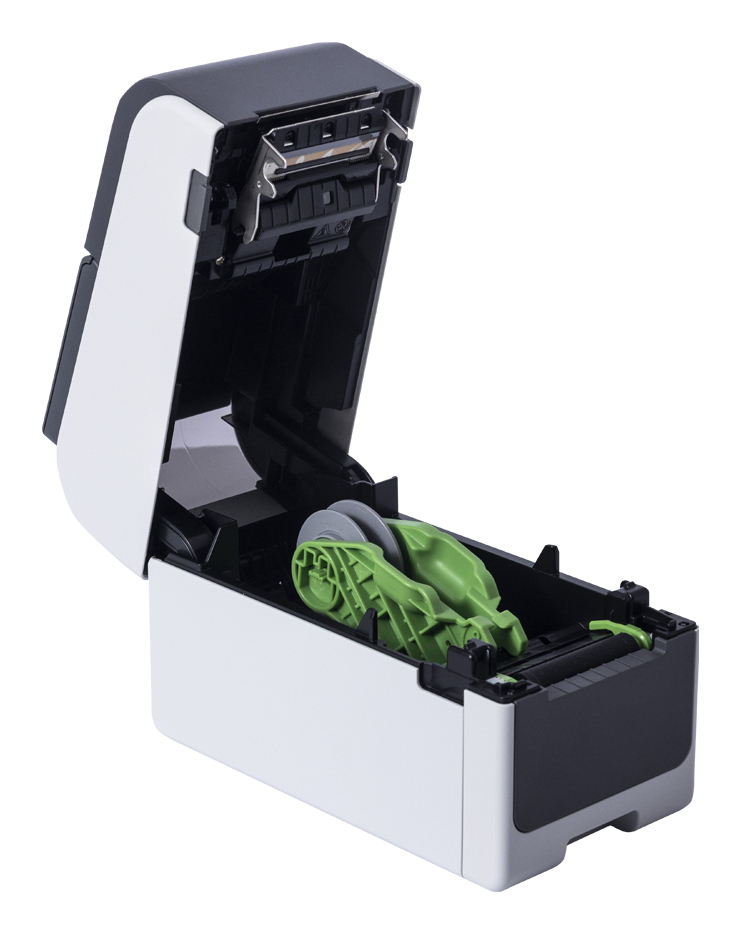

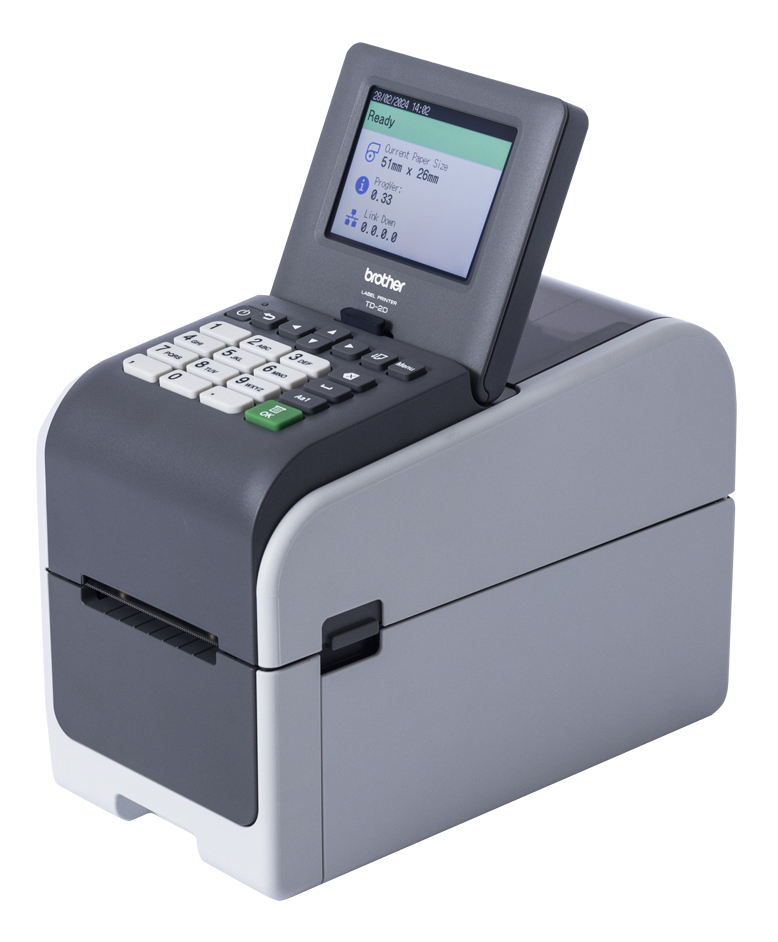

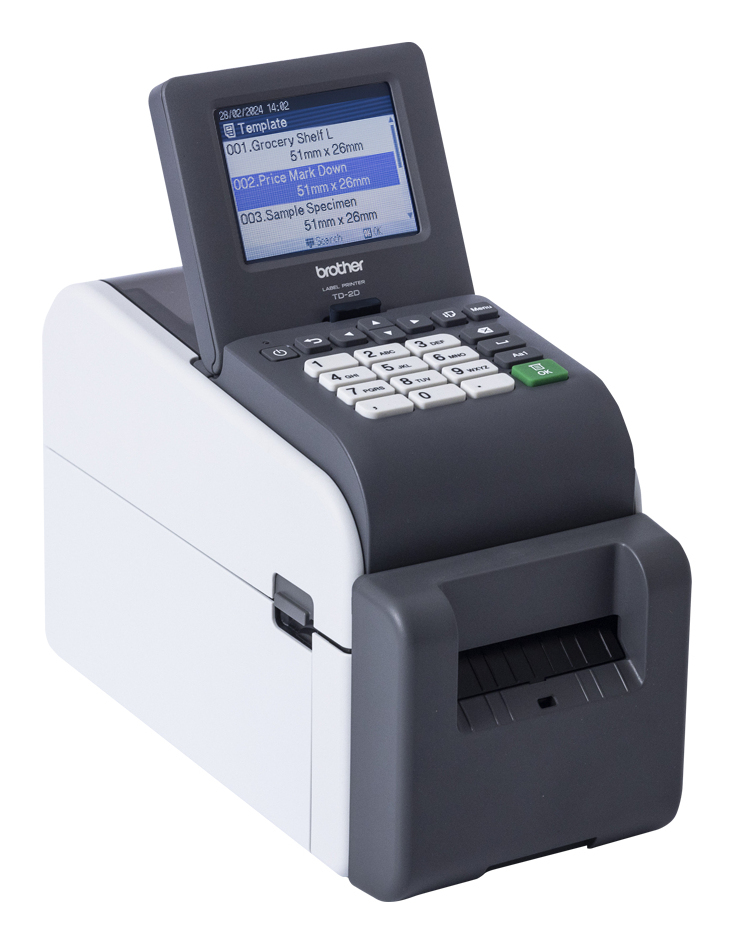

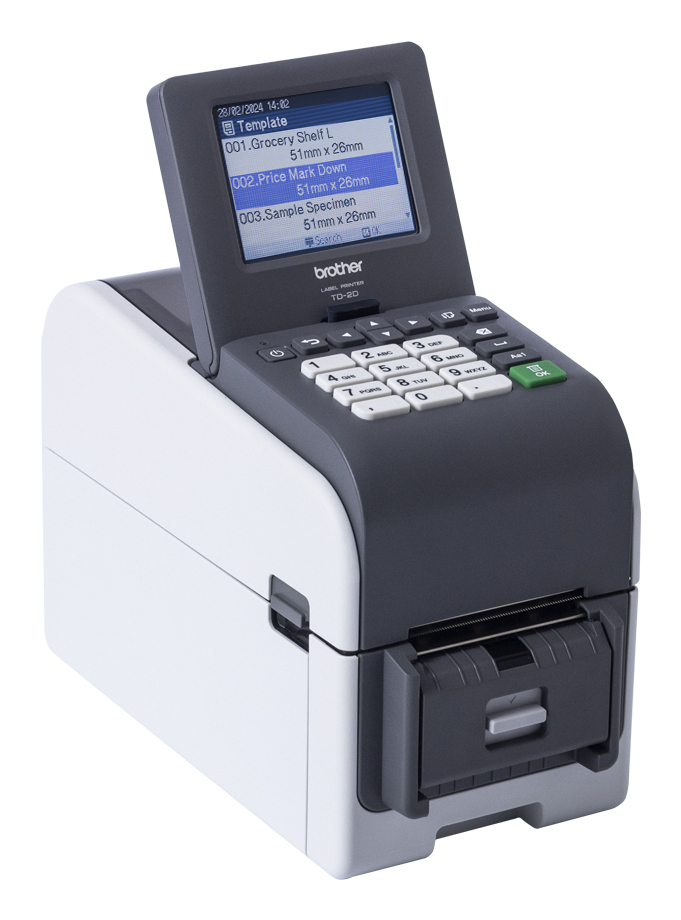

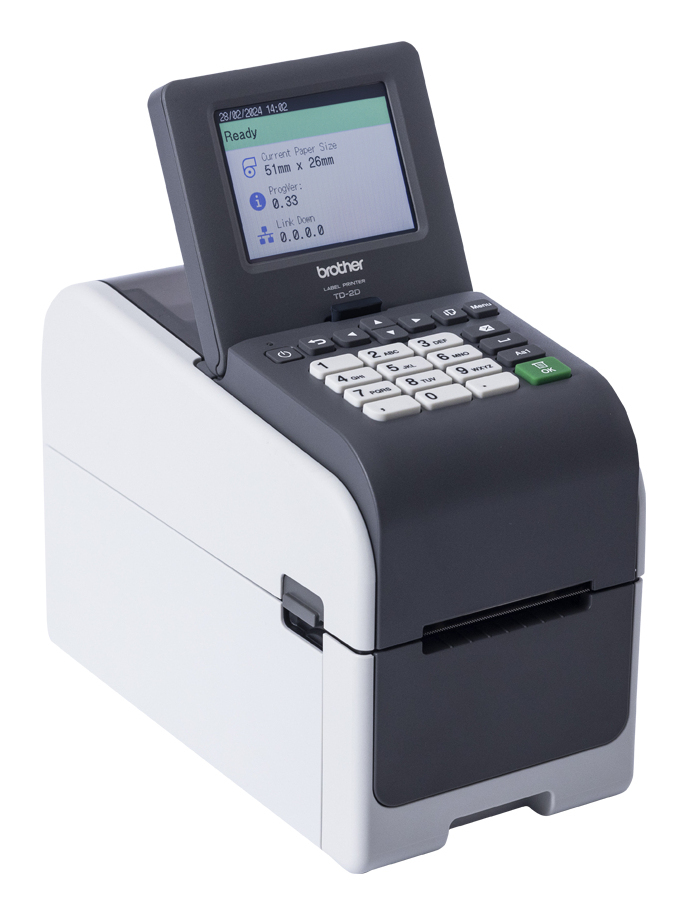

Td-2320dsa203 - Desktop Label Printer - Direct Thermal - 63mm - USB / Ethernet
ITCurry #: 0735A785 | Article #: TD2320DSA203Z1
Price:
548.36
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
Product Information

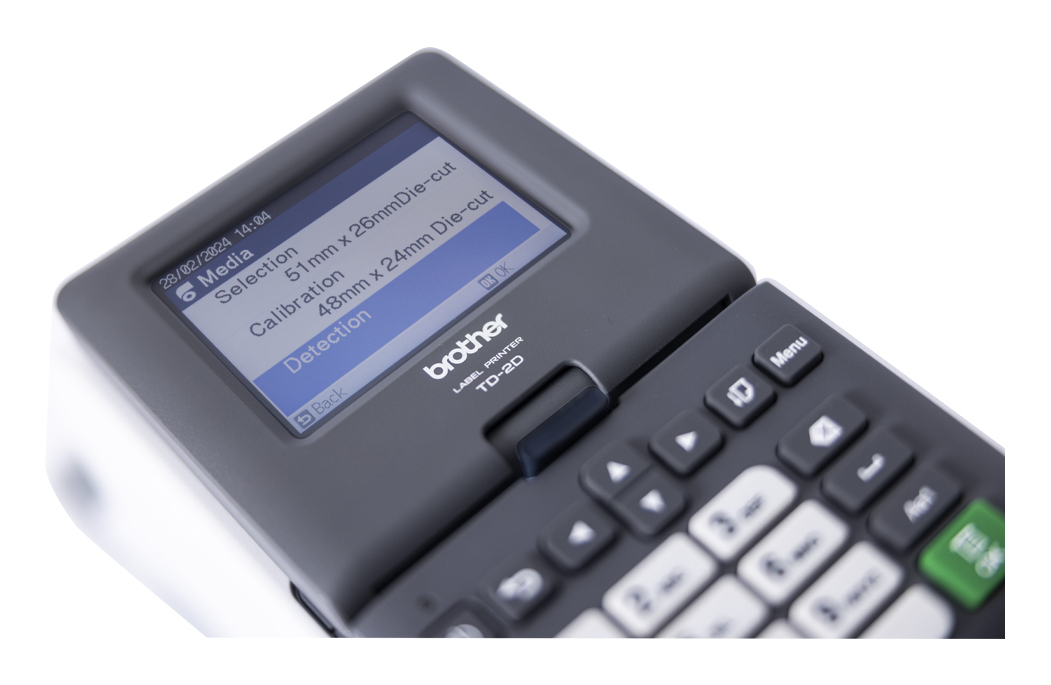

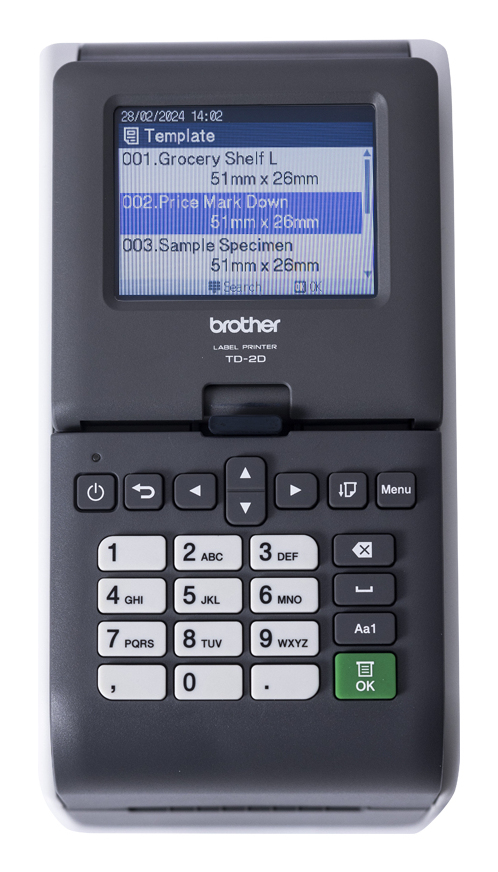

Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320DSA203 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2320DSA203 works as a standalone printing solution with its 3.5" colour touch screen display and keyboard.
With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.
Printing | |
Print technology | Direct thermal |
Colour | No |
Maximum resolution | 203 x 203 DPI |
Print speed | 152 mm/sec |
Maximum printing width | 5.9 cm |
Minimum print length | 6.4 mm |
Paper handling | |
Media thickness | 0.058 - 0.279 mm |
Core diameter | 3.81 cm |
Ports & interfaces | |
Connectivity technology | Wired |
Ethernet LAN | Yes |
Wi-Fi | No |
USB port | Yes |
Performance | |
Internal memory | 256 MB |
Flash memory | 64 MB |
Built-in barcodes | AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93 |
Design | |
Product colour | Black, Grey |
Built-in display | Yes |
Display diagonal | 8.89 cm (3.5") |
Colour display | Yes |
Control type | Buttons, Touch |
Power | |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power source type | AC |
System requirements | |
Windows operating systems supported | Windows 10, Windows 11 |
Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Linux operating systems supported | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 5 - 40 øC |
Storage temperature (T-T) | -20 - 60 øC |
Weight & dimensions | |
Width | 119 mm |
Depth | 224 mm |
Height | 176 mm |
Weight | 1.77 kg |
Packaging data | |
Package width | 306 mm |
Package depth | 181 mm |
Package height | 325 mm |
Package weight | 2.9 kg |
Packaging content | |
Cables included | AC, USB |
Logistics data | |
Pallet gross height | 17.5 cm |
Pallet gross weight | 631.2 kg |
Master (outer) cases per pallet | 20 pc(s) |
Master (outer) cases per pallet layer | 4 pc(s) |
Layers per pallet | 5 pc(s) |
Products per pallet | 60 pc(s) |
Technical details | |
Pallet type | 800 x 1200 mm |
Other features | |
Country of origin | Vietnam |
Warranty period | 3 year(s) |
Spare part retention | 5 year(s) |
Warranty | |
Base Warranty | Non Non |
