Pt-e560btvp - Handheld Label Printer - Thermal Transfer - 24mm - USB / Bluetooth - Qwerty
ITCurry #: 0735A762 | Article #: PTE560BTVPQL1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

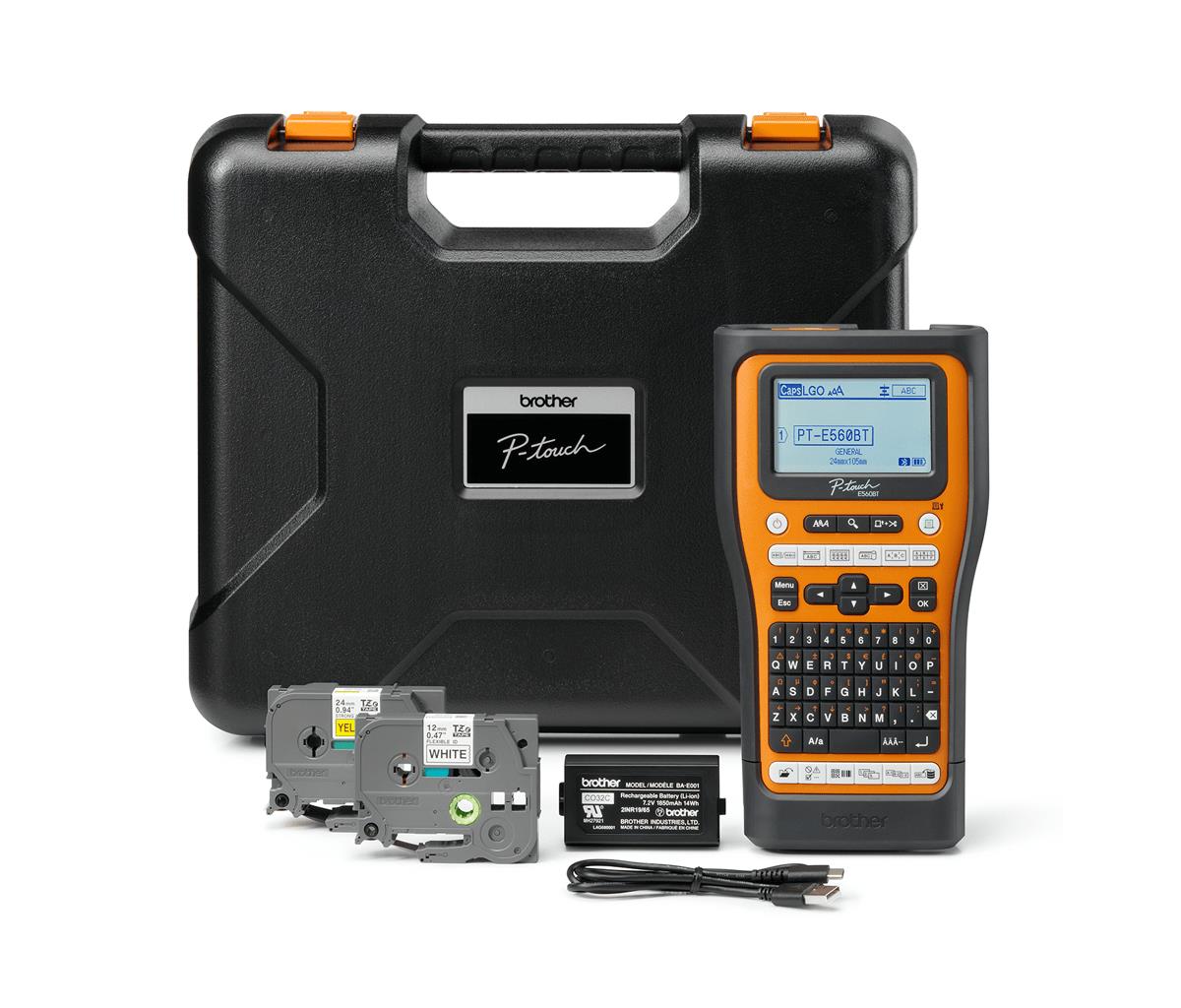

Brother PT-E560BTVP Pro Labelling Machine with integrated Bluetooth, carry case and 2 x TZe-tapes
Built with electrical and network professionals in mind, print durable, industry-compliant labels on demand.

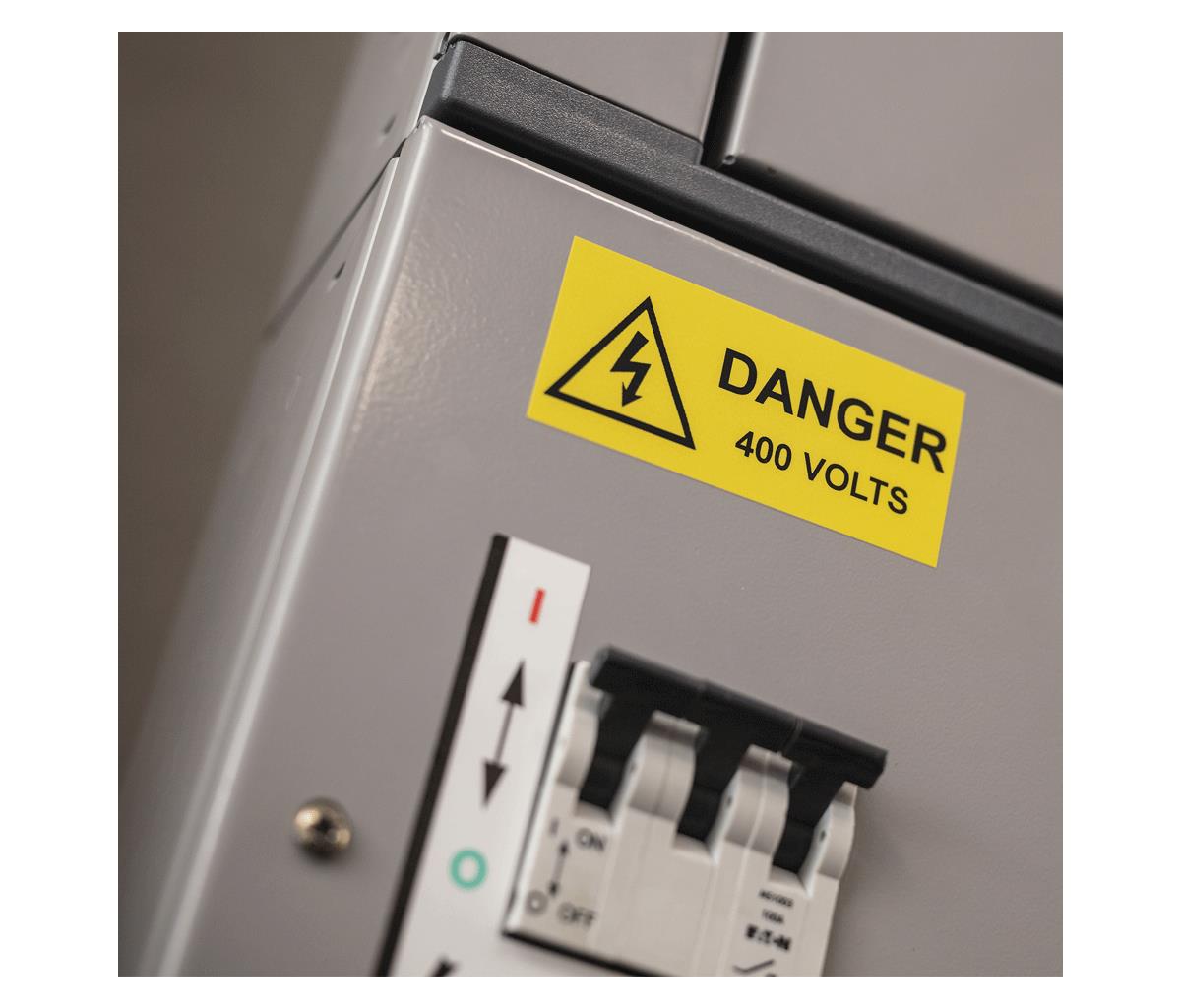

Clear identification and safety are critical for any electrical or datacom installation, including danger & warning signs, switch gear, electrical wires, consumer units, patch panels, racks and cabinets, CAT5E / CAT6A network cabling and more.
Equipped with a large graphic display and dedicated functions for the most common labelling tasks, the PT-E560BTVP is your ideal partner for producing long-lasting, durable labels on-demand, saving you time on site. Integrated Bluetooth offers the flexibility to connect to a PC, smartphone or tablet and print labels that comply with all industry standards and regulations using Brother's Pro Label Tool App, iLink&Label app and P-touch Editor software.
Compatible with several Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - so you can be confident that you're getting the job done properly and professionally.
PT-E560BTVP Pro Labelling Machine with integrated Bluetooth, PC Connection and possibility to print labels from Smartphones

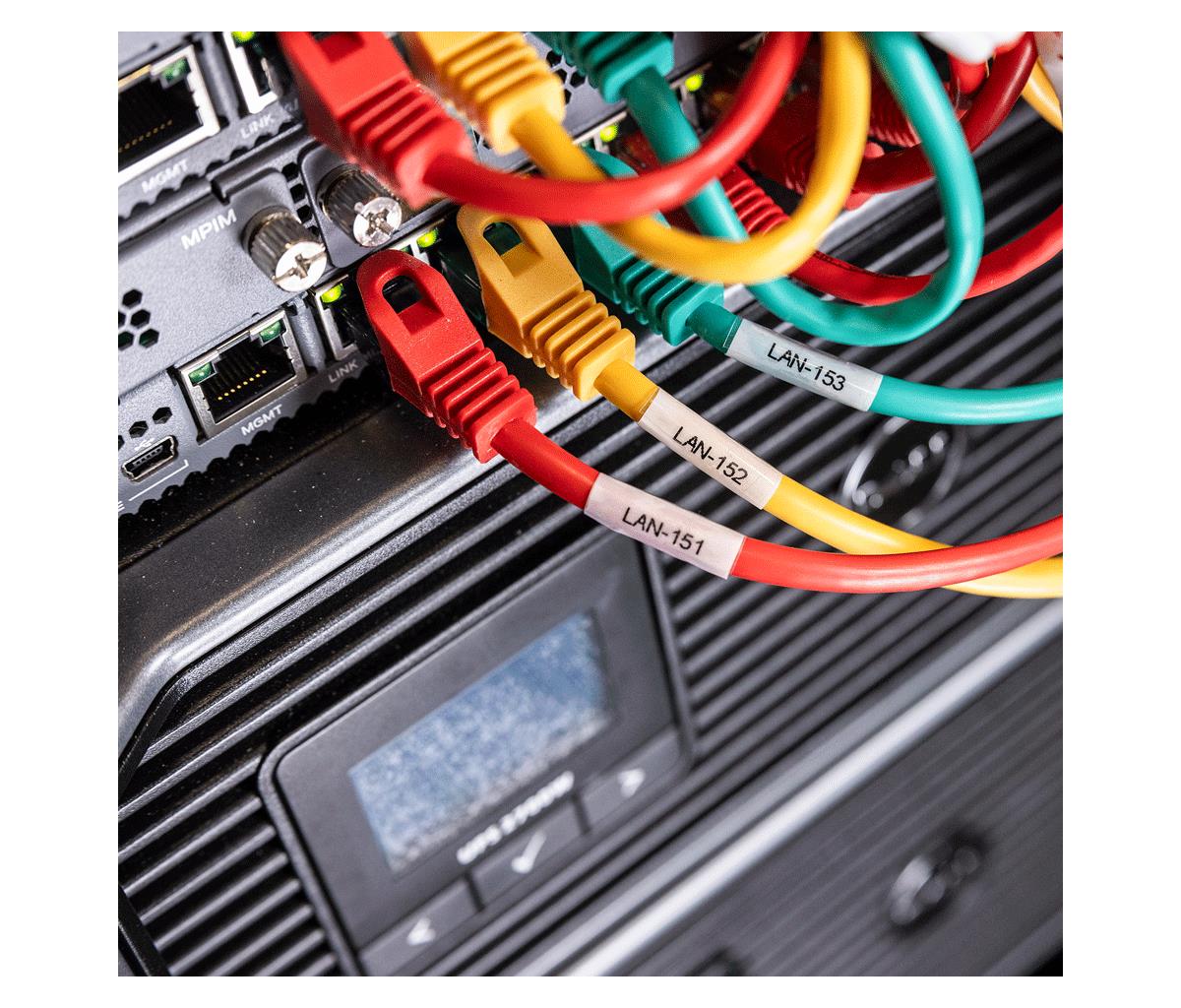

Ensuring cables, conduits, switches and sockets are clearly identified with long lasting, durable labels is essential for electricians, datacom, telecom and security equipment installers.
The Brother P-touch E560BTVP creates labels that help address ANSI/EIA/TIA-606A/B, and that meet the UL-969 standards. A built-in automatic cutter with easy-peel function ensure you can quickly apply your labels in all conditions.
Specialist tapes for industrial use have been developed for specific labelling tasks, such as Heat Shrink tube for permanent cable identification, Flexible ID tape for making flag labels for cables, and strong adhesive tape for rough, uneven surfaces.
User-friendly design

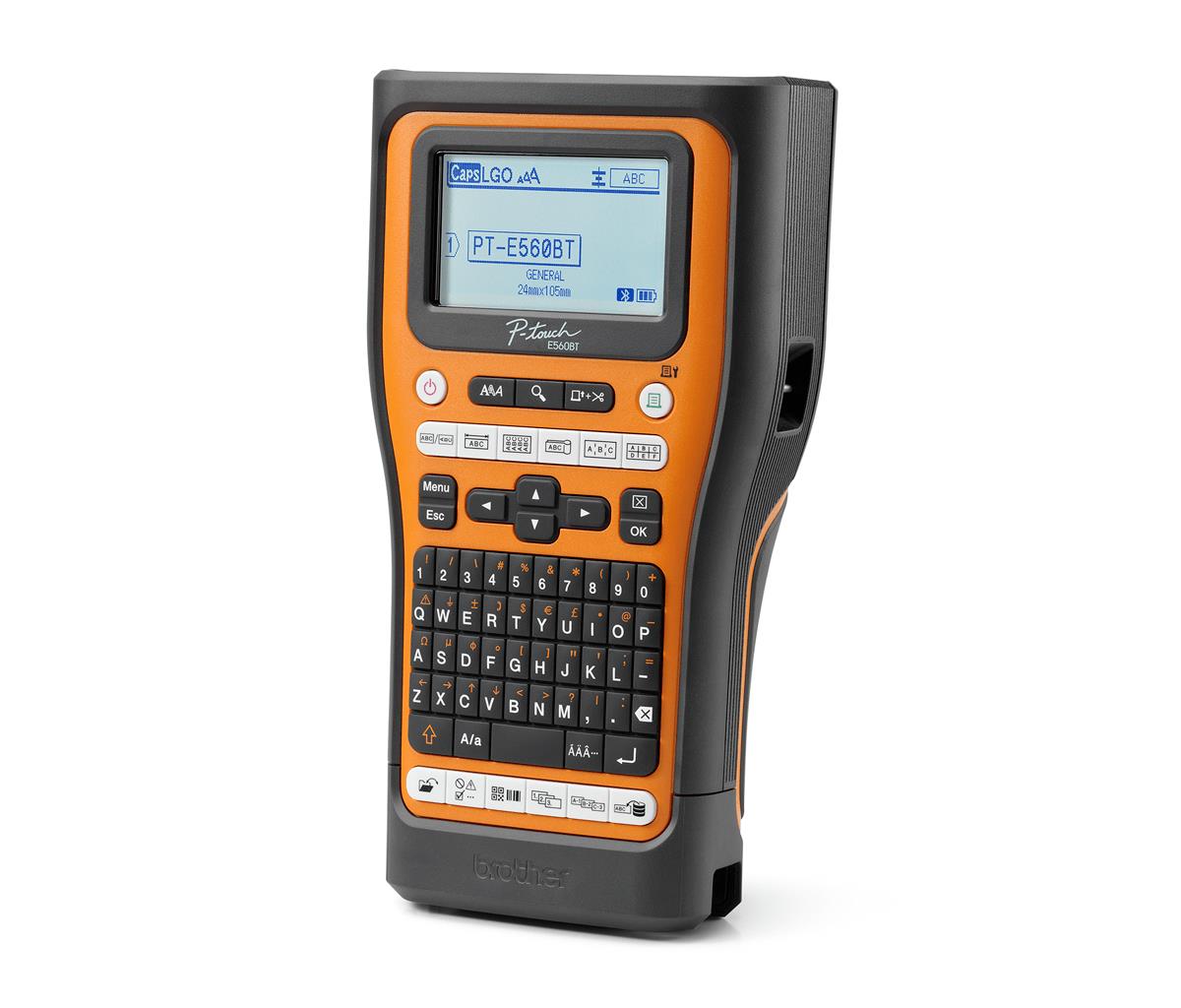

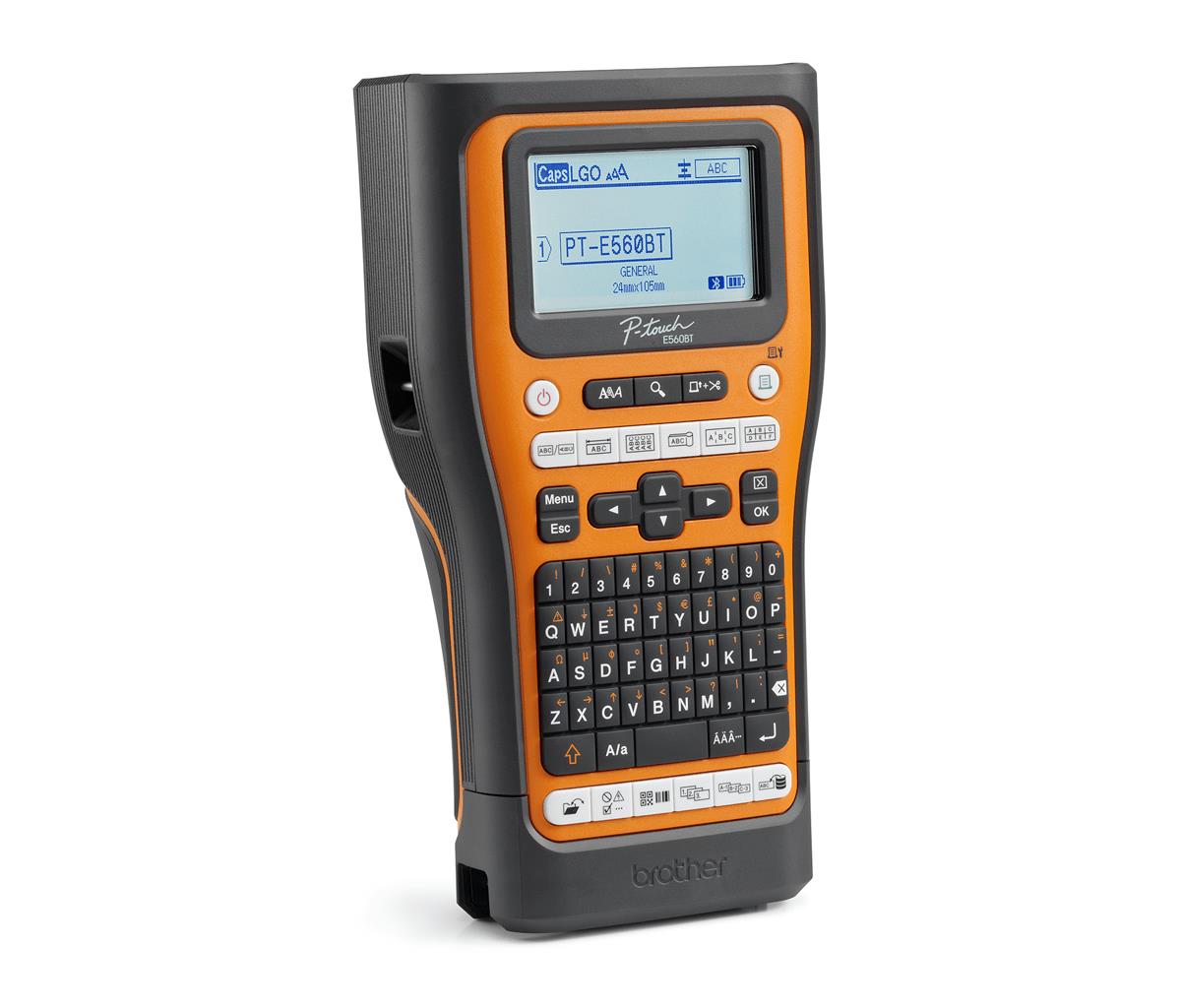

With a built-in QWERTY keyboard, large backlit display with print preview and dedicated labelling functions at your fingertips, the PT-E560BT Pro Labelling Machine simplifies label creation and printing, boosting productivity on-site.
Print labels up to 24mm wide on-demand, wherever required.
Advanced cutter
Choose to fully cut each individual label or just cut through the front part of the label whilst leaving it attached to the backing paper.
This "half cut" feature produces multiple labels in a long continuous strip, keeping them in sequential order and quick and easy to peel and apply to your cables and equipment.
Built to last, with labels that match
The Brother Pro Tape range has been developed and tested to meet the needs of professionals who require durable, long term identification solutions and includes specialist tapes such as strong adhesive, flexible ID (for wrapping around cables or creating flag labels), tamper evident and security tapes.
These laminated tapes are incredibly durable, and have been tested to withstand the effects of water, temperature extremes, moisture, chemicals, oil and abrasion.
Instant access to common industry templates
6x one-touch keys are located on the front panel of the machine and give instant access to label templates for general, faceplate, cable flag, cable wrap, patch panel and punchdown block identification, saving you time on-site.
Pro Label Tool App
The PT-E560BT supports Brother's free Pro Label Tool app for Apple and Android mobile devices.
With its wide range of templates, such as danger and caution signs and cable identification, you can quickly and conveniently design industry-compliant labels on your smartphone or tablet to print one your labelling machine via Bluetooth. All you need to do is download the application and then search for your supported device.
Brother iLink&Label app
Brother's E-Series labelling machines integrate seamlessly with LinkWare live via the Brother iLink&Label app to provide the ultimate on-the-job workflow solution for large network labelling projects, saving you time, reducing errors and amplifying productivity.
Simply download Broher's iLink&Label app and connect to your Fluke Networks LinkWare live project, select the required cable identifiers and wirelessly transfer them directly to your Brother label printer at the click of a button - it's that simple!
Stay compliant

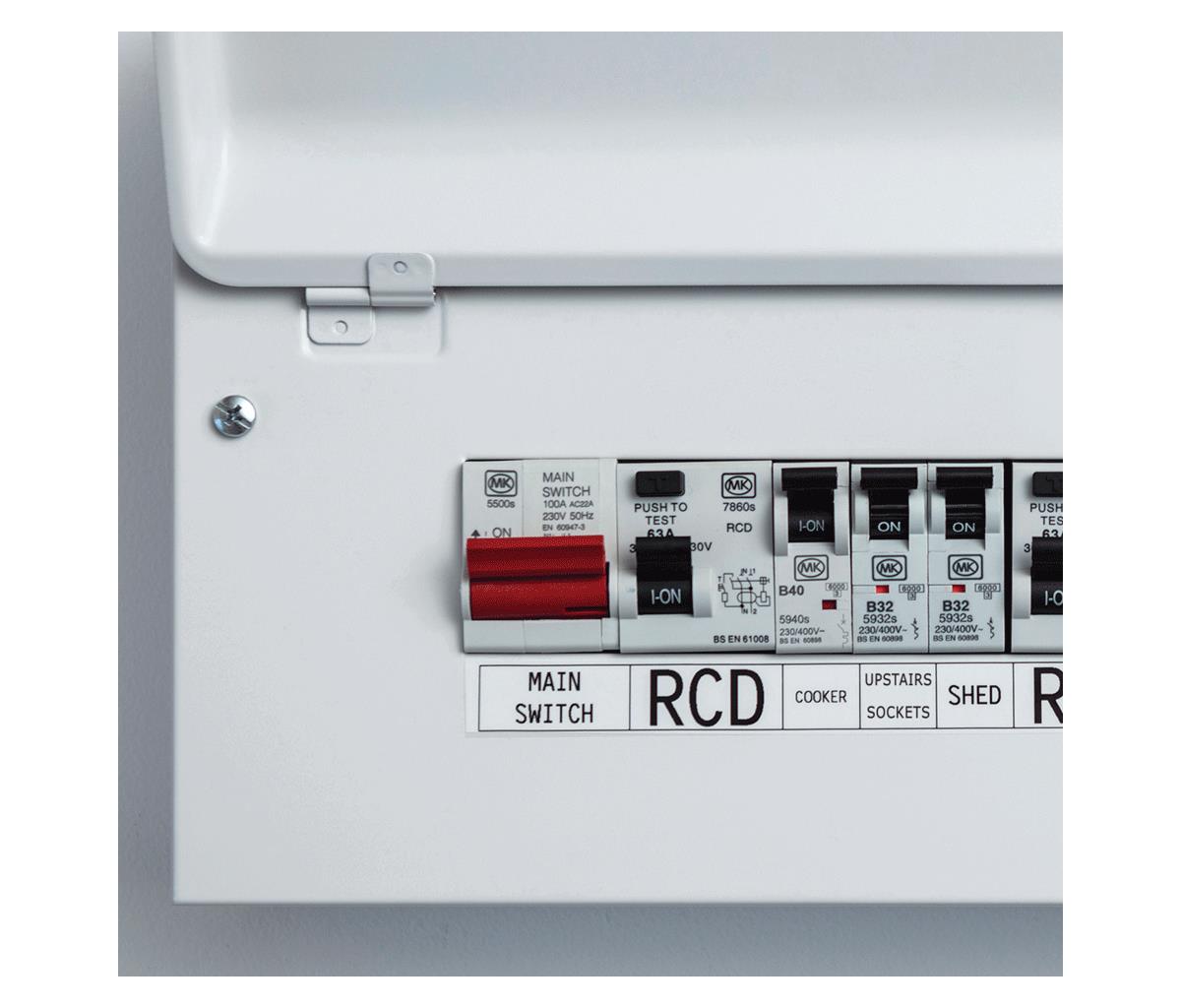

Using Brother's Pro Label Tool or P-touch Editor Software, benefit from automatic loading of ready-to-print label templates for cables, patch panels, faceplates, RCD consumer units, testing/inspecting/warning labels and network equipment identification from Brother's cloud server.
Meaning they're always up to date with the latest wiring regulations and standards.
| Printing | |
| Print technology | Thermal transfer |
| Colour | No |
| Maximum resolution | 180 x 180 DPI |
| Number of printable dots | 128 dot |
| Print speed | 20 mm/sec |
| Maximum printing width | 2.4 cm |
| Maximum print height | 1.8 cm |
| Vertical printing | Yes |
| Mirror printing | Yes |
| Text alignment | Center, Justify, Left, Right |
| Paper handling | |
| Autocutter | Yes |
| Half-cutter | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| USB port | Yes |
| Performance | |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E |
| Number of fonts | 14 |
| Tape type | HSE/TZe |
| Underline | Yes |
| Design | |
| Product colour | Black, Orange |
| Built-in display | Yes |
| Display | LCD |
| Backlight display | Yes |
| Keyboard layout | QWERTY |
| Power | |
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Battery technology | Lithium-Ion (Li-Ion) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mobile operating systems supported | Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16 |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 244 mm |
| Height | 80 mm |
| Weight | 1.05 kg |
| Packaging data | |
| Package width | 126 mm |
| Package depth | 334.4 mm |
| Package height | 393 mm |
| Package weight | 3.49 kg |
| Packaging content | |
| Cables included | USB |
| Cartridges quantity | 2 pc(s) |
| Batteries included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
| Carrying case | Yes |
| Wrist strap included | Yes |
| Manual | Yes |
| Other features | |
| Number of frames | 7 |
| Warranty | |
| Base Warranty | Non Non |
