Product Information

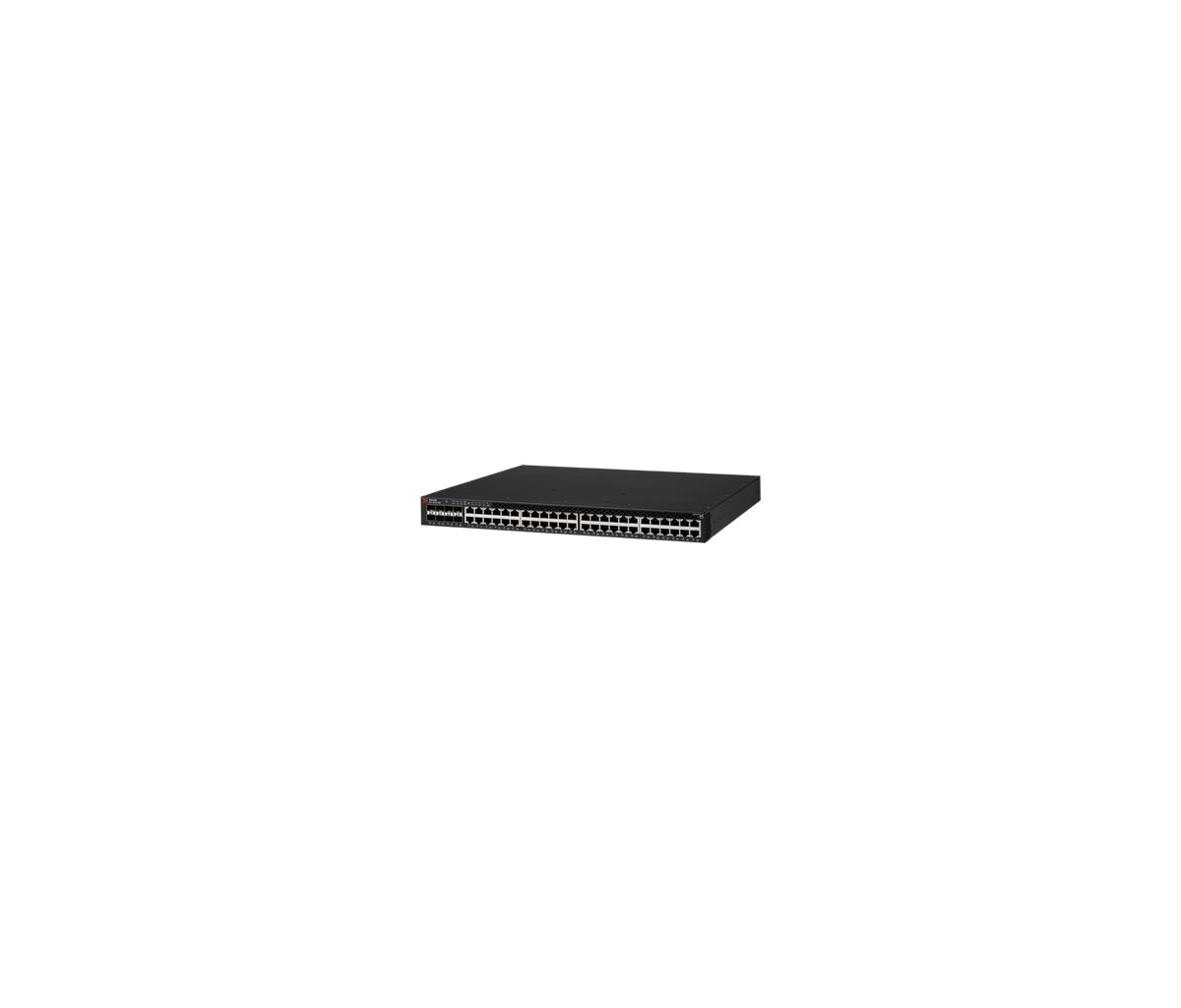

The Brocade ICX 6610 Switch redefines the economics of enterprise networking by providing unprecedented levels of performance, availability, and flexibility in a stackable form factor—delivering the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIB-II |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP/SFP+ slots quantity | 8 |
| SFP+ module slots quantity | 8 |
| Console port | RJ-45 |
| ExpressCard slot | No |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | No |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Data transmission | |
| Switching capacity | 528 Gbit/s |
| MAC address table | 32000 entries |
| Number of static routes | 16000 |
| Jumbo frames support | Yes |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSH-2 |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP, Telnet, TFTP, DHCP |
| Supported network protocols | IPV6 |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Safety | CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1; EN 60825-1; EN 60825-2; VCCI Class A; ICES-003 |
| Electromagnetic compatibility | FCC Class A (Part 15); EN 55022/CISPR-22; EN 61000-3-2; EN 61000-3-3; EN 61000-6-3 |
| Certification | EN 61000-6-1 EN 55024 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11 RoHS |
| Performance | |
| Compatible operating systems | Windows |
| Noise level | 39.6 dB |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 429 mm |
| Depth | 406.4 mm |
| Height | 44 mm |
| Weight | 7.1 kg |
