4-port Keyboard/mouse Switch
ITCurry #: 0600H570 | Article #: F1DN104K-3EA-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Belkin Secure KM switches are ideal for data-intensive applications where information from multiple sources of varying security classes must be viewed on multiple displays in real time. The Belkin Secure KM switches comply with the latest NIAP Protection Profile Ver. 3.0 (PP3.0) standard. PP3.0 ensures agencies are using the latest security safeguards relating to Keyboard, Pointing Device, and Audio security.
Seamless cursor and keyboard switching (SCS) allows the user to change automatically from one highly isolated computer system to another by simply moving the mouse cursor between display borders, without having to push any buttons. Every system remains visible on its own display(s), continuously and simultaneously, while the Belkin Secure KM keeps the system isolated and secure.
Analysts and operators in defense and intelligence, banking and trading, or complex command and control environments will benefit immediately and immensely from seamless switching via the mouse.

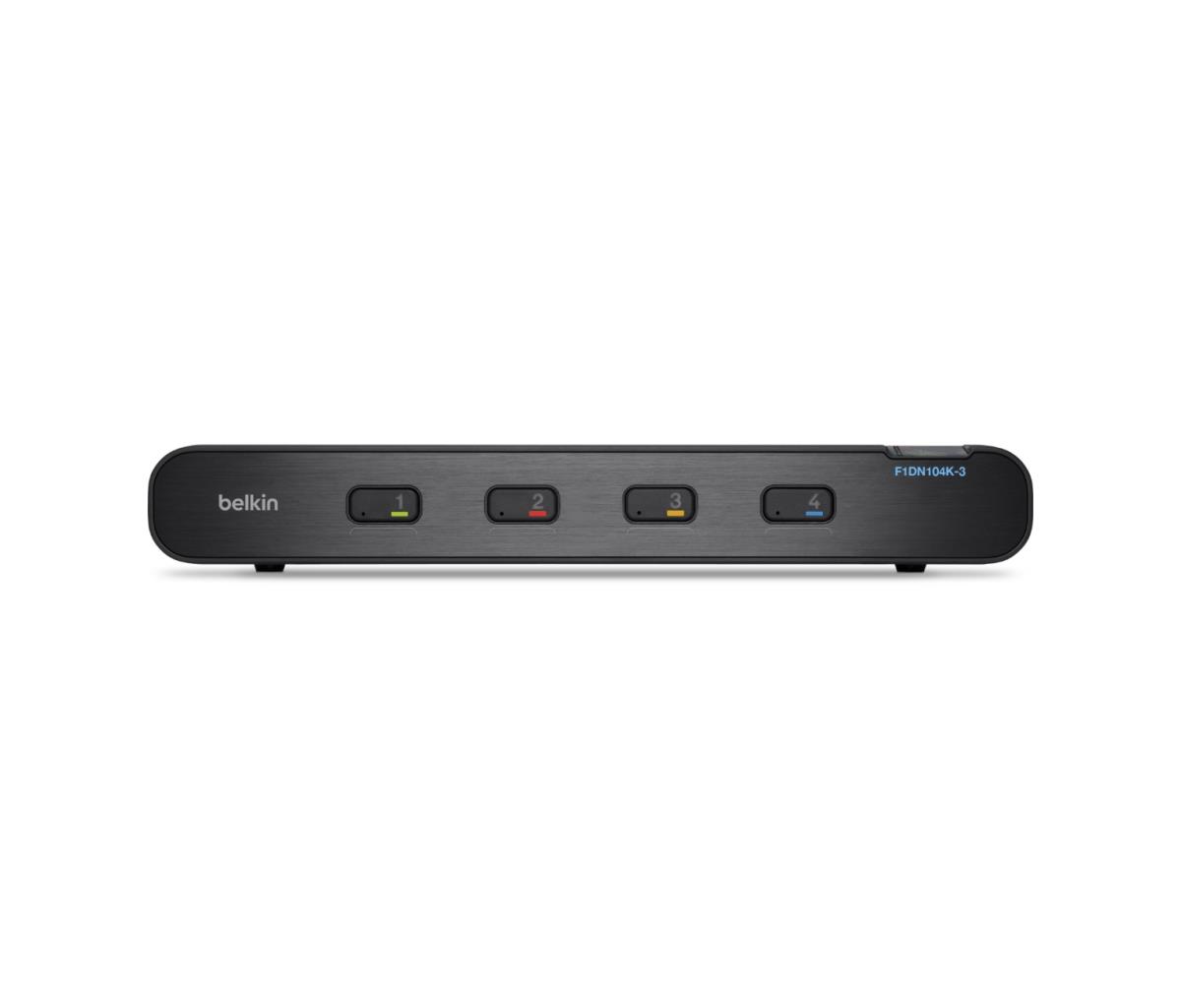

Model F1DN104K-3 supports up to 4 PCs and 16 displays, in a desktop form factor that can also be mounted under the desk.
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Audio connections | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Display | |
| Built-in display | No |
| Power | |
| Input voltage | 100 - 240, 12 V |
| Input current | 1.5 A |
| Warranty | |
| Base Warranty | Non Non |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 317.5 mm |
| Depth | 162.6 mm |
| Height | 48.3 mm |
| Weight | 1.9 kg |
