Product Information

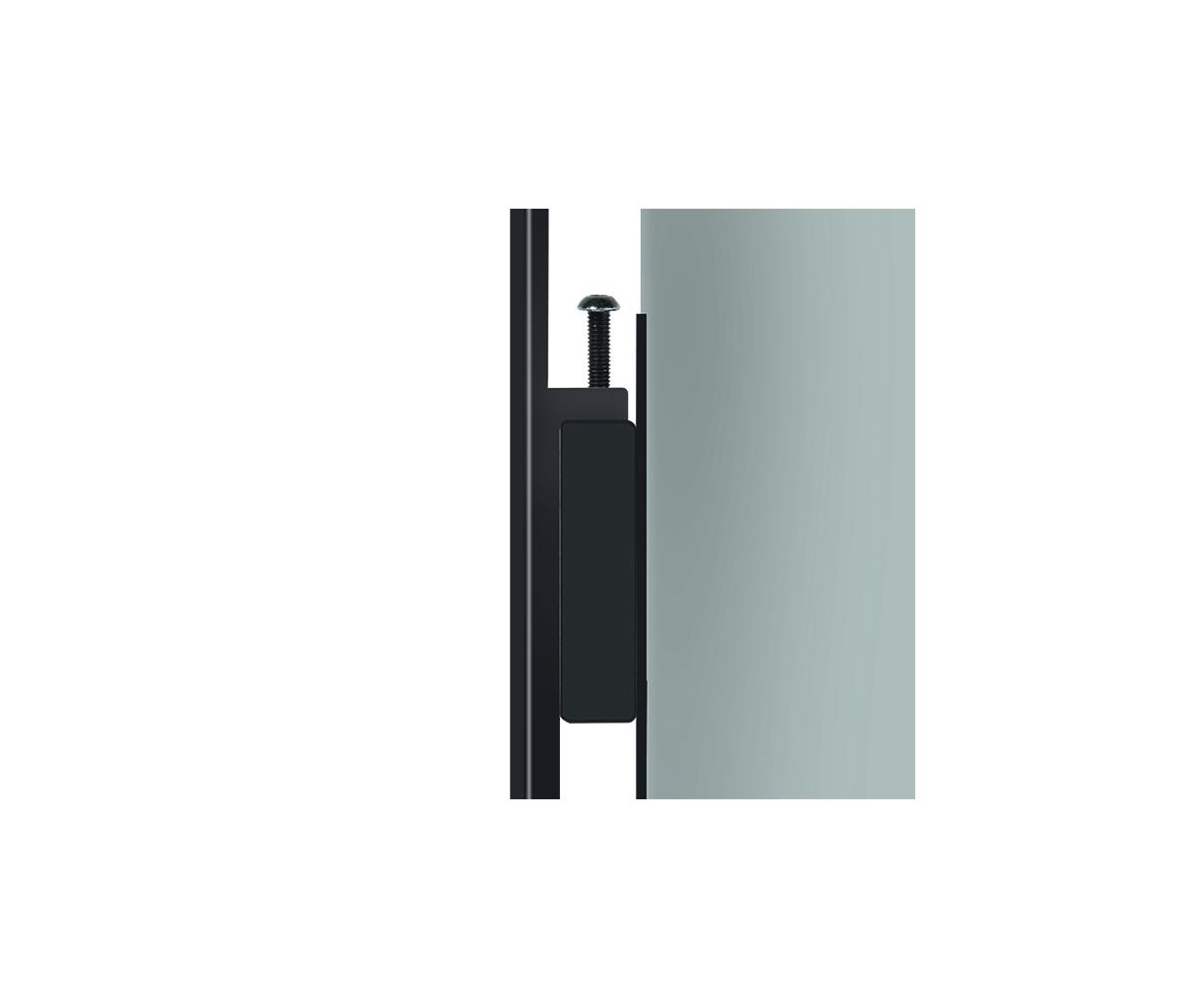

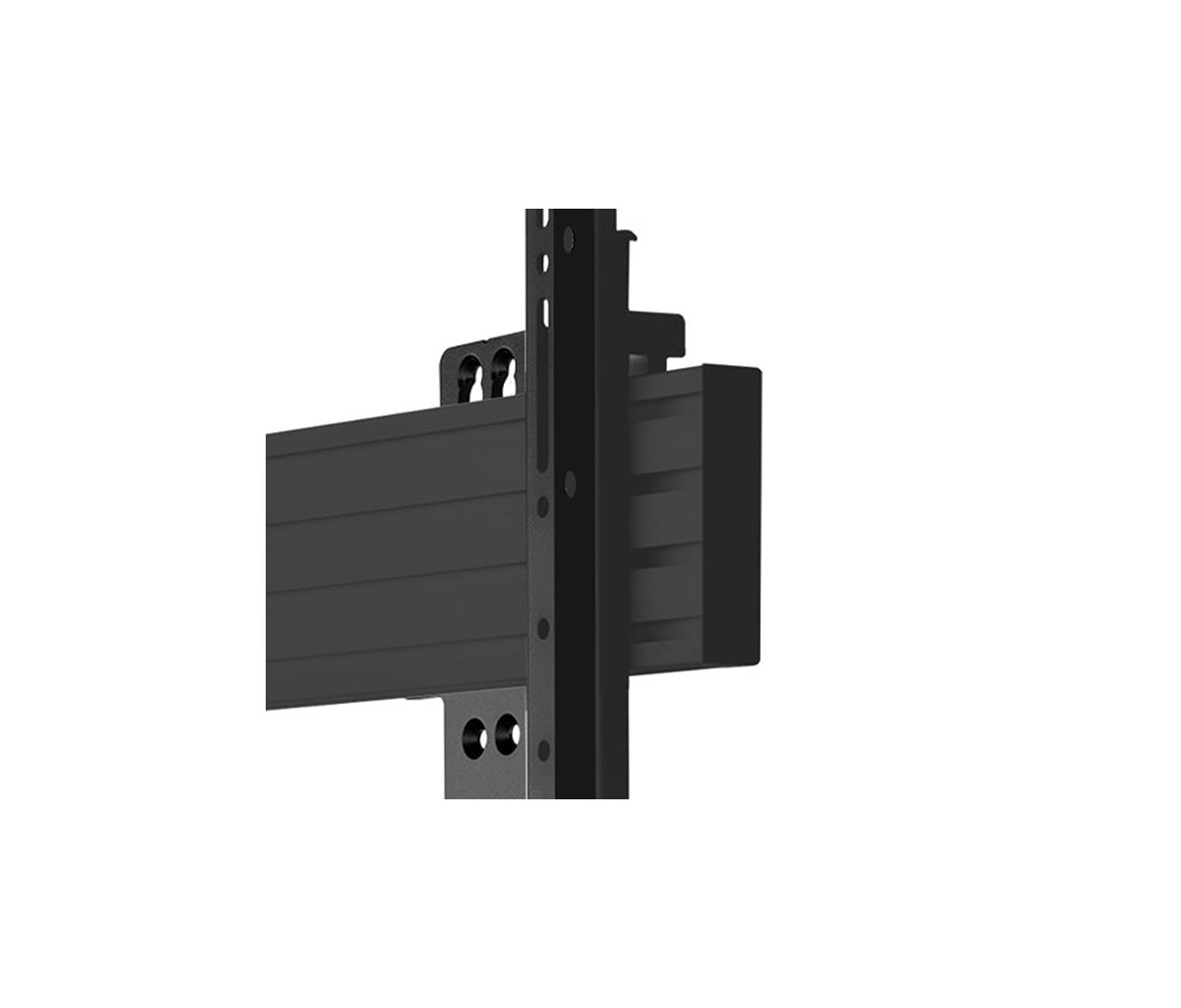

The BT9923 is designed to mount XL ultrawide displays to a wall in portrait orientation. The mount is supplied with adaptor arms with vertical vesa fixings up to 1500mm; making it compatible with a wide selection of 21:9 ratio ultrawide displays. The low profile design mounts the display at a depth of 57.5mm (with adaptors) from the wall for a neat and tidy install whilst also allowing easy access to the connectors.
Ergonomics | |
Type | Fixed |
Product colour | Black |
Adjustable depth | Yes |
Housing material | Steel |
Cable management | Yes |
Tilt adjustment | Yes |
Certification | TUV |
Mounting | |
Maximum weight capacity | 200 kg |

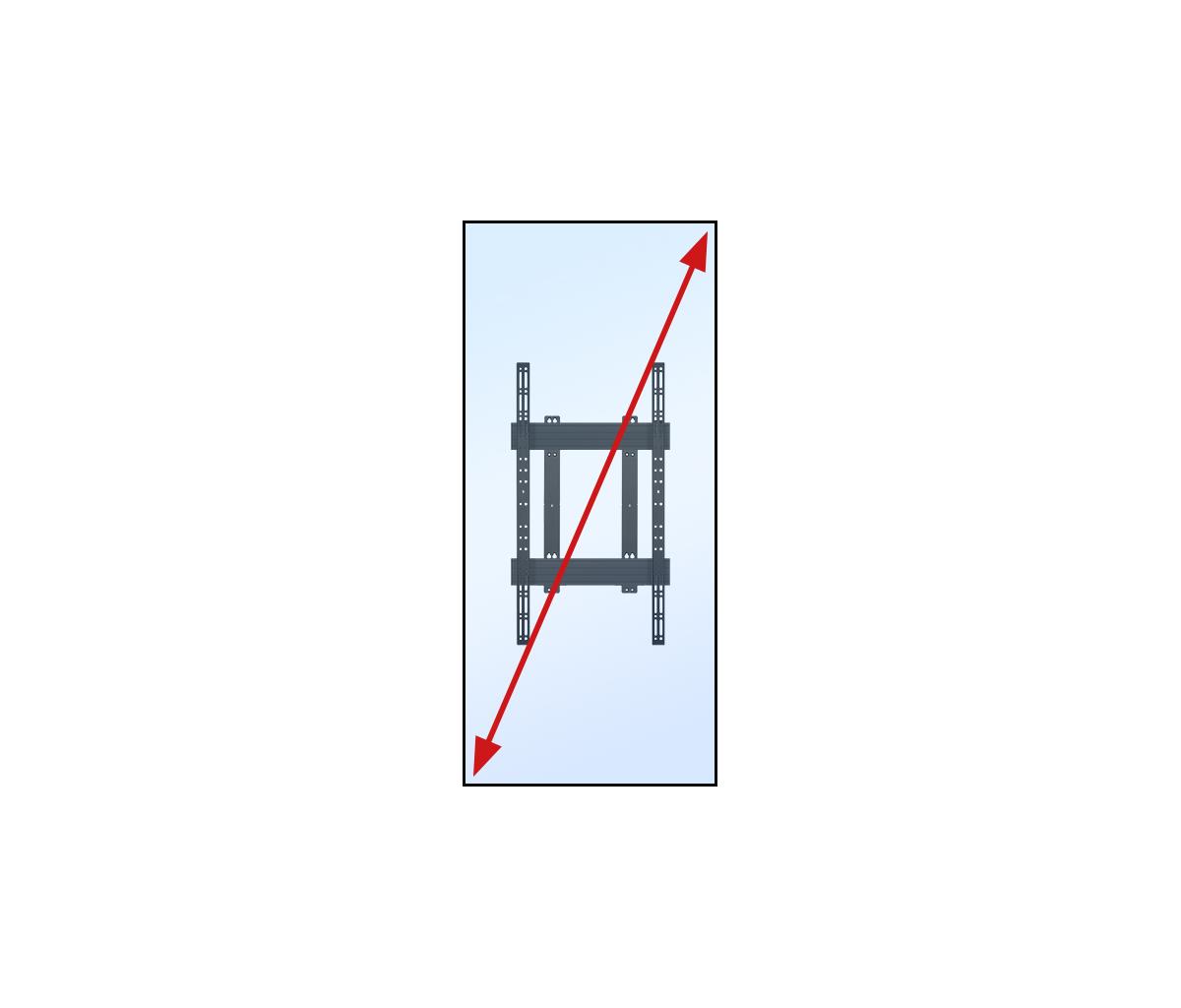

Minimum screen size | 2.67 m (105") |
Maximum screen size | 3.05 m (120") |
Mounting type | Wall |
Minimum VESA mount | 1000 x 400 mm |
Maximum VESA mount | 1500 x 600 mm |
Panel mounting interface | 1000 x 400,1000 x 600,1500 x 600 |
Number of displays supported | 1 |
Packaging data | |
Quantity per pack | 1 pc(s) |
Mounting kit | Yes |
Technical details | |
Compliance certificates | cTUVus |
Logistics data | |
Harmonized System (HS) code | 94039010 |
Warranty | |
Base Warranty | Non Non |
