Product Information

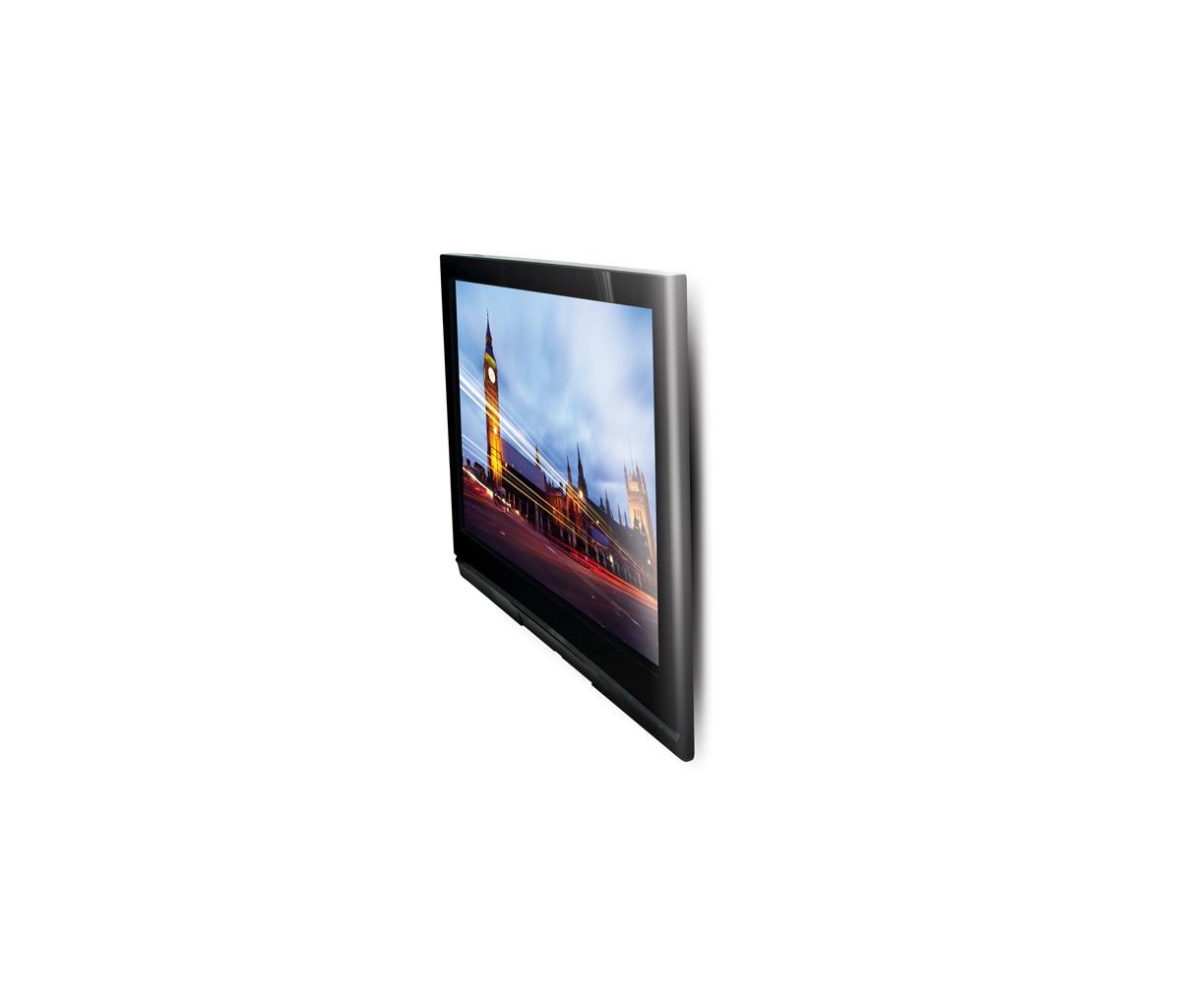

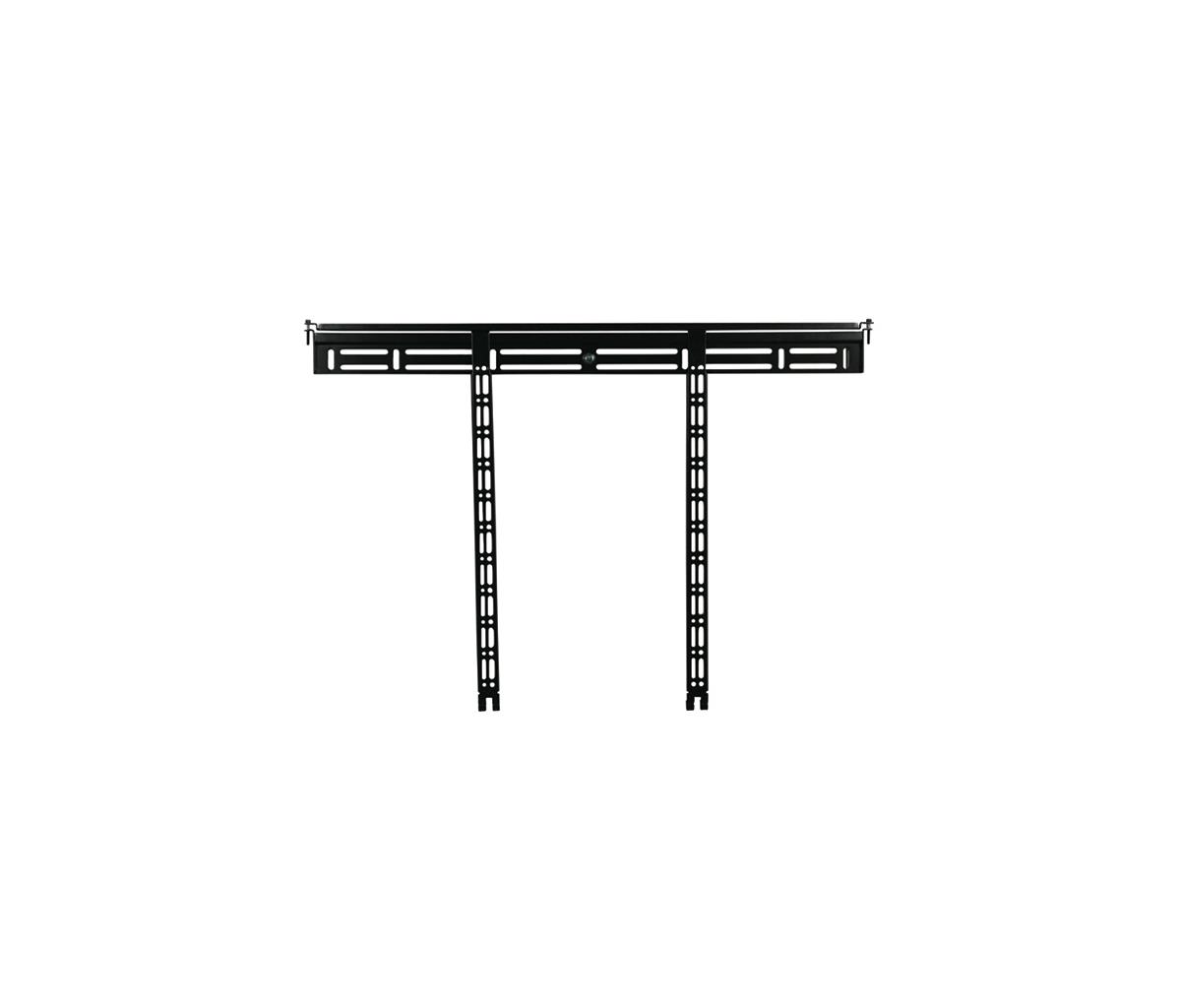

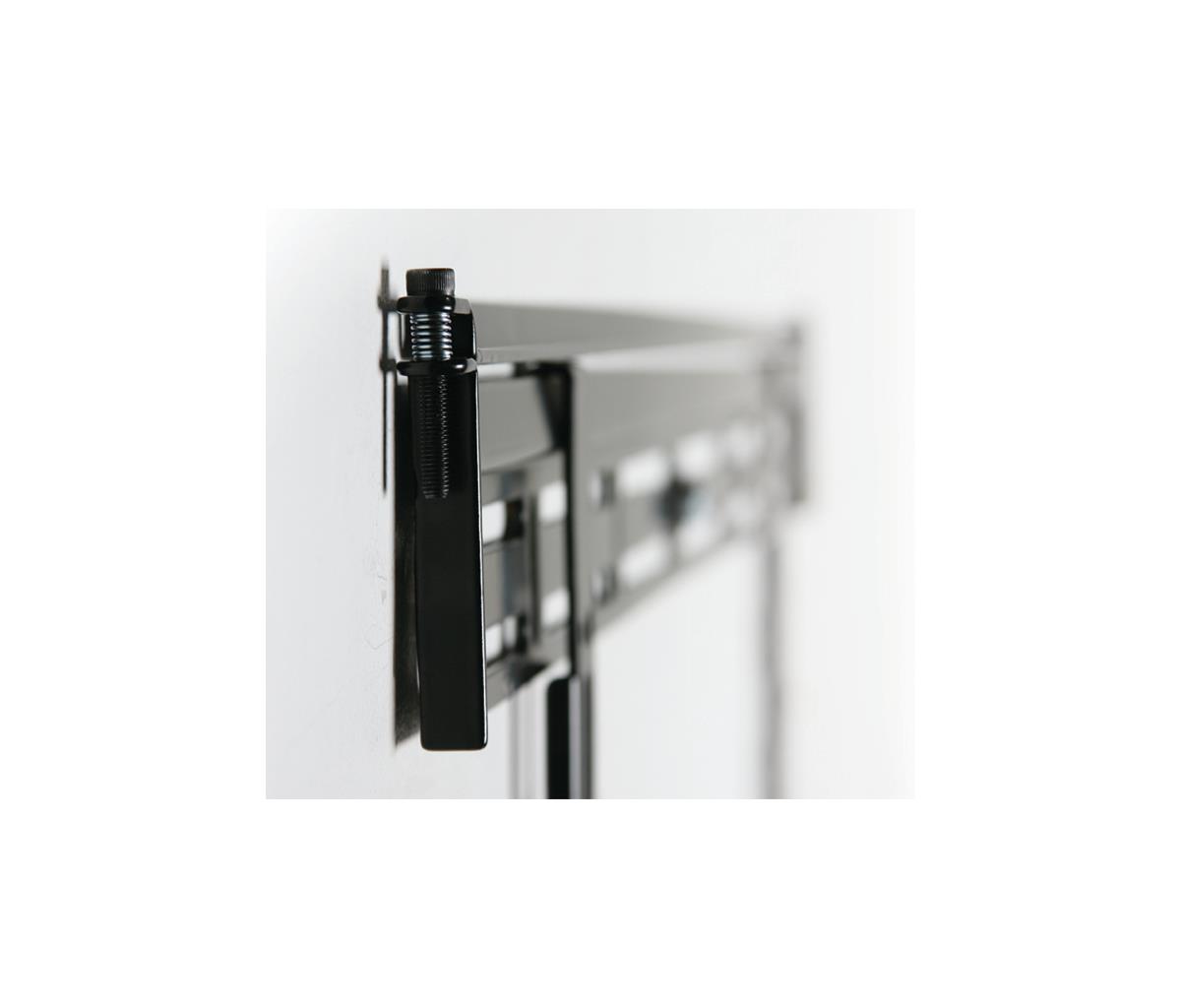

Designed for medium sized screens up to 80kg, the ultra-slim BT8220 mounts screens just 14mm from the wall and features post installation screen alignment, B-Tech's "On Wall Levelling System" and simple 'hook-on' installation to make screen mounting as quick and simple as possible. The BT8220 also features B-Tech's patented 'Torsion-Lock' security to help prevent un-authorised removal of the screen. All mounting hardware included.
Mounting | |
Maximum weight capacity | 70 kg |
Maximum screen size | 2.03 m (80") |
Suitable for computer monitor | Yes |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 800 x 500 mm |
Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400,800 x 500 |
Number of displays supported | 1 |
Mounting type | Wall |
Ergonomics | |
Distance to the wall (min) | 1.4 cm |
Design | |
Product colour | Black |
Packaging content | |
Mounting kit | Yes |
Weight & dimensions | |
Width | 895 mm |
Depth | 100 mm |
Height | 628 mm |
Packaging data | |
Package weight | 13.3 kg |
Warranty | |
Base Warranty | Non Non |
