Product Information

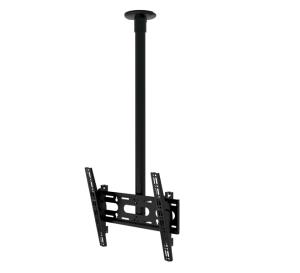

Designed to ceiling mount screens up to 50kg, the BT8423 features an adjustable drop of 625mm - 950mm in increments of 25mm. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Mounting | |
Maximum weight capacity | 50 kg |
Maximum screen size | 119.4 cm (47") |
Maximum VESA mount | 225 x 200 mm |
Number of displays supported | 1 |
Mounting type | Ceiling |
Ergonomics | |
Height adjustment | Yes |
Height adjustment range | 625 - 950 mm |
Tilt angle range | -15 - 15ø |
Cable management | Yes |
Design | |
Product colour | Black |
Warranty | |
Base Warranty | Non Non |
Weight & dimensions | |
Width | 350 mm |
Depth | 177.6 mm |
Logistics data | |
Master (outer) case gross weight | 8 kg |
Products per master (outer) case | 1 pc(s) |
Harmonized System (HS) code | 83024200 |
