Product Information

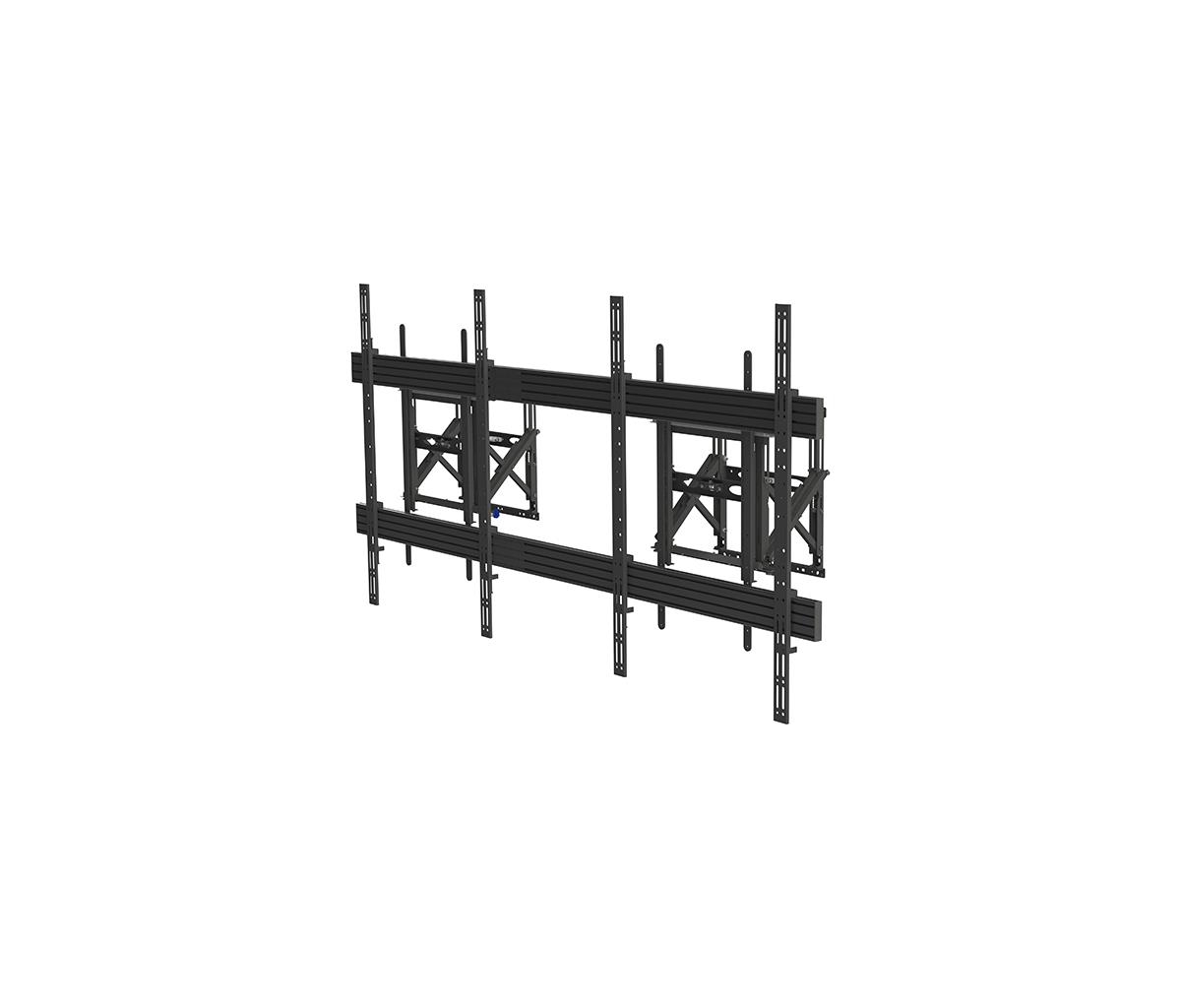

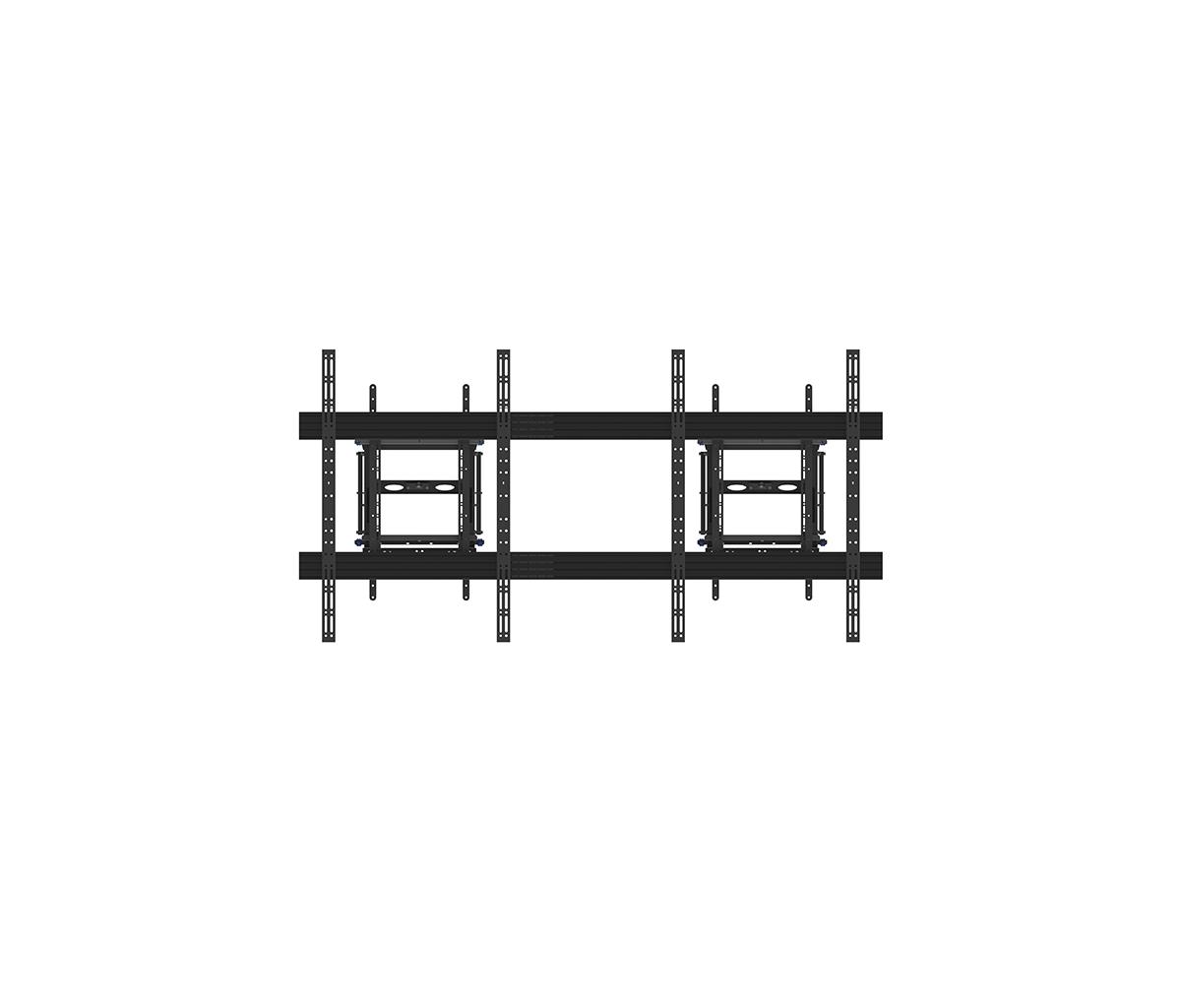

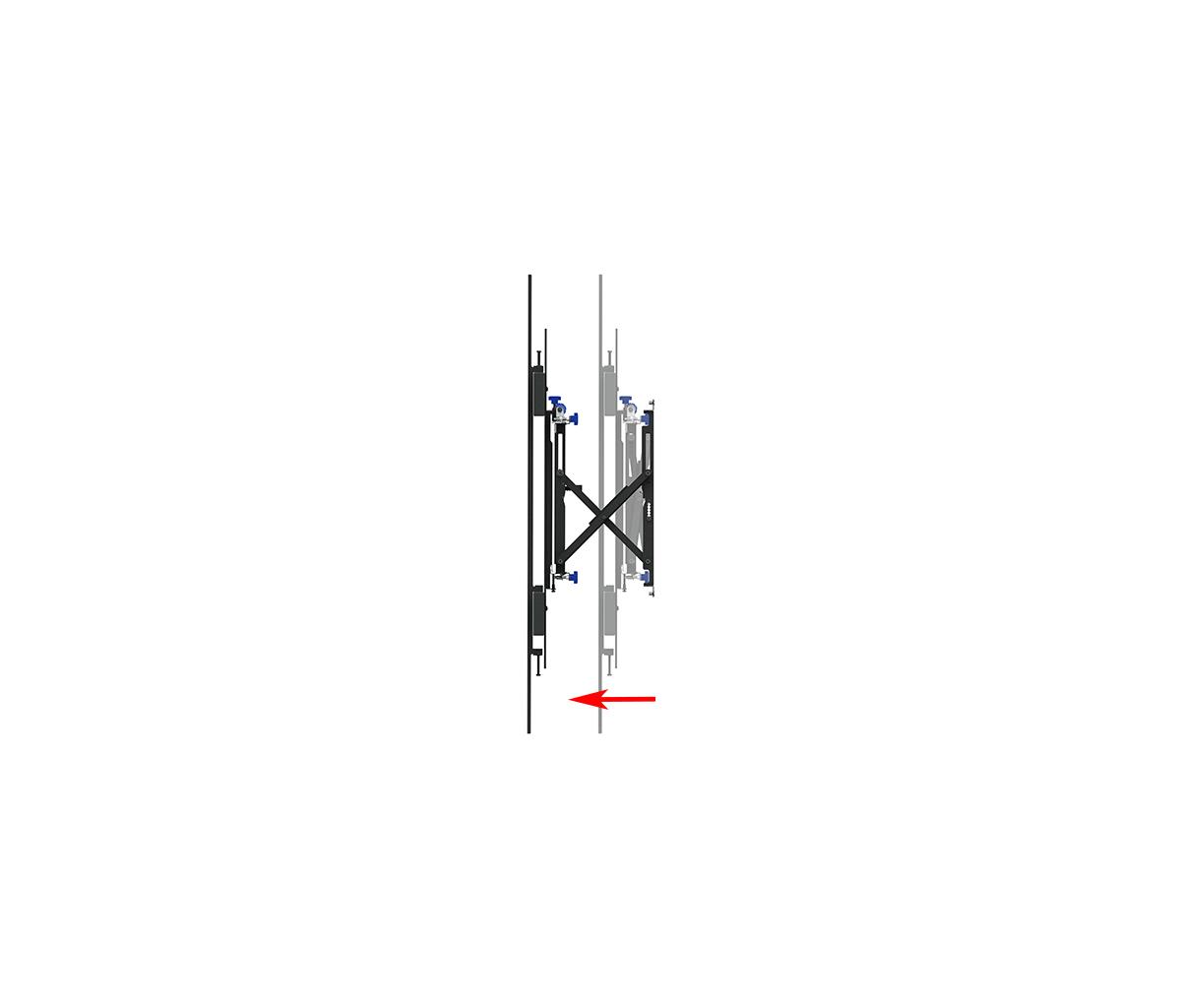

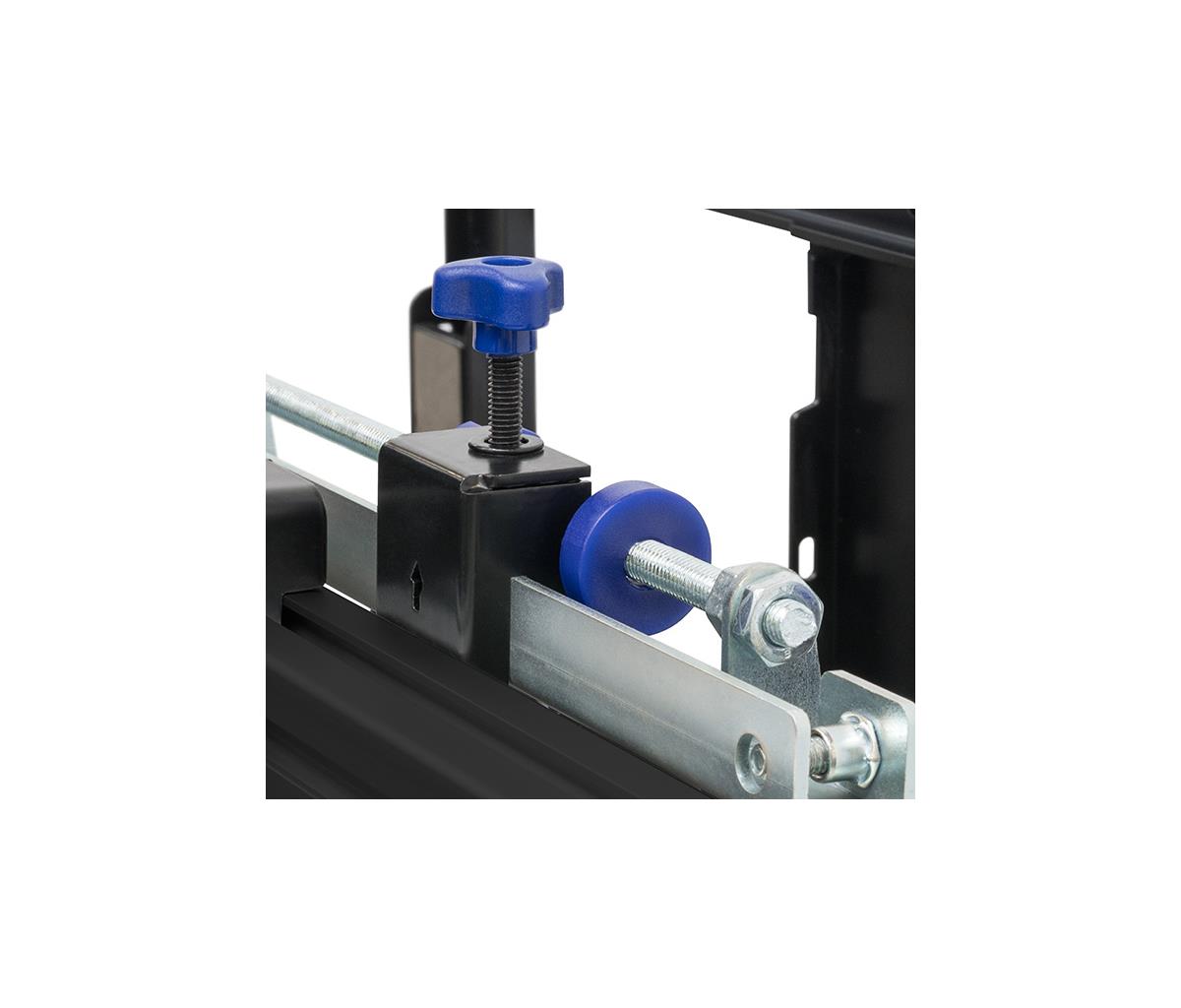

The BT9922 is a dual rail, pop-out wall mount solution designed for extra large signage displays such as the LG LAEC015. Capable of supporting heavy loads, the BT9922 is ideal for recess mounting and features a pop-out system for full service access, micro-adjustment for screen alignment and integrated cable management to help keep the finished installation tidy. Safety screws also help to prevent unauthorised removal of the screen.
| Ergonomics | |
| Type | Fixed |
| Product colour | Black |
| Adjustable depth | Yes |
| Housing material | Steel |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Certification | TUV |
| Mounting | |
| Maximum weight capacity | 200 kg |
| Minimum screen size | 3.05 m (120") |
| Maximum screen size | 3.45 m (136") |
| Mounting type | Wall |
| Maximum VESA mount | 2400 x 1200 mm |
| Number of displays supported | 1 |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Technical details | |
| Compliance certificates | cTUVus |
| Logistics data | |
| Harmonized System (HS) code | 83024200 |
| Warranty | |
| Base Warranty | Non Non |
