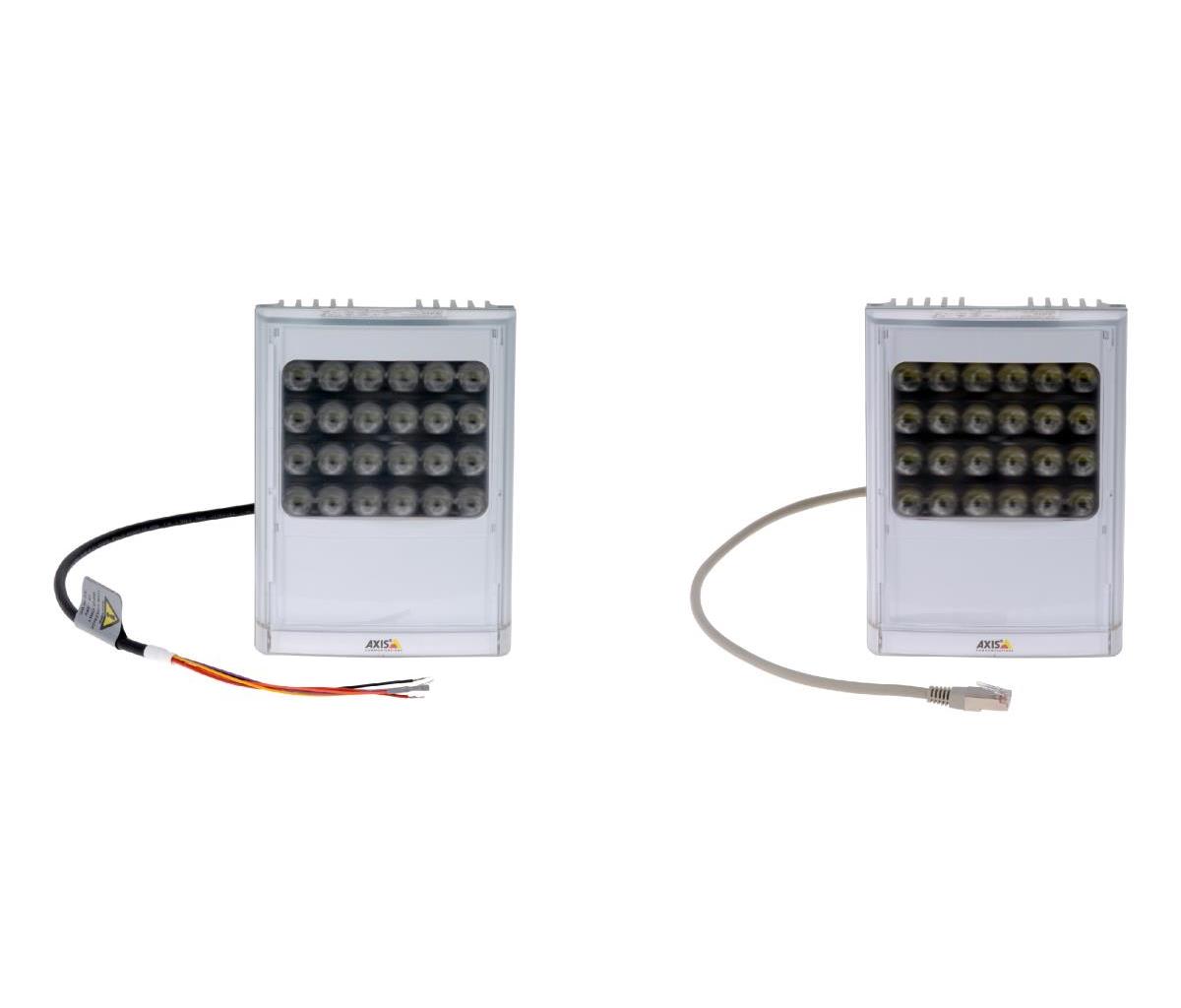

T90d35 W-led Illuminator
ITCurry #: 13835108 | Article #: 01217-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Optimized to match your camera’s field of view
Based on the latest LED technology, AXIS T90D35 W-LED delivers more light where it is needed. It generates longer white LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D35 W-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available.
Installation made efficient, easy and flexible
AXIS T90D35 W-LED Illuminator enhances potential energy savings thanks to integrated green features, such as power adjust and telemetry control. The illuminator can easily be installed on different mounts, for walls or poles.
| Features | |
| Type | Illuminator |
| Placement supported | Universal |
| Brand compatibility | Axis |
| Product colour | Silver, White |
| Housing material | Aluminium |
| Maximum operating distance | 180 m |
| Ergonomics | |
| Wall mountable | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Power | |
| Input voltage | 12-24 V |
| Weight & dimensions | |
| Cable length | 2.5 m |
| Width | 135 mm |
| Depth | 68 mm |
| Height | 180 mm |
| Weight | 1.65 kg |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 50 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -50 - 70 øC |
| Logistics data | |
| Harmonized System (HS) code | 85299020 |
| Warranty | |
| Base Warranty | Non Non |
