Product Information

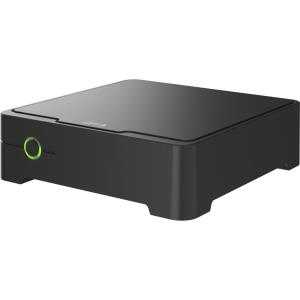

AXIS S3008 Recorder is a compact recorder with an integrated PoE switch for up to 8 cameras. It provides reliable recording thanks to the surveillance-grade hard drive. This high-performance recorder offers gigabit uplink for video recordings in ultra-high definition and includes a 5-year warranty. The recorder is supported by the AXIS Companion video management software and mobile app.
Performance | |
Audio formats supported | AAC |
Video formats supported | AVC, H.264, H.265, HEVC, MPEG4 |
Input bandwidth | 160 Mbit/s |
Audio system | 1-way |
Storage | |
Number of HDDs installed | 1 |
HDD capacity | 8 TB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 9 |
Power over Ethernet (PoE) | Yes |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Power over Ethernet (PoE) ports quantity | 8 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
Supported network protocols | IPv4/v6, HTTP, SSL/TLS, QoS, SFTP, SMTP, Bonjour, UPnP, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCPv4/v6, ARP, SSH |
Features | |
Product colour | Black |
Certification | CISPR 24, CISPR 35, EAC, EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCC1 Class A, IEC/EN 62368-1, UL 62368-1, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X |
Power | |
Power consumption (max) | 90 W |
AC input voltage | 100-240 V |
AC input frequency | 50 - 60 Hz |
Output current | 1.88 A |
Output voltage | 48 V |
Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 øC |
Operating relative humidity (H-H) | -40 - 65% |
Storage temperature (T-T) | 10 - 85 øC |
Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 180 mm |
Depth | 180 mm |
Height | 53 mm |
Weight | 1.45 kg |
Packaging content | |
AC adapter included | Yes |
Quick installation guide | Yes |
Warranty | |
Base Warranty | Non Non |
