Product Information

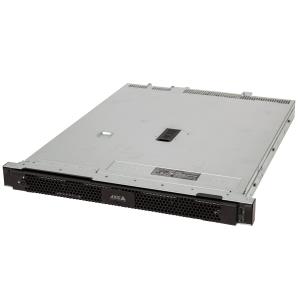

Featuring powerful components, this secure, scalable recording server offers high performance and support for powerful applications and features. It includes AXIS Camera Station licenses and multiple RAID configurations for flexible storage and multiple redundancy configuration. And, a Trusted Platform Module (FIPS 140-2 level 2 certified) ensures secure storage of all cryptographic keys and certificates. Available in two variants with a choice of storage, it comes preloaded with preconfigured software. Plus, all supported products are available in one price list for a one-stop-shop experience. Furthermore, it offers services such as Keep Your Hard Drive, Next Business Day Onsite Support, and a 5-year warranty.
Performance | |
Video input channels | 150 channels |
Internal memory | 32768 MB |
Operating system installed | Windows 10 IoT Enterprise |
Maximum frame rate | 30 fps |
Wireless LAN features | |
Wi-Fi | No |
Storage | |
Number of HDDs installed | 12 |
HDD capacity | 8 TB |
Maximum storage capacity | 96 TB |
RAID support | Yes |
RAID levels | 0, 1, 5, 6, 10 |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 1000,10000 Mbit/s |
VGA (D-Sub) output ports | 2 |
USB 2.0 ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Features | |
Rack mounting | Yes |
Rack capacity | 2U |
Product colour | Silver |
Certification | EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC Part 2 and 15 Class A, ISED ICES-003 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, VCCI 32-1 Class A, BSMI |
Processor | |
Built-in processor | Yes |
Power | |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power supply | 1600 W |
Operational conditions | |
Operating temperature (T-T) | 10 - 35 øC |
Operating relative humidity (H-H) | 20 - 80% |
Storage temperature (T-T) | -40 - 65 øC |
Weight & dimensions | |
Width | 482 mm |
Depth | 721.6 mm |
Height | 87 mm |
Weight | 22.9 kg |
Packaging content | |
AC adapter included | Yes |
Warranty | |
Base Warranty | Non Non |
