Ideal for patrolling large sites, this robust thermal camera lets you remotely monitor temperatures and trigger temperature-based events. It offers early fire detection analytics and built-in cybersecurity features.
What’s the temperature?

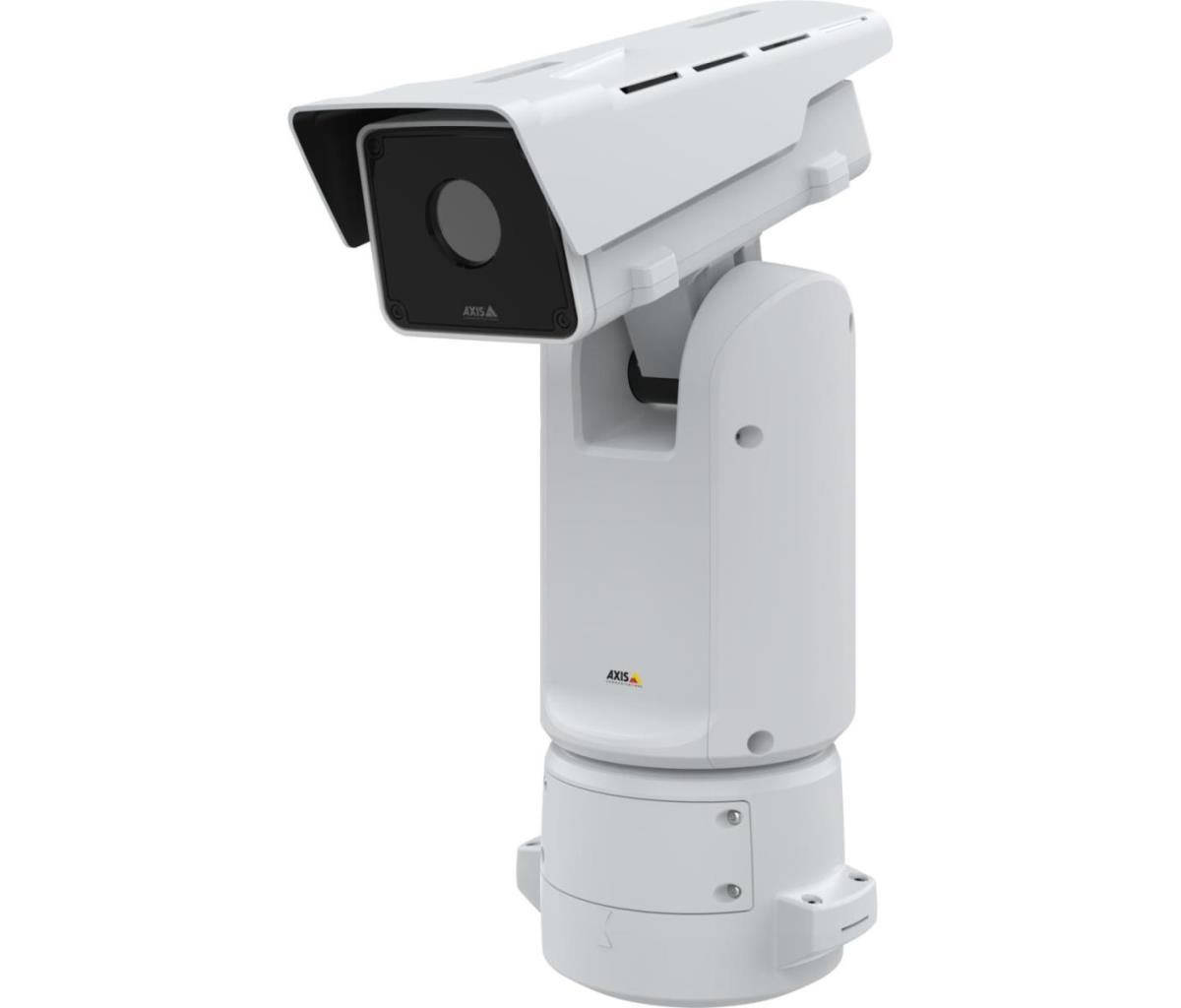

AXIS Q2101-TE lets you remotely monitor temperatures over large areas—automatically or manually with just one camera. It can monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F) with several trigger types such as lowest and highest temperature or temperature gradient. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view. This also enables thermometric guard tour with support for up to 256 presets with 10 polygonal detection areas each. Spot temperature reading acts as a visual aid and lets you see the exact temperature in a specific area. Additionally, temperature metadata enables statistics, follow up, and process analysis.
Detect early signs of fire
Built on ARTPEC 8, the latest Axis system-on-chip (SoC), AXIS Q2101-TE offers powerful analytics capabilities. It comes with early fire detection analytics preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. Using smart filtering, the analytics can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles for reduced false alarms.
Depend on it - robust and secure
This reliable, IK10-, NEMA 4X-rated thermal camera is ideal for monitoring critical assets. It includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Thanks to electronic image stabilization (EIS), this robust camera provides smooth video even in scenes with vibrations. And, with four I/O ports and support for edge-to-edge technology it’s possible to connect a network speaker to enable audio alarms.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Thermal module | Yes |
| Processor model | ARTPEC-8 |
| Built-in processor | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Thermal sensitivity (NETD) | 40 mK |
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM |
| Design | |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 19.4ø |
| Camera pixel size | 17 æm |
| Image sensor | |
| Sensor type (thermal module) | Noise equivalent temperature difference (NETD) |
| Sensor type | Microbolometer |
| Lens system | |
| Lens diameter | 1.9 cm |
| Maximum aperture number | 1.23 |
| Night vision | |
| Night vision | No |
| Video | |
| Maximum resolution | 768 x 576 pixels |
| Video compression formats | H.264, H.265, M-JPEG |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Gain control type | Auto |
| Privacy masking | Yes |
| Audio | |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 2 |
| Headphone outputs | 2 |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Temperature sensor | Yes |
| Temperature measurement range | -40 - 350 øC |
| Temperature measurement accuracy | 5 øC |
| Fire detection | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 4.1 W |
| Power consumption (max) | 25.5 W |
| Power consumption (Power over Ethernet (PoE)) | 4.6 W |
| DC output voltage | 8, 9, 10, 12, 15, 16, 24, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 404 mm |
| Height | 159 mm |
| Weight | 3.3 kg |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Packaging content | TORX T30 bit, TORX T20 screwdriver, terminal block connectors, connector guard, cable gaskets, owner authentication key |
| Warranty | |
| Base Warranty | Non Non |
