Q1941-e Pt Mount 60mm 30 Fps Thermal Network Camera
ITCurry #: 13834748 | Article #: 0977-001
slide 2 of 6
Price:
4799.14
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information

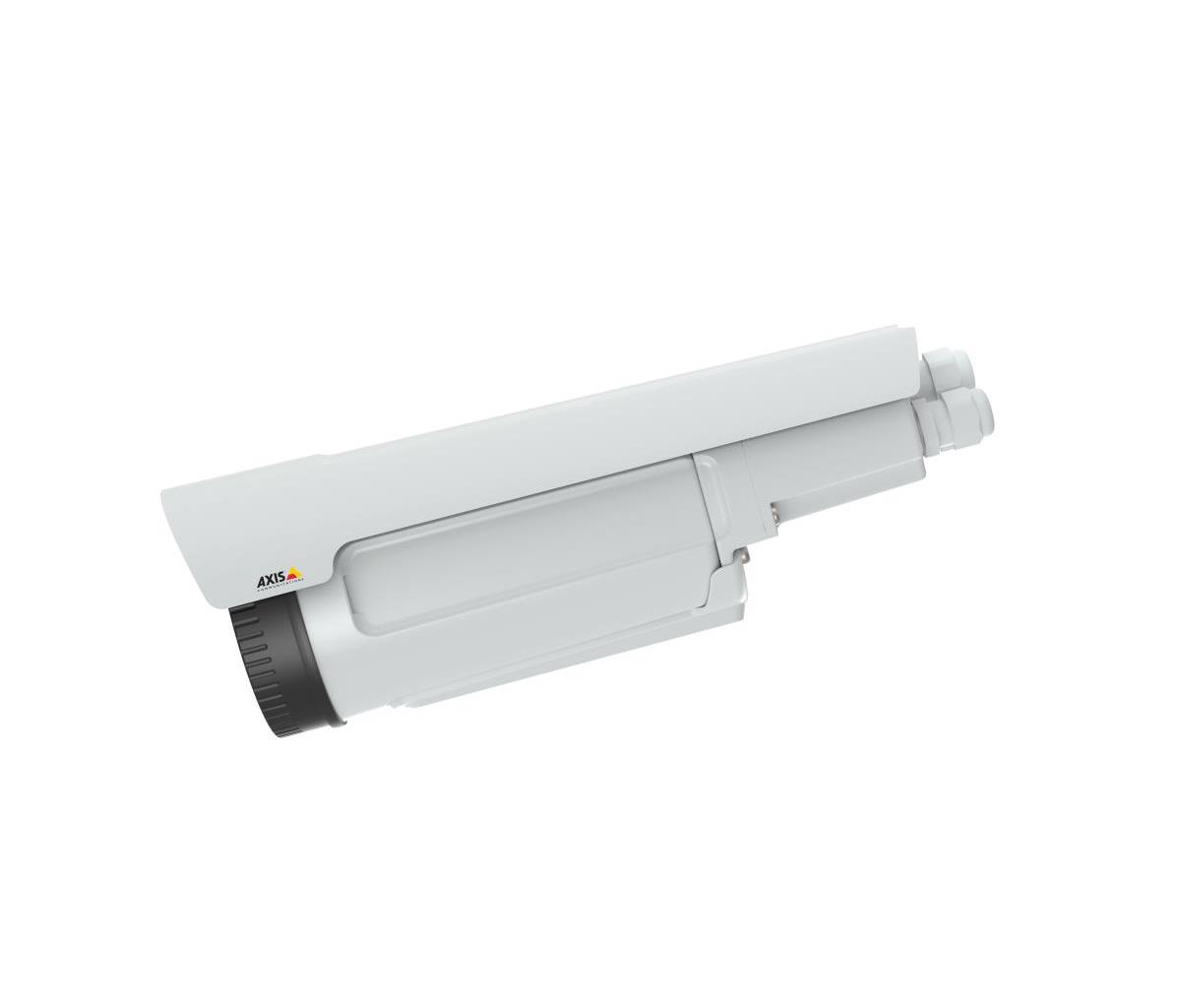

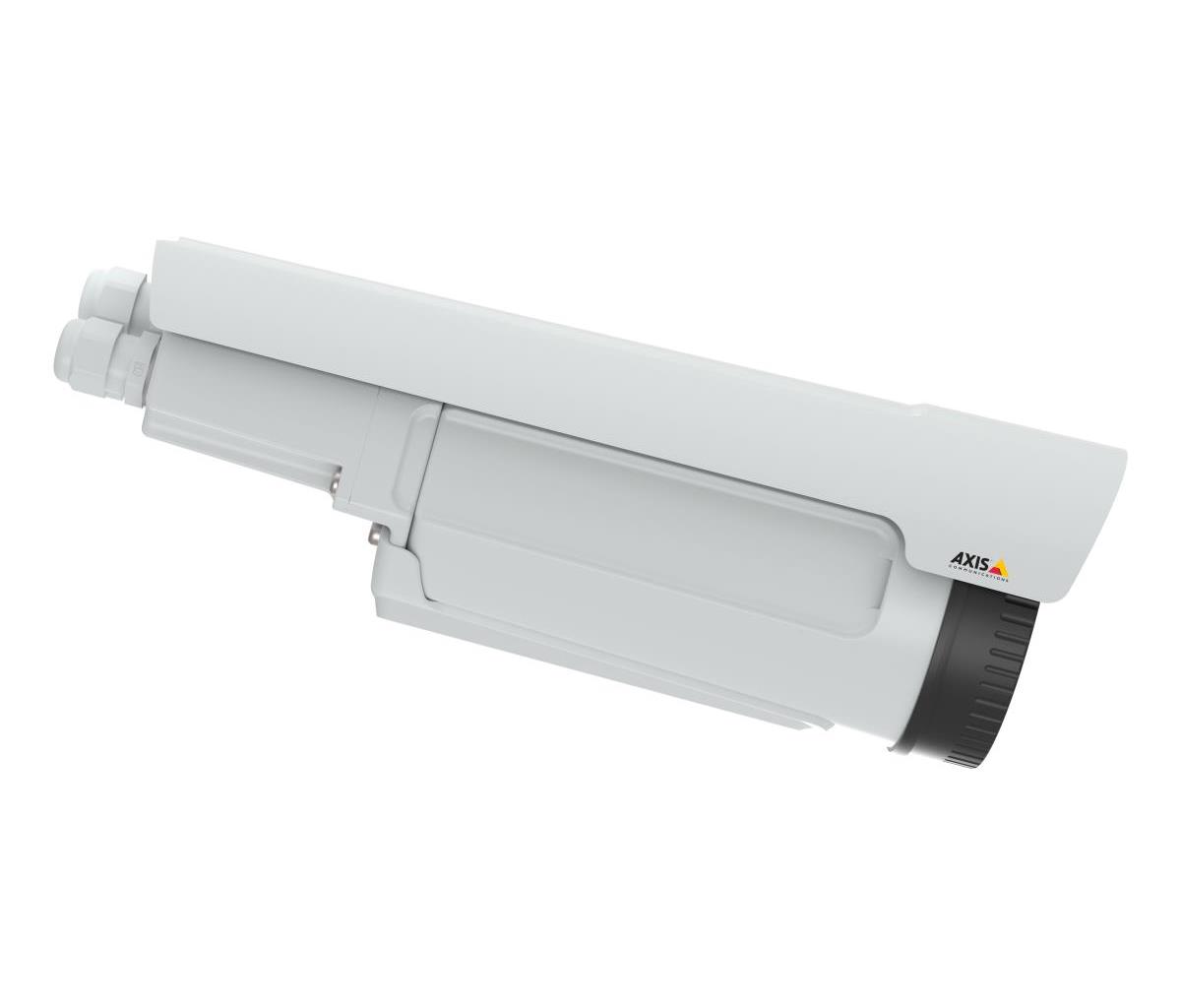

The bullet-style, outdoor-ready AXIS Q1941-E PT Mount offers the possibility of mounting the camera on a pan/tilt motor to increase installation flexibility. The broad range of lenses make it easy to detect and verify people, objects and incidents from pitch dark areas to a sunlit parking lot. A noise filter gives improved thermal image contrast while keeping noise levels low, without adding blur and ghost effects. AXIS Q1941-E PT Mount withstands harsh weather conditions and has a built-in heater for the window. Additionally, it offers Power over Ethernet and has a microSD card slot.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Number of languages | 11 |
| Languages support | Multi |
| Design | |
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Aluminium |
| International Protection (IP) code | IP66 |
| Camera | |
| Field of view (FOV) angle | 6.2ø |
| Image sensor | |
| Sensor type | Microbolometer |
| Lens system | |
| Fixed focal length | 60 mm |
| Video | |
| Maximum resolution | 384 x 288 pixels |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Image stabilizer | Yes |
| Audio | |
| Audio formats supported | AAC, ADPCM, G.711, PCM |
| Built-in microphone | No |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4/v6, HTTP, HTTPS b, SSL/TLS b, QoS 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP T M, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH |
| Cabling technology | 10/100Base-T(X) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 256 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Interface | RJ-45 |
| Security | |
| Temperature sensor | Yes |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS |
| HTTPS encryption | Yes |
| Motion sensor | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 6.6 W |
| Power consumption (max) | 13 W |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Manual | Yes |
| User guide | Yes |
| Terminal block included | Yes |
| Bundled software | AXIS Camera Companion, AXIS Camera Station |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
