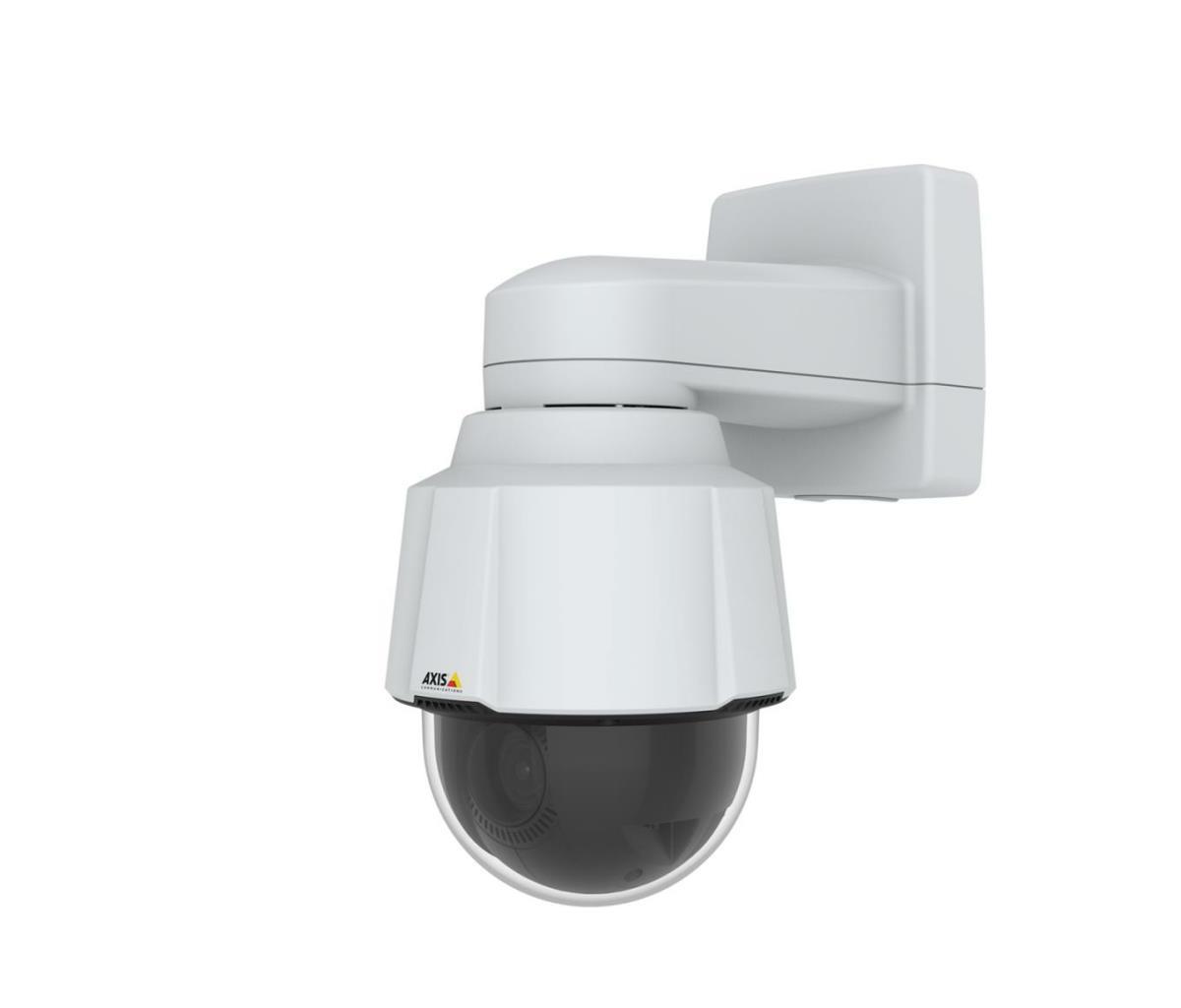

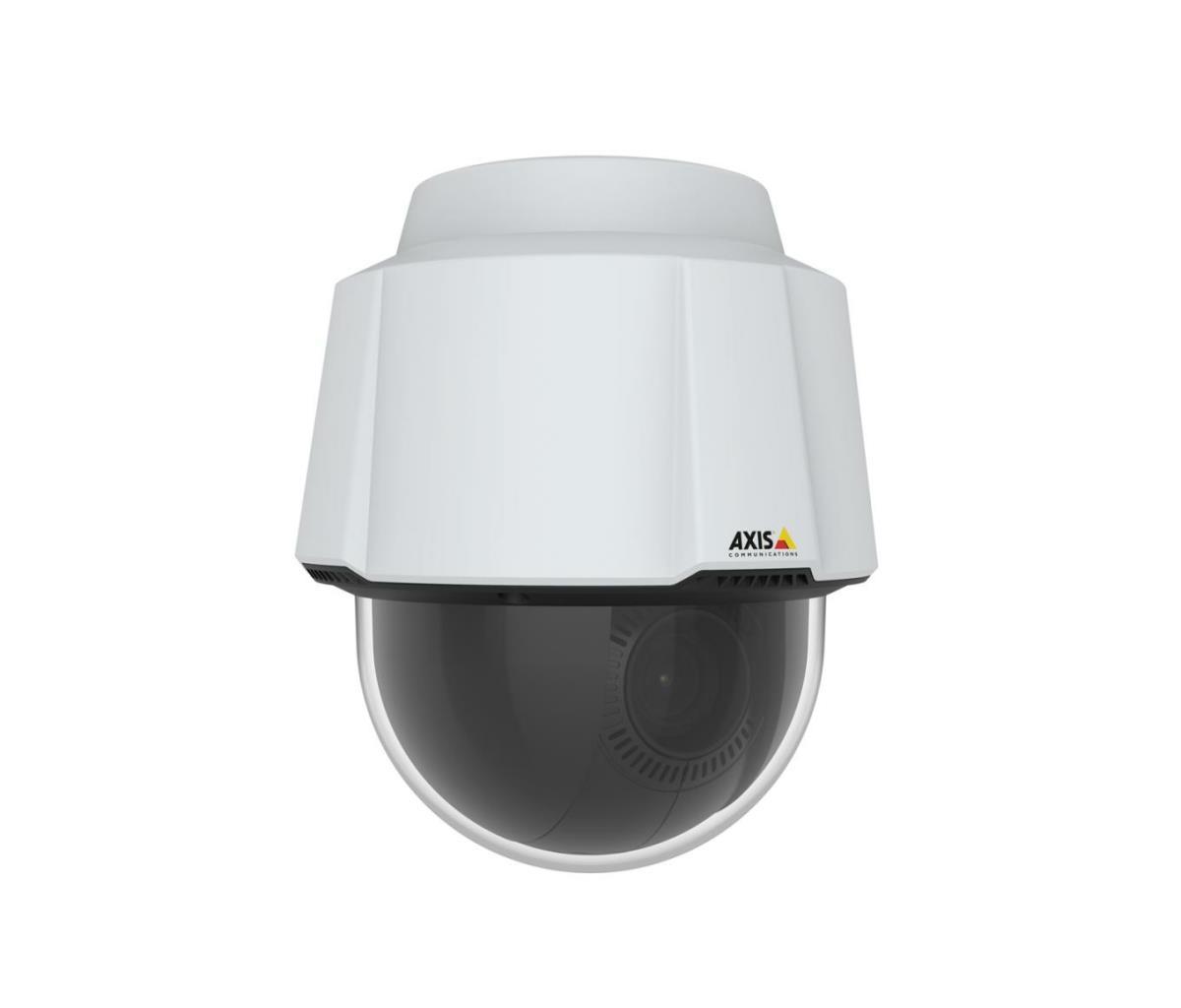

AXIS P5654-E Mk II PTZ Camera
This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Great images – anytime
AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.
Keeping you secure
Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
And there’s more…
This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | UL/cUL, UKCA, CE, KC, EAC, RCM, TAA |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.01 lx |
| Lens viewing angle, horizontal | 77 - 3.6ø |
| Lens viewing angle, vertical | 43.1 - 2ø |
| Tilt angle range | 0 - 180ø |
| Tilt speed | 350 ø/sec |
| Pan range | 0 - 360ø |
| Pan speed | 350 ø/sec |
| Camera shutter speed | 1/66500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 21x |
| Digital zoom | 12x |
| Number of lenses | 1 |
| Focal length range | 4 - 84.6 mm |
| Auto focus | Yes |
| Maximum aperture number | 4.5 |
| Minimum aperture number | 1.6 |
| Detect distance (wide) | 57 m |
| Detect distance (tele) | 1120 m |
| Observe distance (wide) | 23 m |
| Observe distance (tele) | 450 m |
| Recognize distance (wide) | 11 m |
| Recognize distance (tele) | 225 m |
| Identify distance (wide) | 6 m |
| Identify distance (tele) | 110 m |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 180 |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| ROM capacity | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, HTTPS, TLS |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Face detection, Human detection, Moving object, Vehicle detection |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 8 W |
| Power consumption (max) | 16 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 188 mm |
| Depth | 188 mm |
| Height | 217 mm |
| Weight | 2.5 kg |
| Features | |
| License plate recognition | Yes |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Technical details | |
| Doesn't contain | PVC |
| Compliance certificates | REACH, RoHS |
