Product Information

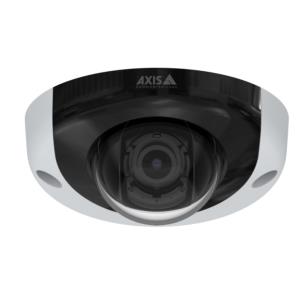

Specifically designed for onboard surveillance, AXIS P3935-LR complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. It includes built-in invisible IR LEDs (940 nm) for video surveillance in complete darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera features a built-in microphone for audio surveillance and detection. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.
Performance | |
Type | IP security camera |
Connectivity technology | Wired |
PTZ control | Yes |
PTZ modes | Digital PTZ |
Preset points | Yes |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545, UN ECE R118, NFPA 130, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155 Class OT2/ST2 (2017 Class TX), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, NIST SP500-267 |
Design | |
Form factor | Dome |
Mounting type | Ceiling |
Product colour | Black, White |
Housing material | Aluminium |
International Protection (IP) code | IP66, IP67 |
IK code | IK10 |
Fog proof | Yes |
Camera | |
Camera pan control | Yes |
Camera tilt control | Yes |
Minimum illumination | 0.01 lx |
Angle of rotation | 350ø |
Lens viewing angle, horizontal | 110ø |
Lens viewing angle, vertical | 62ø |
Tilt angle range | 15 - 90ø |
Pan range | -30 - 30ø |
Image sensor | |
Number of sensors | 1 |
Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
Progressive scan | Yes |
Sensor type | CMOS |
Lens system | |
Number of lenses | 1 |
Fixed focal length | 2.8 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 15 m |
LED type | IR |
Infra-red wavelength | 940 nm |
Video | |
Maximum resolution | 1920 x 1080 pixels |
Total megapixels | 2 MP |
Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
Supported graphics resolutions | 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080) |
Frame rate | 45 fps |
Video streaming | Yes |
Image quality adjustment | Brightness, Contrast, Sharpness |
Privacy masking | Yes |
Text caption overlay | Yes |
Image stabilizer | Yes |
Bit rate control | Variable Bit Rate (VBR) |
Audio | |
Audio system | 1-way |
Audio formats supported | AAC-LC, G.711, LPCM, PCM |
Sample rate | 48 kHz |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT |
Number of users | 8 user(s) |
Quality of Service (QoS) support | Yes |
Streaming method | Multicast |
Storage | |
Card reader integrated | Yes |
Flash memory | 512 MB |
Ports & interfaces | |
Microphone in | Yes |
Security | |
Password protection | Yes |
Video motion detection | Yes |
Active tampering alarm | Yes |
IP address filtering | Yes |
HTTPS encryption | Yes |
Power | |
Power source type | PoE |
Power consumption (typical) | 6.6 W |
Power consumption (max) | 11.8 W |
Operational conditions | |
Operating temperature (T-T) | -40 - 55 øC |
Storage temperature (T-T) | -40 - 65 øC |
Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions | |
Width | 110 mm |
Depth | 110 mm |
Height | 49.4 mm |
Weight | 410 g |
Packaging content | |
Number of cameras | 10 |
Manual | Yes |
Logistics data | |
Harmonized System (HS) code | 85258900 |
Warranty | |
Base Warranty | Non Non |
