Product Information

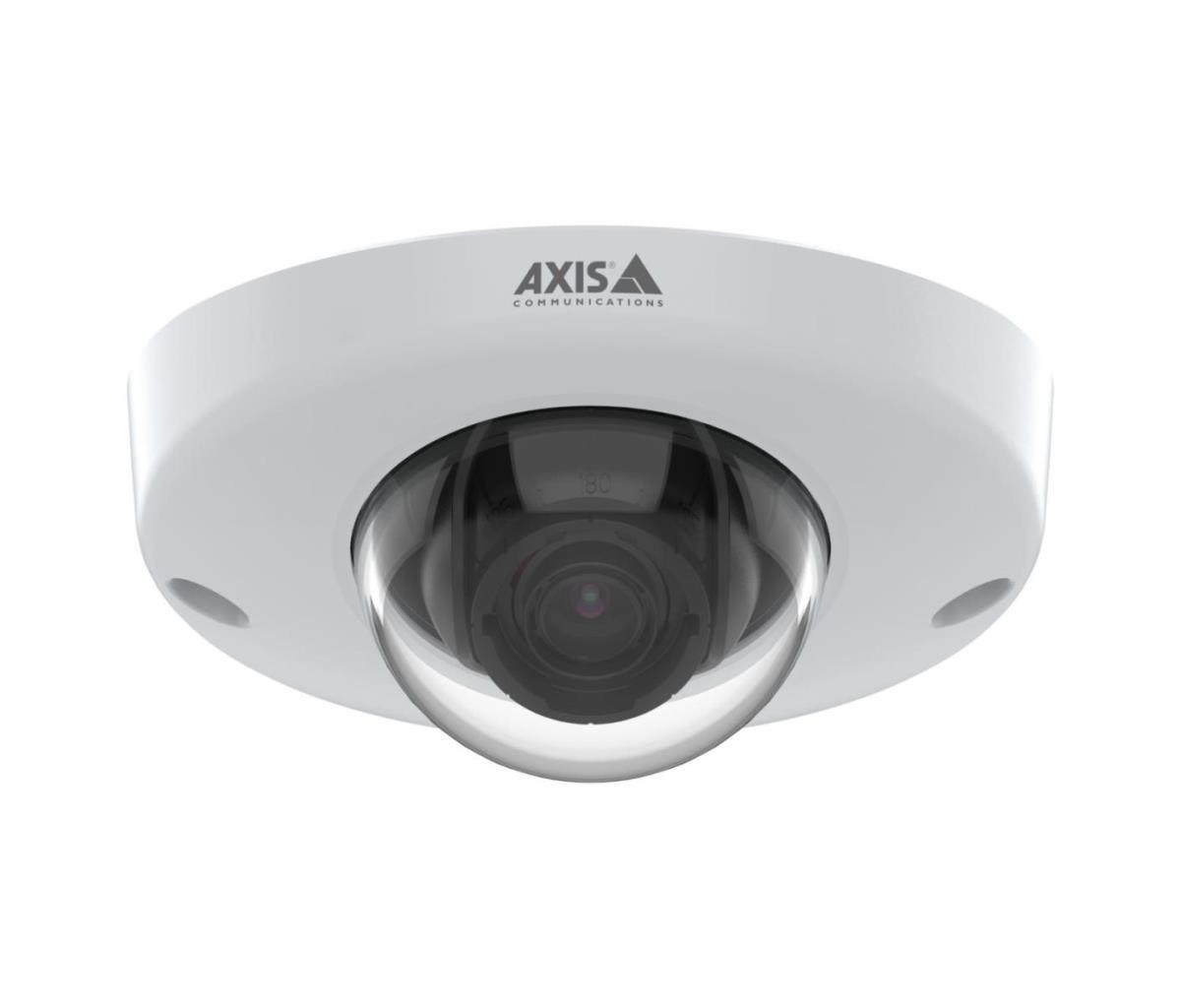

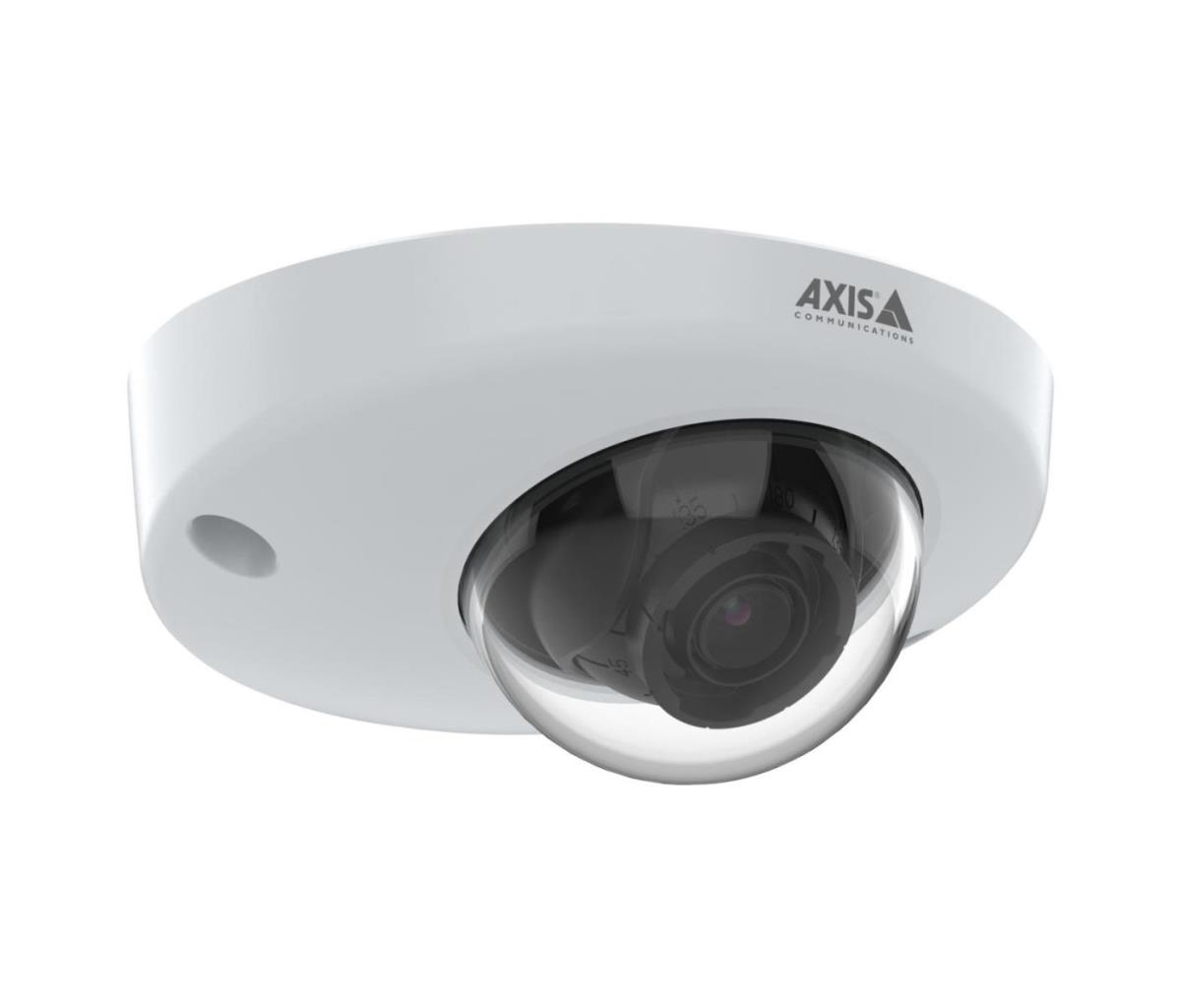

This compact and discreet 2 MP onboard camera complies with rolling stock standards such as EN50155 and EN45545. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a vehicle. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.
Performance | |
Type | IP security camera |
Placement supported | Indoor |
Connectivity technology | Wired |
PTZ control | Yes |
PTZ modes | Digital PTZ |
Wide Dynamic Range (WDR) | Yes |
Built-in processor | Yes |
Number of languages | 19 |
Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
Certification | CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE |
Design | |
Form factor | Dome |
Mounting type | Wall |
Product colour | White |
Housing material | Aluminium, Polycarbonate (PC) |
International Protection (IP) code | IP66, IP67 |
IK code | IK10 |
Camera | |
Camera pan control | Yes |
Camera tilt control | Yes |
Minimum illumination | 0.04 lx |
Angle of rotation | 175ø |
Lens viewing angle, horizontal | 88ø |
Lens viewing angle, vertical | 47ø |
Tilt angle range | 15 - 90ø |
Pan range | -30 - 30ø |
Camera pixel size | 2.8 æm |
Image sensor | |
Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
Sensor type | CMOS |
Lens system | |
Zoom capability | Yes |
Lens diameter | 3.6 mm |
Maximum aperture number | 2 |
Night vision | |
Night vision | No |
Video | |
Maximum resolution | 1920 x 1080 pixels |
Total megapixels | 2 MP |
Video compression formats | H.264, H.265, M-JPEG |
Video recording | Yes |
Frame rate | 30 fps |
Video streaming | Yes |
Noise reduction | Yes |
Noise reduction technology | 2D noise reduction, 3D noise reduction |
Privacy masking | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
Wi-Fi | No |
Bluetooth | No |
Quality of Service (QoS) support | Yes |
Storage | |
Built-in HDD | No |
Card reader integrated | Yes |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Flash memory | 512 MB |
Internal memory | 1024 MB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Security | |
Password protection | Yes |
Video motion detection | Yes |
Active tampering alarm | Yes |
IP address filtering | Yes |
HTTPS encryption | Yes |
Pixel counter | Yes |
Digest authentication | Yes |
Network access storage (NAS) | Yes |
Power | |
Power source type | PoE |
Power consumption (max) | 3.8 W |
Power consumption (Power over Ethernet (PoE)) | 2.2 W |
Operational conditions | |
Operating temperature (T-T) | -30 - 55 øC |
Storage temperature (T-T) | -40 - 65 øC |
Operating relative humidity (H-H) | 10 - 100% |
Weight & dimensions | |
Height | 50 mm |
Diameter | 11 cm |
Weight | 241 g |
Packaging content | |
Number of cameras | 10 |
Manual | Yes |
Packaging content | Windows decoder 1-user license, lens tool |
Warranty | |
Base Warranty | Non Non |
