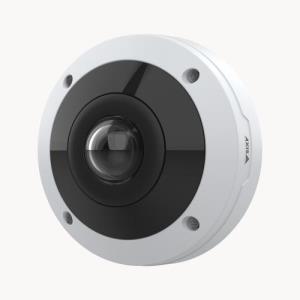

M4317-plve Panoramic Camera
ITCurry #: 13836336 | Article #: 02510-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Sharp images
Featuring a stereographic lens and Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 6 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. Plus, Lightfinder ensures lifelike colors in low light. With day/night functionality and built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage and excellent image quality even in low light or complete darkness. Furthermore, AXIS M4317-PLVE supports digital PTZ views as well as dewarped views such as panorama, quad, corner, and corridor.
Deep learning on the edge
This high-performance camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before—on the edge. Additionally, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify humans, vehicles, and types of vehicles—all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and easy
Built on ARTPEC-8, AXIS M4317-PLVE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This discreet, compact mini dome blends seamlessly into any environment. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Preset point, Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 20 |
| Languages support | English, Spanish, Swedish, Italian, Polish, Thai, Finnish, Japanese, Portuguese, Turkish, Simplified Chinese, French, Traditional Chinese, Korean, Russian, Vietnamese, Czech, German, Dutch |
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KC 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61547 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A Railway: IEC 62236-4 IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62471 risk group exempt, UN ECE R118, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B) |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera | |
| Minimum illumination | 0.03 lx |
| Lens viewing angle, horizontal | 182ø |
| Lens viewing angle, vertical | 182ø |
| Camera shutter speed | 1/33500 - 0.2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Fixed focus | Yes |
| Fixed focal length | 2.2 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2160 x 2160 pixels |
| Total megapixels | 6 MP |
| Supported graphics resolutions | 256 x 144, 384 x 288, 1920 x 1440, 2560 x 1440, 2560 x 1920 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Sharpness, Saturation |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio system | 2-way |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | TLS, 256-bit AES-XTS, EAP-TLS |
| HTTPS encryption | Yes |
| Alert notification type | |
| Privacy protection | Yes |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Management features | |
| Behavior analysis | Line crossing detection |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 5.7 W |
| Power consumption (max) | 12.95 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 149 mm |
| Depth | 149 mm |
| Height | 70 mm |
| Weight | 860 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Technical details | |
| Doesn't contain | PVC/BFR |
| Compliance certificates | RoHS |
