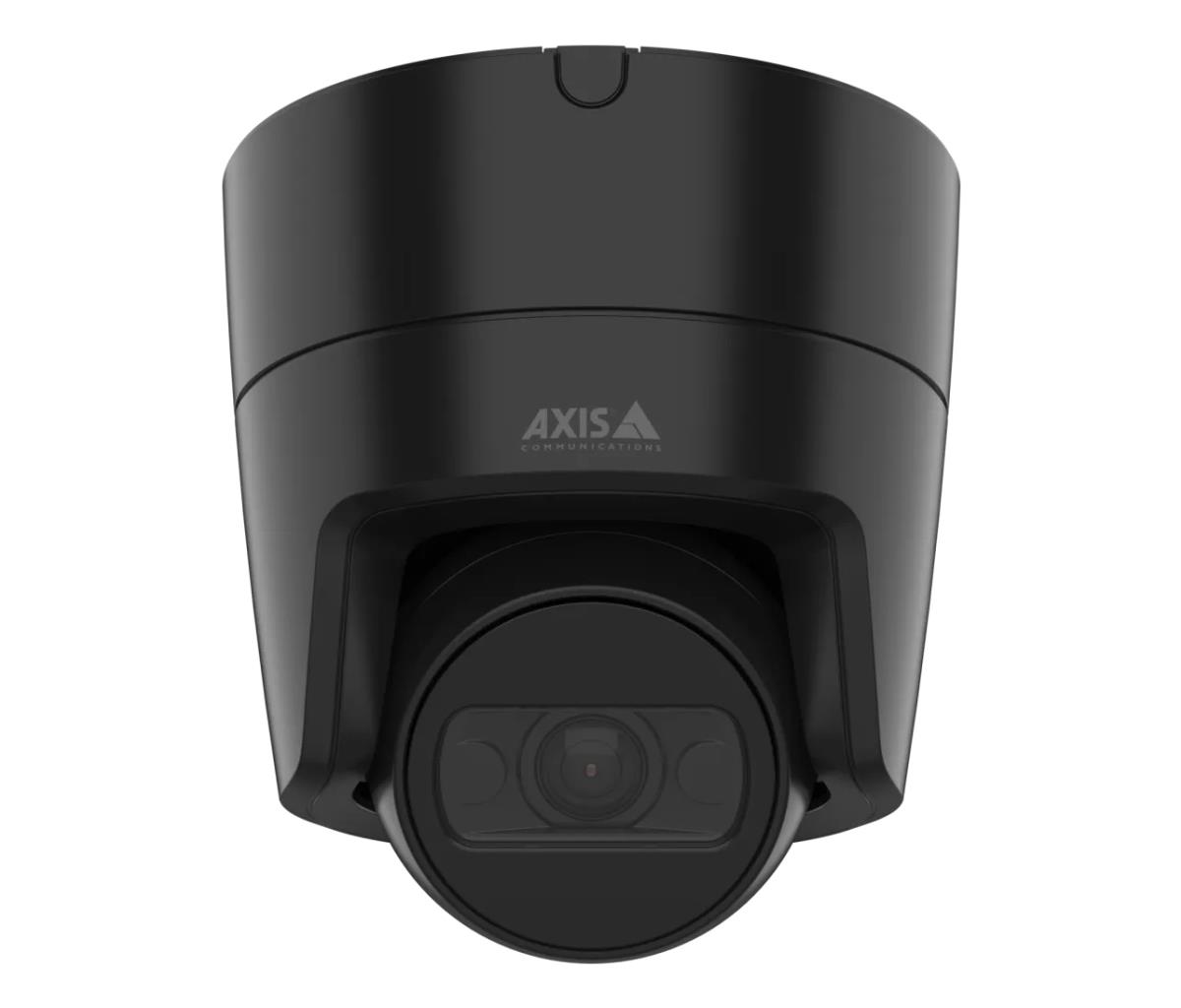

M3128-lve Black Dome Camera
ITCurry #: 13836606 | Article #: 02921-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
This turret-style, AI-powered dome camera delivers great 8 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.
Great image quality
AXIS M3128-LVE offers great 8 MP resolution with 110° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there’s no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene.
Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it’s available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 Class A, KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black |
| Housing material | Plastic |
| Protection features | Impact resistant, Weather resistant |
| International Protection (IP) code | IP66 |
| IK code | IK08 |
| Weatherproof | Yes |
| Camera | |
| Minimum illumination | 0.22 lx |
| Angle of rotation | 95ø |
| Vertical field of view (thermal module) | 60ø |
| Horizontal field of view (thermal module) | 110ø |
| Tilt angle range | 0 - 60ø |
| Pan range | -180 - 180ø |
| Camera pixel size | 1.45 æm |
| Camera shutter speed | 1/71500 - 2 s |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Focal length range | 2.9 mm |
| Normal focusing range | 0.5 m |
| Detect distance (wide) | 80 m |
| Observe distance (wide) | 31.7 m |
| Recognize distance (wide) | 16 m |
| Identify distance (wide) | 8 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC |
| Video compression formats | MPEG, MPEG4 |
| Supported graphics resolutions | 160 x 90, 3840 x 2160 |
| Supported video modes | 1080p |
| Frame rate | 15 fps |
| Video streaming | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, LPCM, PCM |
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP©, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | HTTPS |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 4.3 W |
| Power consumption (max) | 10.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 93 mm |
| Diameter | 10.1 cm |
| Weight | 390 g |
| Sustainability | |
| Compliance certificates | Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Doesn't contain | PVC |
| Warranty | |
| Base Warranty | Non Non |
