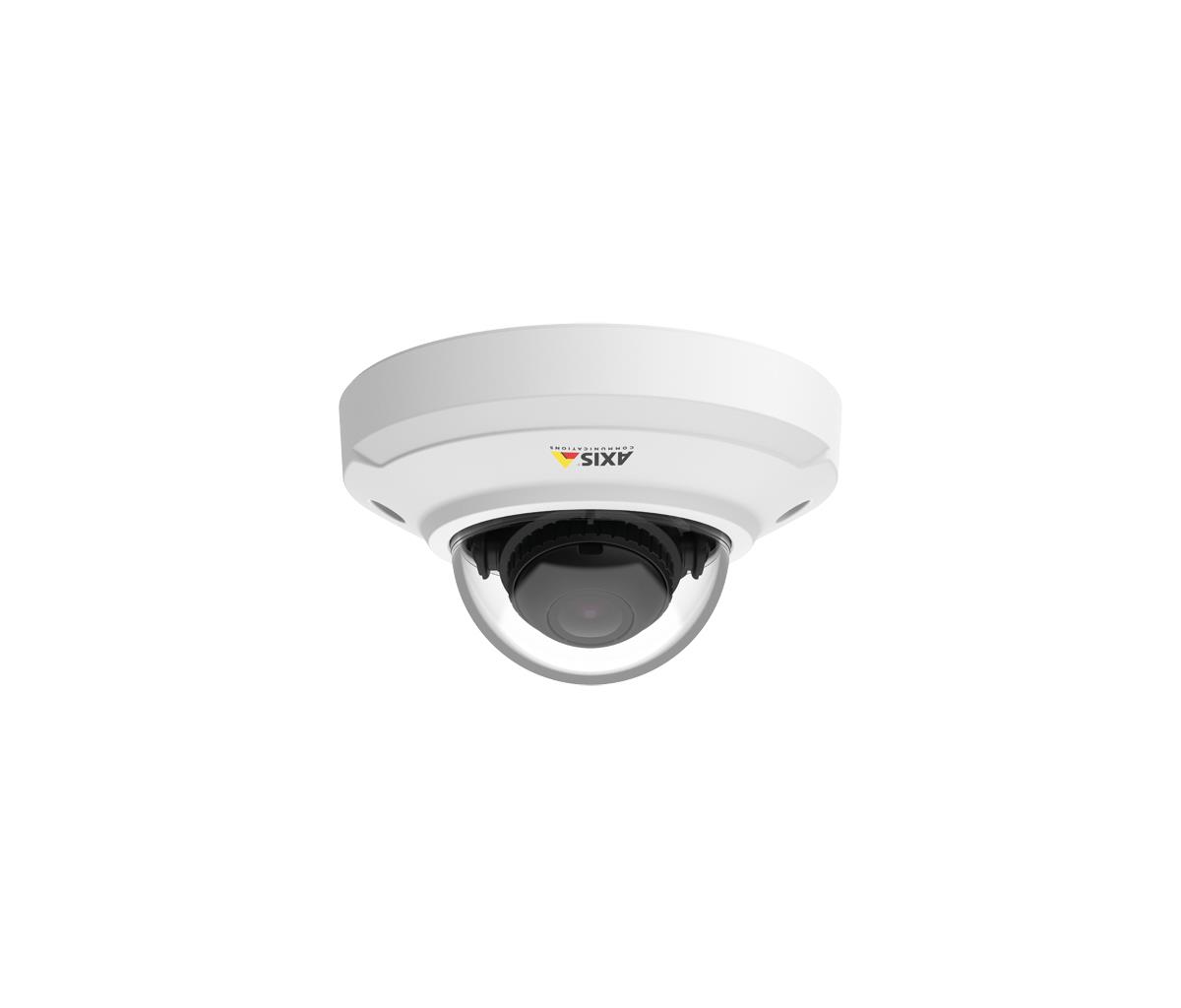

M3044-v Network Camera Hdtv 720p Fixed Mini Dome
ITCurry #: 13834403 | Article #: 0802-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Axis quality at an affordable price
If you want an affordable fixed mini dome surveillance camera that offers excellent video quality, this is it. AXIS M3044-V is perfect for stores, hotels, schools, banks and offices.
AXIS M3044-V gives you sharp HDTV 720p video quality. The camera offers a horizontal field of view of 82°. And it comes with Wide Dynamic Range (WDR) technology for good detail even when light levels vary.
Sharp images. Low bandwidth
Axis’ Zipstream technology reduces storage and bandwidth by up to 50%, while capturing important details in full image quality. Video streams can be encoded in H.264 and Motion JPEG. And for monitoring long, narrow areas, Axis’ Corridor Format provides a portrait-shaped video stream. It maximizes image quality, while eliminating bandwidth and storage waste.

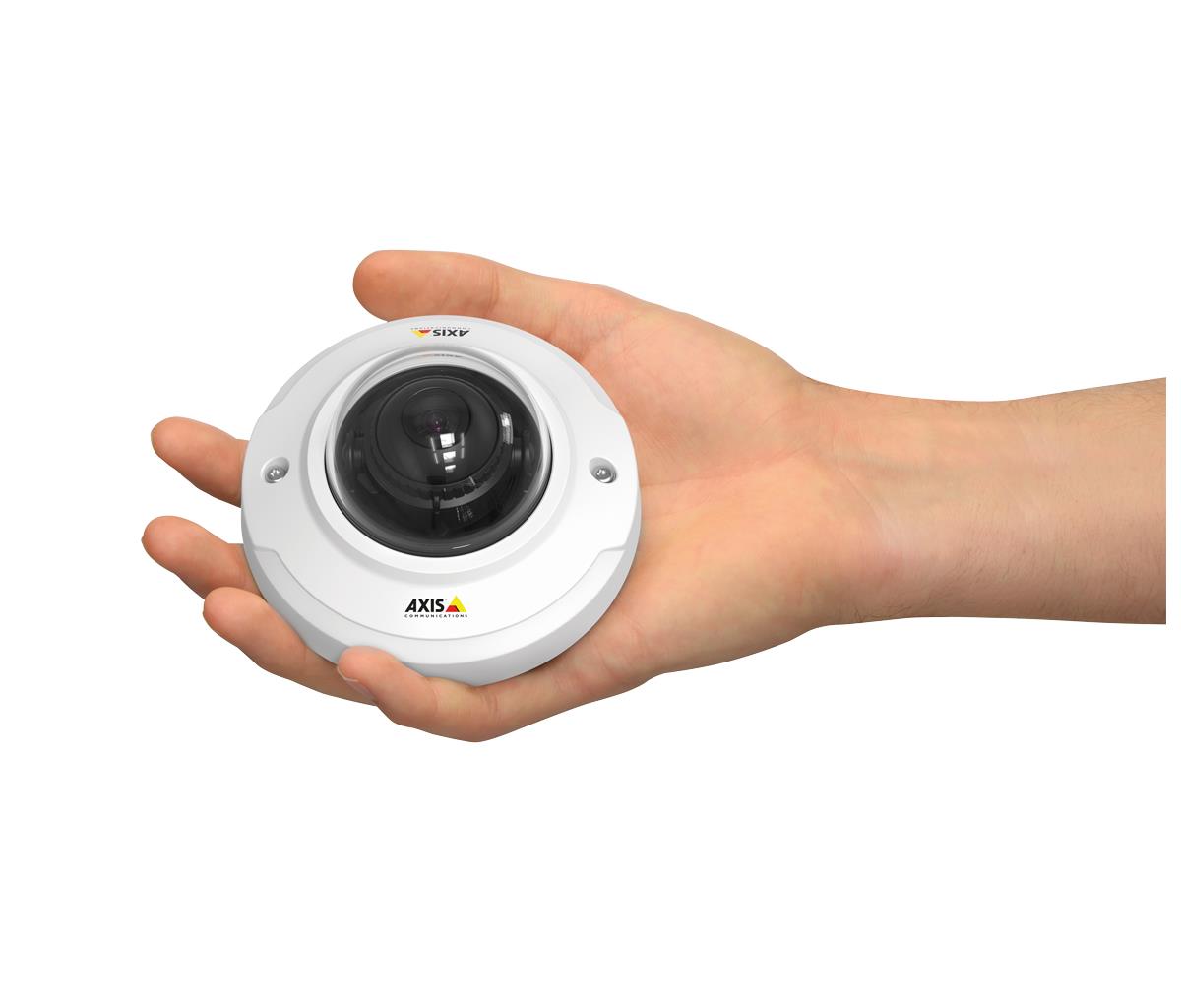

Fits in your hand – fits in anywhere
Small and compact, AXIS M3044-V can be mounted on walls or ceiling as you prefer. And you can easily repaint it to blend in with any environment. A black casing is also available as an accessory.
Installation that’s as easy as 1, 2, 3
To keep implementation costs low, AXIS M3044-V is designed for fast and easy installation. No focusing is required because it comes factory focused. And with its 3-axis camera-angle adjustment, it can be easily leveled and directed in any direction. AXIS M3044-V is also vandal and dust resistant for optimal performance and minimal downtime.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Number of languages | 10 |
| Languages support | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Protection features | Dust resistant |
| International Protection (IP) code | IP42 |
| Camera | |
| Minimum illumination | 0.25 lx |
| Angle of rotation | 352ø |
| Lens viewing angle, horizontal | 82ø |
| Lens viewing angle, vertical | 44ø |
| Tilt angle range | -76 - 76ø |
| Pan range | -177 - 177ø |
| White balance | Auto |
| Camera shutter speed | 1/32500 - 1/5 s |
| Image sensor | |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Focus adjustment | 2.0 |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | No |
| Video | |
| Maximum resolution | 1280 x 720 pixels |
| Total megapixels | 1 MP |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Full HD | No |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | RJ-45 |
| Security | |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| HTTPS encryption | Yes |
| Alert notification type | |
| Motion sensor | Yes |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 2.5 W |
| Power consumption (max) | 2.9 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 15 - 85% |
| Storage relative humidity (H-H) | 15 - 85% |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 101 mm |
| Depth | 101 mm |
| Height | 56 mm |
| Weight | 170 g |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Quick installation guide | Yes |
| Bundled software | AXIS Camera Companion, AXIS Camera Station, Video management software |
| Technical details | |
| Iris | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
