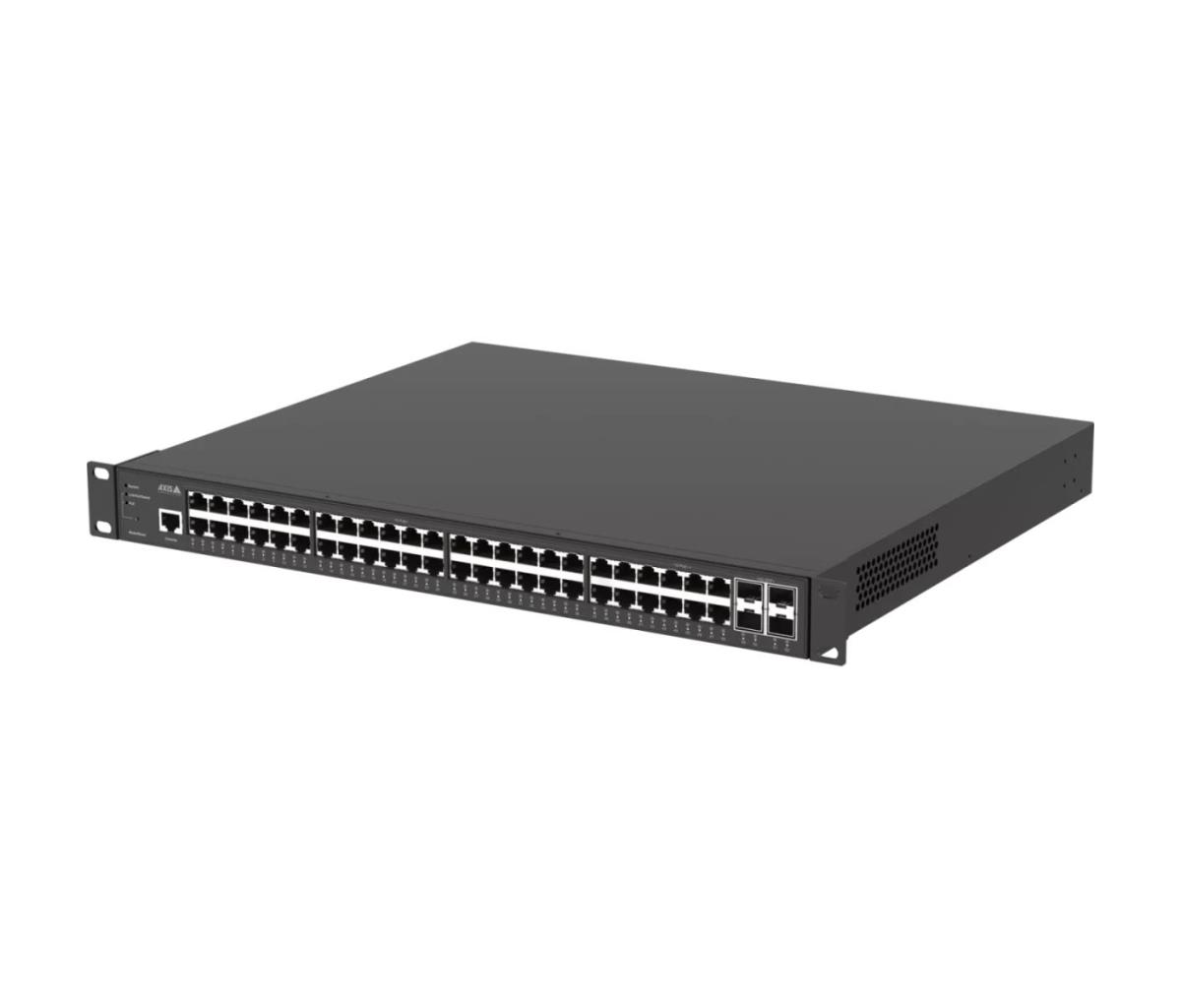

AXIS D8248 Managed PoE++ Switch
This 48 port network switch is optimized for surveillance solutions. With a unique web graphic user interface, it offers a topology for easy overview and management of all devices in the system.
Perfect match for Axis surveillance solutions
AXIS D8248 Managed PoE++ Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S12 Series. It has a total power budget of 740 W, and it is equipped with four additional SFP+ ports, allowing high speed data traffic over long distances. This 48-port switch supports PoE class 4, and eight of these ports offer up to 90 W per port. Additional power can also be added by connecting midspans.
Total overview of your devices
Featuring a unique web user interface, this switch offers a graphic topology for an overview of all devices in the system. With access to all information, statuses, and notifications about your connected devices, you can easily manage all devices, reboot cameras in the system, monitor network traffic, perform cable diagnostics, and much more.
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| Network | |
| Networking standards | IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-LR, 100BASE-T, 1000BASE-T |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 176 Gbit/s |
| Throughput | 130.944 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Security | |
| DHCP features | DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, TLS |
| Loop protection | Yes |
| Password protection | Yes |
| Protocols | |
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnPa, SNMP v1/v2c/v3 , DNS/DNSv6, NTP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-MED, STP, MSTP, RSTP, LACP |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| Power | |
| Power source | AC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power protection features | Surge protection |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 740 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 376 mm |
| Height | 44 mm |
| Weight | 5.62 kg |
| Packaging content | |
| Cables included | AC |
| Sustainability | |
| Doesn't contain | CFR, PVC/BFR |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), ICES, MIC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UL, VCCI, cUL |
| Warranty | |
| Base Warranty | Non Non |
