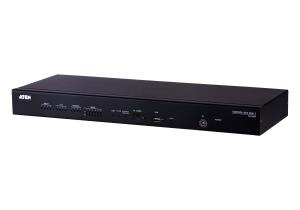

Multi-interface Compact Control Box With 2 App Licenses Gen 2
ITCurry #: 90314115 | Article #: VK1100A-AT-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
VK1100A ATEN’s 2nd-generation Control Box equipped with a quad-core CPU, Gbps LAN, and 512MB memory size, provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. Its LAN can be connected to ATEN Unizon™, a centralized management platform streamlining daily AV / IT management that provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.
The VK1100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK1100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.
VK1100A is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defi ned GUIs from any mobile device, ATEN Keypad, and Touch Panel.
| Features | |
| Processor cores | 4 |
| Product colour | Black |
| Housing material | Metal |
| On/off switch | Yes |
| LED indicators | Yes |
| Reset button | Yes |
| Built-in display | No |
| Heat dissipation | 83 BTU/h |
| Number of relay pins | 8 |
| Memory | |
| Internal memory | 0.512 GB |
| Internal memory type | SDRAM |
| Internal storage capacity | 8 GB |
| Storage media type | Flash |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Supported network protocols | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
| Ports & interfaces | |
| USB port | Yes |
| USB ports quantity | 1 |
| USB port type | USB Type-A |
| RS-232 ports | 2 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Number of analog I/O pins | 3 |
| IR connectivity | Yes |
| DC-in jack | Yes |
| Serial interface type | RS-232, RS-232/422/485 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Power | |
| Power consumption (max) | 4.5 W |
| Power consumption (typical) | 4.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply location | Internal |
| Logistics data | |
| Country of origin | Taiwan |
| Packaging content | |
| Terminal block included | Yes |
| License quantity | 2 license(s) |
| Manual | Yes |
| Power cord included | Yes |
| Technical details | |
| Package volume | 16423.77 cmü |
| Master (outer) case volume | 36528.73 cmü |
| Weight & dimensions | |
| Width | 164.1 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 1.19 kg |
| Packaging data | |
| Package width | 207 mm |
| Package depth | 414 mm |
| Package height | 117 mm |
| Package weight | 1.8 kg |
| Package type | Box |
| Warranty | |
| Base Warranty | Non Non |
