Product Information

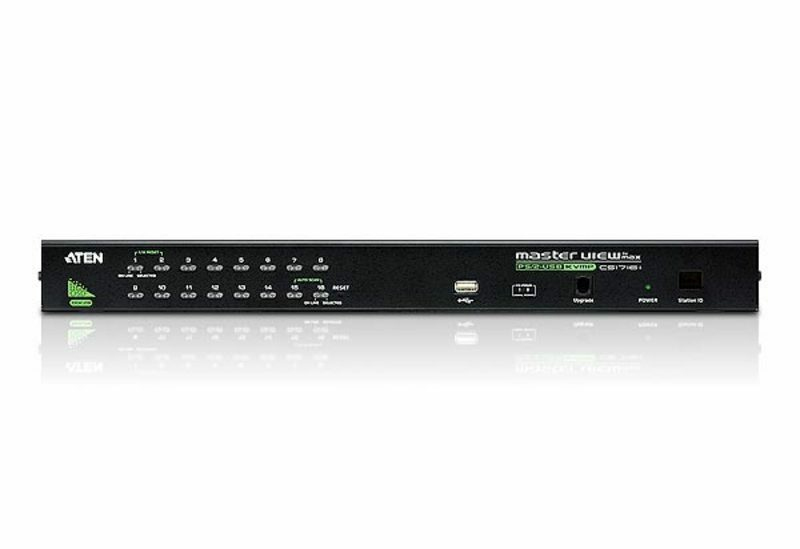

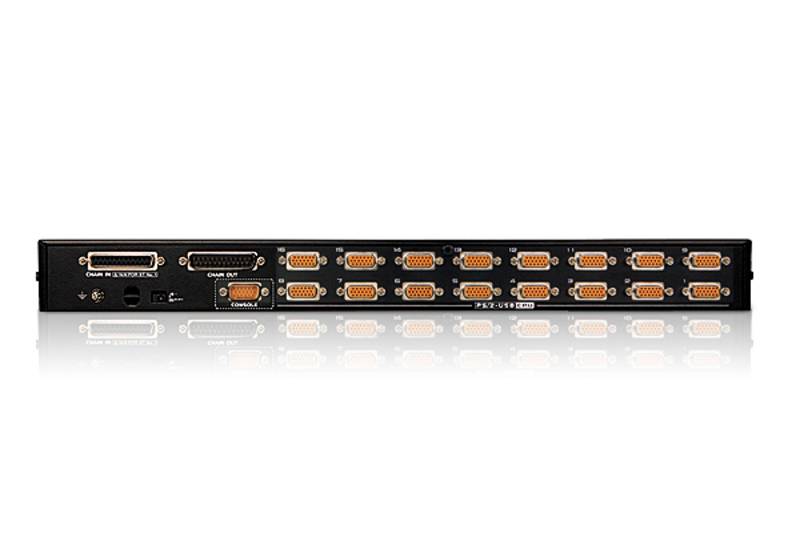

The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
1x KVM Switch with Standard Rack Mounting Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Foot Pad Set(4 PCS)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
| Ports & interfaces | |
| Number of computers controlled | 512 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 17 |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.6 W |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Warranty | |
| Base Warranty | Non Non |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 159.9 mm |
| Height | 44 mm |
| Weight | 3.61 kg |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4 kg |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Master (outer) case net weight | 10.8 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 12.6 kg |
| Products per master (outer) case | 3 pc(s) |
