Hdmi Repeater Plus Audio De-embedder
ITCurry #: 90313145 | Article #: VC880-AT-G
slide 2 of 3
Price:
66.04
Ex VAT
Shipping:
FREE Shipping on orders over 100€ Ex VAT.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information

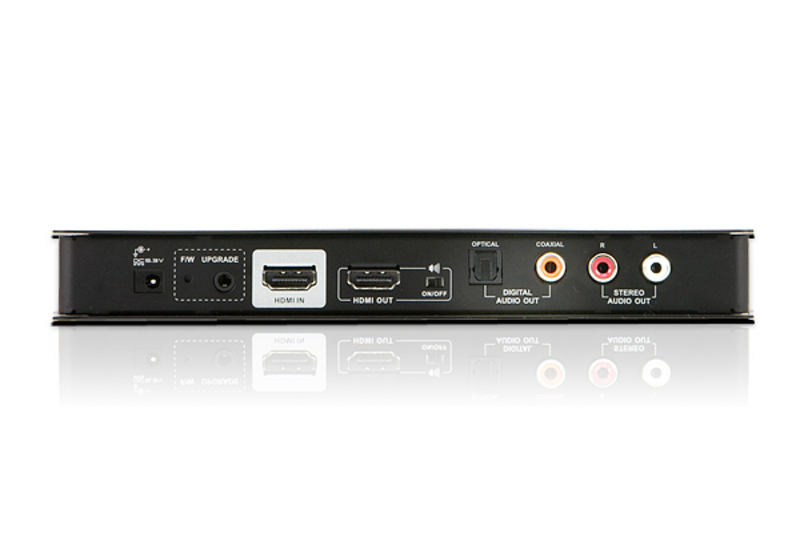

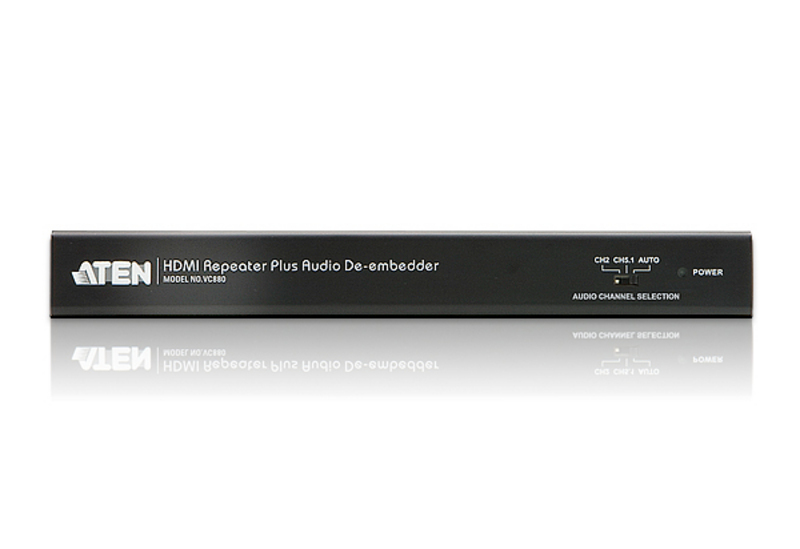

The VC880 is an HDMI Repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, users can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high quality audio output. With support for 3D TV formats, the VC880 is ideal for users who want to enjoy high defi nition video with their choice of high defi nition audio output on TVs, projectors, A/V receivers or speakers.
1x VC880 HDMI Repeater Plus Audio De-embedder
1x 0AD6-1605-09EG Power Adapter
1x User Instructions
| Features | |
| Type | AV repeater |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Impedance | 100 O |
| HDCP version | 1.1 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Digital audio optical out | 1 |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage | 5.3 V |
| Power consumption (typical) | 2.25 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 82 mm |
| Height | 25 mm |
| Weight | 520 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 700 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 14.7 kg |
| Master (outer) case net weight | 10.4 kg |
| Products per master (outer) case | 20 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
