Control System 8-channel Relay Expansion Box
ITCurry #: 90313748 | Article #: VK248-ATFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
488.70
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

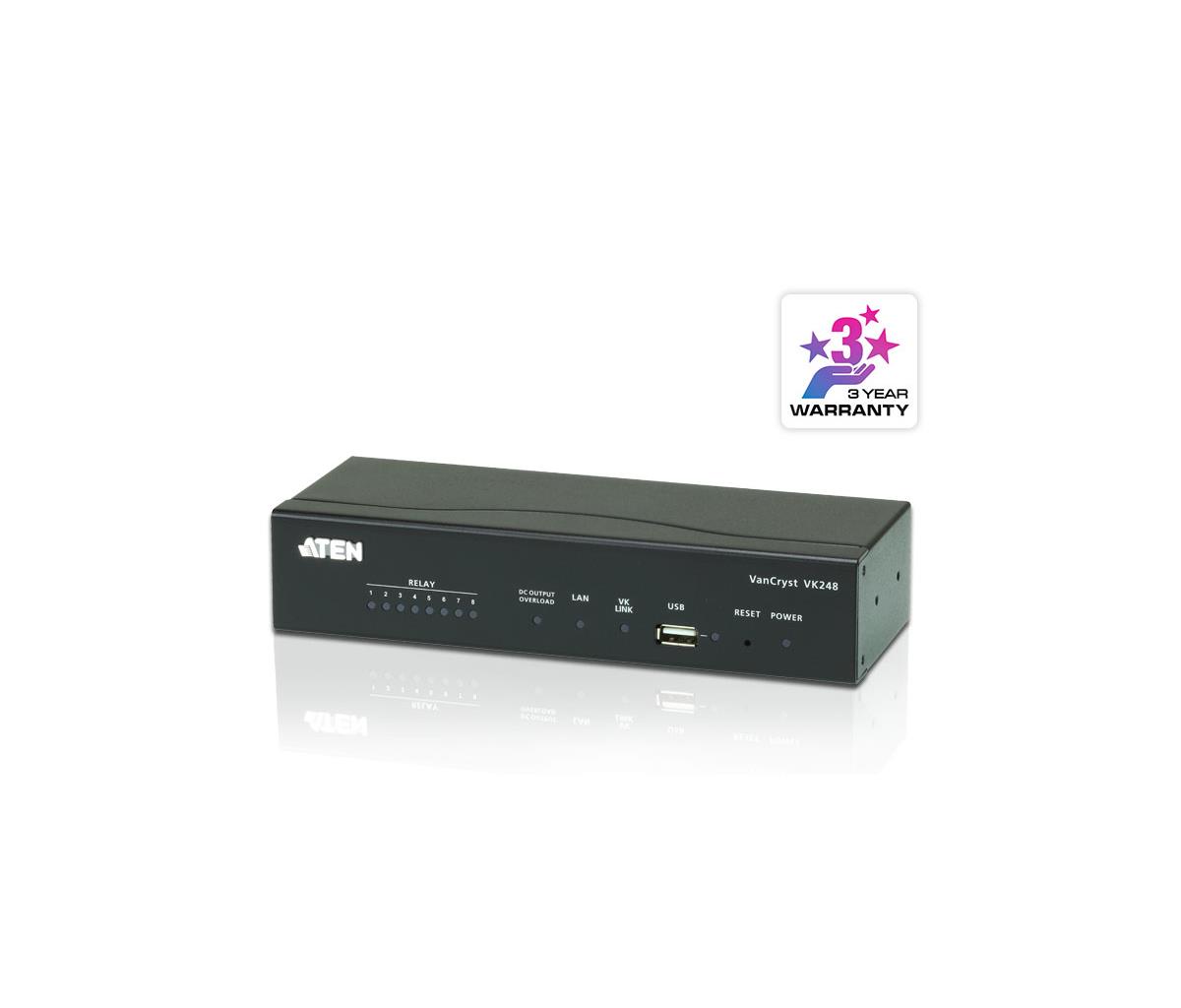

The VK248 8-Channel Relay Expansion Box provides an additional eight channels of relay output for a flexible expansion of the ATEN Control System. This allows users to control additional devices such as screen, projector lifts and blinds in environments where more devices are required. With the advantage of an Ethernet-based connection, the expansion box easily connects to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
1x VK248 8-Channel Relay Expansion Box
1x Mounting Kit
9x Terminal Blocks
1x User Instructions
| Features | |
| Channels quantity | 8 channels |
| Channel type | Relay channel |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
| Product colour | Black |
| Power | |
| Power consumption | 300 mA |
| Power consumption note | DC5V:2.82W:24BTU, DC48V:3.53W:27BTU |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Width | 75.8 mm |
| Depth | 200 mm |
| Height | 42 mm |
| Weight | 740 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 900 g |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.85 kg |
| Master (outer) case net weight | 3.7 kg |
| Warranty | |
| Base Warranty | Non Non |
